SCCA-LAN – Sun Hydraulics Direct-acting sequence valve with reverse flow check

Q: Is SCCALAN the same as SCCA-LAN?

Yes. Sun Hydraulics writes this part number as SCCALAN. It is the model SCCA followed by the configuration code; hyphens, slashes and spaces are only dividers, so SCCALAN, SCCA-LAN, SCCA LAN all refer to the same product.

Brand: Sun Hydraulics
SKU: SCCA

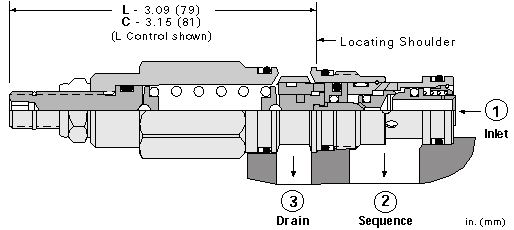

SCCA-LAN Sun Hydraulics Sequence Valve – installation dimensions drawing, cavity T-11A

SCCA-LAN Sun Hydraulics Sequence Valve – hydraulic schematic symbol

Roll over image to zoom in

Part number: SCCALAN · SCCA-LAN · SCCA LAN

Brand Sun HydraulicsType SequenceCapacity 15 gpm (60 L/min.)Cavity T-11A

Direct-acting sequence valve with reverse flow check. Cavity T-11A, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

SKU: SCCA Category: Sequence Brand: Sun Hydraulics

SCCA-LAN overview

SCCALAN (SCCA-LAN, SCCA LAN) is a Sun Hydraulics Sun Hydraulics Direct-acting sequence valve with reverse flow check, rated 15 gpm (60 L/min.) and installed in cavity T-11A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

SCCALAN/AP	Stainless Steel, PassivatedStainless Steel, Passivated
SCCALAN/LH	Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel
SCCALAN	Standard Material/CoatingStandard Material/Coating

Specifications

Cavity	T-11A
Series	1
Capacity	15 gpm (60 L/min.)
Maximum Operating Pressure	5000 psi (350 bar)
Factory Pressure Settings Established at	2 in³/min. (30 cc/min.)
Maximum Valve Leakage at Reseat	10 drops/min. (0,7 cc/min.)
Check Cracking Pressure	40 psi (2,8 bar)
Response Time - Typical	2 ms
Adjustment - No. of CW Turns from Min. to Max. setting	5
Valve Hex Size	7/8 in. (22,2 mm)
Valve Installation Torque	30 - 35 lbf ft (41 - 47 Nm)
Adjustment Screw Internal Hex Size	5/32 in. (4 mm)
Locknut Hex Size	9/16 in. (15 mm)
Locknut Torque	80 - 90 lbf in. (9 - 10 Nm)
Model Weight	.30 lb (0,15 kg)
Seal kit - Cartridge	Viton: 990011006

How to read SCCALAN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so SCCALAN, SCCA-LAN, SCCA LAN are the same part.

Model	SCCA — Sun Hydraulics Direct-acting sequence valve with reverse flow check
Control	L — Standard Screw Adjustment
Adjustment Range	A — 500 - 3000 psi (35 - 210 bar), 1000 psi (70 bar) Standard Setting
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

L — Standard Screw Adjustment
C — Tamper Resistant - Factory Set
K — Handknob

Adjustment Range options

A — 500 - 3000 psi (35 - 210 bar), 1000 psi (70 bar) Standard Setting
W — 800 - 4500 psi (55 - 315 bar), 1000 psi (70 bar) Standard Setting
B — 300 - 1500 psi (20 - 105 bar), 1000 psi (70 bar) Standard Setting
C — 2000 - 6000 psi (140 - 420 bar), 2000 psi (140 bar) Standard Setting
D — 200 - 800 psi (14 - 55 bar), 400 psi (28 bar) Standard Setting
E — 100 - 400 psi (7 - 28 bar), 200 psi (14 bar) Standard Setting

Seal Material options

N — Buna-N
L — Extended Temp. Buna
V — Viton
E — EPDM

Material/coating options

/AP — Stainless Steel, Passivated
/LH — Mild Steel, Zinc-Nickel
— Standard Material/Coating

Manifold & standard assemblies

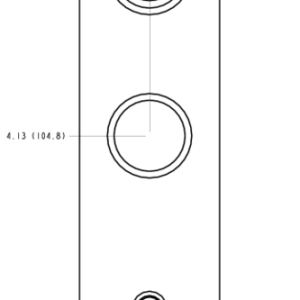

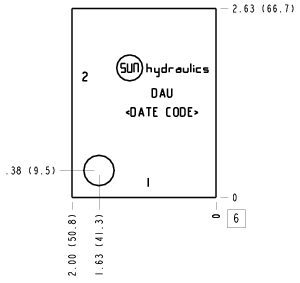

Sun manifolds for cavity T-11A (583)

View all 583 →

Technical features

All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
Suitable for use in load holding applications.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

SCCA-LAN Sun Hydraulics Sequence Valve – performance curve (pressure drop vs flow) — performance curve (pressure drop vs flow)

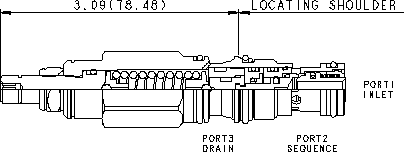

SCCALAN Sun Hydraulics Sequence Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (SCCA-SCCALAN) (PDF 58 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is SCCALAN the same as SCCA-LAN?

Yes. Sun Hydraulics writes this part number as SCCALAN. It is the model SCCA followed by the configuration code; hyphens, slashes and spaces are only dividers, so SCCALAN, SCCA-LAN, SCCA LAN all refer to the same product.

Do you supply SCCALAN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including SCCALAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What does Sun mean by the term sequencing?

A sequence valve opens when the pressure at port 1 exceeds the setting of the valve. When pressures at port 1 and port 2 both exceed the setting of the valve the valve goes full open, or sequences. When this happens flow can go in either direction, just so long as port 1 stays above the setting.

What are the tolerances on pressure settings for Sun's pressure control valves?

Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
