RSFE-ABN – Sun Hydraulics Air-controlled, pilot-operated, balanced piston sequence valve
Roll over image to zoom in
Part number: RSFEABN · RSFE-ABN · RSFE ABN
Air-controlled, pilot-operated, balanced piston sequence valve. Cavity T-2A, capacity 30 gpm (120 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
RSFE-ABN overview
RSFEABN (RSFE-ABN, RSFE ABN) is a Sun Hydraulics Sun Hydraulics Air-controlled, pilot-operated, balanced piston sequence valve, rated 30 gpm (120 L/min.) and installed in cavity T-2A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| RSFEABN | Buna-N sealsBuna-N |
|---|---|
| RSFEABV | Viton sealsViton |
Specifications
| Cavity | T-2A |
|---|---|
| Series | 2 |
| Capacity | 30 gpm (120 L/min.) |
| Maximum Operating Pressure | 2000 psi (140 bar) |
| Pilot Ratio | 20:1 |
| Factory Pressure Settings Established at | 4 gpm (15 L/min.) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min. (50 cc/min.) |
| Maximum Air Pressure | 150 psi (10,5 bar) |
| Response Time - Typical | 10 ms |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Model Weight | .60 lb (0,30 kg) |
| Seal kit - Cartridge | Viton: 990202006 |
How to read RSFEABN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so RSFEABN, RSFE-ABN, RSFE ABN are the same part.
| Model | RSFE — Sun Hydraulics Air-controlled, pilot-operated, balanced piston sequence valve |
|---|---|
| Control | A — External 1/4 NPTF Port |
| Adjustment Range | B — 50 - 1500 psi (3,5 - 105 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- A — External 1/4 NPTF Port
Adjustment Range options
- B — 50 - 1500 psi (3,5 - 105 bar)
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-2A (544)
- 3BC Sun Hydraulics Cushion lock with shuttle Line mount manifoldRSFEABN-3BC — request assembly
- 3BD Sun Hydraulics Cushion lock with shuttle Line mount manifoldRSFEABN-3BD — request assembly
- 3BK Sun Hydraulics Cushion lock with shuttle Line mount manifoldRSFEABN-3BK — request assembly
- 3BL Sun Hydraulics Cushion lock with shuttle Line mount manifoldRSFEABN-3BL — request assembly
- 3BV Sun Hydraulics Cushion lock with shuttle Line mount manifoldRSFEABN-3BV — request assembly
- 3BW Sun Hydraulics Cushion lock with shuttle Line mount manifoldRSFEABN-3BW — request assembly
- 4BC Sun Hydraulics Cushion lock with make up checks Line mount manifoldRSFEABN-4BC — request assembly
- 4BD Sun Hydraulics Cushion lock with make up checks Line mount manifoldRSFEABN-4BD — request assembly
- 4BK Sun Hydraulics Cushion lock with make up checks Line mount manifoldRSFEABN-4BK — request assembly
- 4BL Sun Hydraulics Cushion lock with make up checks Line mount manifoldRSFEABN-4BL — request assembly
- 4BV Sun Hydraulics Cushion lock with make up checks Line mount manifoldRSFEABN-4BV — request assembly
- 4BW Sun Hydraulics Cushion lock with make up checks Line mount manifoldRSFEABN-4BW — request assembly
Technical features
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- Maximum air pilot pressure should not exceed 150 psi (10,5 bar).
- Pressure at port 3 (drain) determines the minimum valve setting and should not exceed 1000 psi (70 bar).
- Capable of providing explosion proof remote control of the pressure setting, the hydraulic setting is directly porportional to the air setting at a ratio of 20:1 (hydraulic:air).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

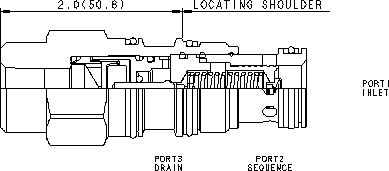

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_Sequence-New (PDF 493 KB)
CAD files
Frequently asked questions
Is RSFEABN the same as RSFE-ABN?
Yes. Sun Hydraulics writes this part number as RSFEABN. It is the model RSFE followed by the configuration code; hyphens, slashes and spaces are only dividers, so RSFEABN, RSFE-ABN, RSFE ABN all refer to the same product.
Do you supply RSFEABN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including RSFEABN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What does Sun mean by the term sequencing?
A sequence valve opens when the pressure at port 1 exceeds the setting of the valve. When pressures at port 1 and port 2 both exceed the setting of the valve the valve goes full open, or sequences. When this happens flow can go in either direction, just so long as port 1 stays above the setting.
What are the tolerances on pressure settings for Sun's pressure control valves?
Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
