OP INSERT 08 PSM
Roll over image to zoom in

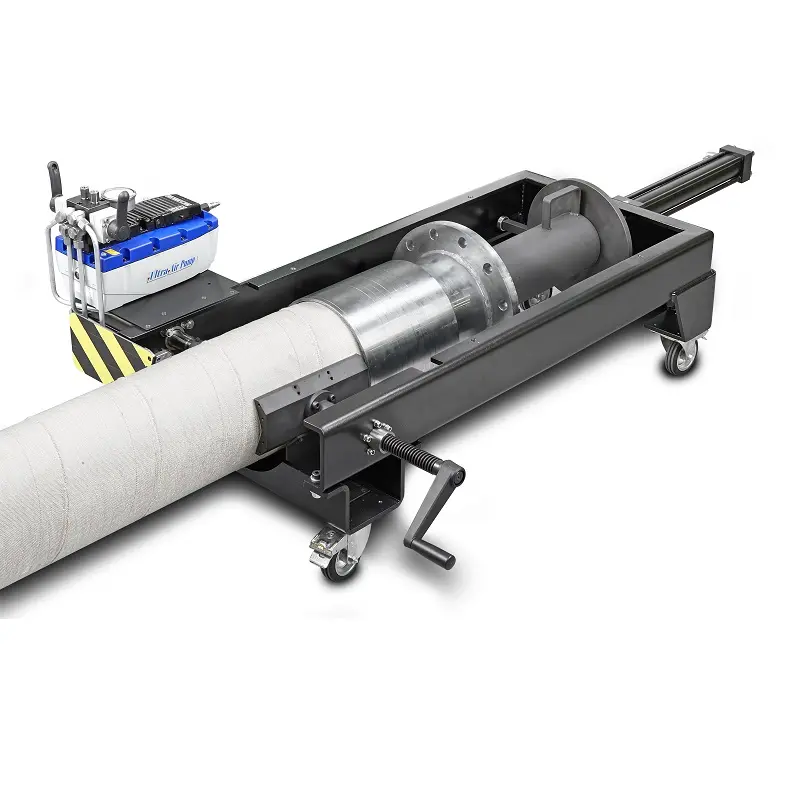

INSERT 08 PSM is an pneumo-hydraulic equipment designed to achieve a perfect fittings preassembling on hoses (up to 8” in diameter) before crimping. Product specifications could be modified…
INSERT-08-PSM overview
INSERT 08 PSM is an pneumo-hydraulic equipment designed to achieve a perfect fittings preassembling on hoses (up to 8'' in diameter) before crimping. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| CAPACITY | 8'' |
|---|---|
| PUSH FORCE | 4000 kg (8818 Lbs) |
| POWER SUPPLY | 7 bar (100 Psi) |
| WEIGHT | 135 kg (298 Lbs) |
| DIMENSIONS L x W x H | 1124x1770x624 mm (44.2''x69.6''x24.5'') |
| MAXIMUM FLANGE SIZE | 425 mm (16.7'') |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/insert-08-psm
