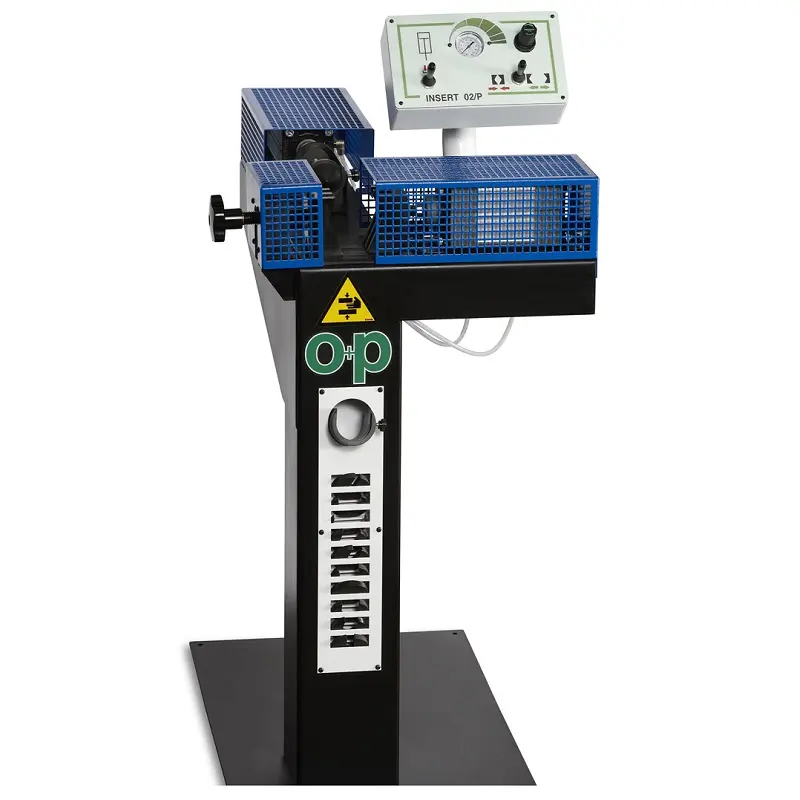

OP INSERT 02/P
Roll over image to zoom in
Insert 02/P is designed to achieve a perfect fitting preassembling on hoses (up to 2″ in diameter) before crimping. MAIN FEATURES: – pneumatic pump; – cylinder stroke pressure…
INSERT-02P overview
Insert 02/P is designed to achieve a perfect fitting preassembling on hoses (up to 2" in diameter) before crimping. MAIN FEATURES: - pneumatic pump; - cylinder stroke pressure adjustment; - manual cycle. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| CAPACITY | 2'' |
|---|---|
| PNEUMATIC POWER | MAX 7 BAR (100 psi) |
| WEIGHT | 97 KG (214 Lbs) |
| DIMENSIONS L x W x H | 655x1025x1285 mm (25.7''x40.3''x50.5'') |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/insert-02p
