NMC – Sun Hydraulics Ninety degree Line mount manifold
Part number: NMC · NMC/10 · NMC/11 · NMC/S · NMC/S3 · NMC/S4 · NMC/S5
Ninety degree Line mount manifold, cavity T-32A, 1/2″ NPTF ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
NMC overview
NMC (NMC/10, NMC/11, NMC/S, NMC/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-32A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| NMC | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| NMC/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| NMC/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| NMC/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| NMC/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| NMC/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| NMC/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-32A |
| Port Size | 1/2" NPTF |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read NMC
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NMC, NMC/10, NMC/11, NMC/S, NMC/S3, NMC/S4, NMC/S5 are the same part.
| Model | NMC — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. NMC/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-32A (16)
- DSDDXEN Sun Hydraulics Low side, 3-position, hot oil shuttle valve with delayed shiftDSDDXEN-NMC — request assembly
- DSEHXHN Sun Hydraulics Low side, 3-position, hot oil shuttle valveDSEHXHN-NMC — request assembly
- DSEOXEN Sun Hydraulics Spring offset, 2-position, high side shuttle valveDSEOXEN-NMC — request assembly
- DSESXGN Sun Hydraulics High side, 3-position, shuttle valveDSESXGN-NMC — request assembly
- DSEXXEN Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally closedDSEXXEN-NMC — request assembly
- DSEYXEN Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally openDSEYXEN-NMC — request assembly
- FSDAXAN Sun Hydraulics Closed center, flow divider-combiner valveFSDAXAN-NMC — request assembly
- FSDCXAN Sun Hydraulics High accuracy flow divider valveFSDCXAN-NMC — request assembly
- FSDDXAN Sun Hydraulics Flow divider valveFSDDXAN-NMC — request assembly
- FSDGXAN Sun Hydraulics High accuracy, closed center, flow divider-combiner valveFSDGXAN-NMC — request assembly
- FSDHXAN Sun Hydraulics High capacity, closed center, flow divider-combiner valveFSDHXAN-NMC — request assembly
- FSDRXAN Sun Hydraulics High accuracy synchronizing, flow divider-combiner valveFSDRXAN-NMC — request assembly
Ports
Modifiers Ports NMC, /10, /11 All Ports: 1/2" NPTF;

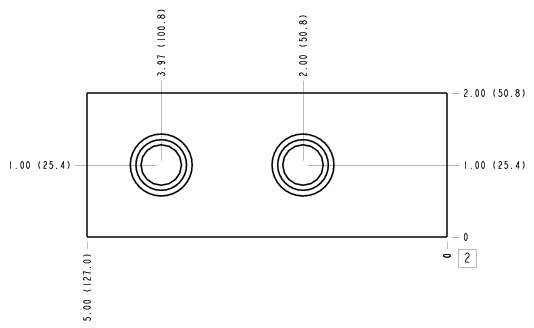

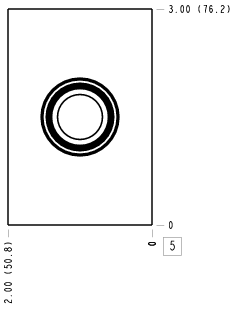

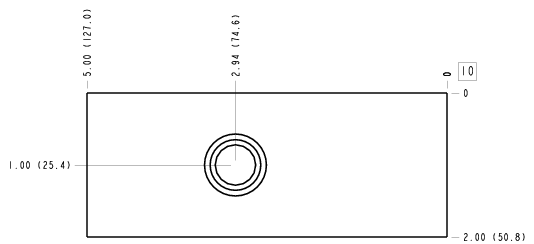

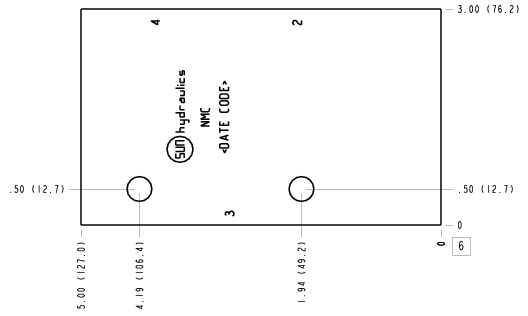

Drawings, symbol & performance curves
