DSEX-XEN – Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally closed
Part number: DSEXXEN · DSEX-XEN · DSEX XEN
3-way, 2-position, vent-to-shift diverter valve, normally closed. Cavity T-32A, capacity 30 gpm (120 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DSEX-XEN overview
DSEXXEN (DSEX-XEN, DSEX XEN) is a Sun Hydraulics Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally closed, rated 30 gpm (120 L/min.) and installed in cavity T-32A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DSEXXEN | Buna-N sealsBuna-N |
|---|---|
| DSEXXEV | Viton sealsViton |
Specifications
| Cavity | T-32A |
|---|---|
| Series | 2 |
| Capacity | 30 gpm (120 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Nominal Vent Flow | 23 in³/min. (0,38 L/min.) |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Model Weight | .70 lb (0,30 kg) |
| Seal kit - Cartridge | Viton: 990032006 |
How to read DSEXXEN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DSEXXEN, DSEX-XEN, DSEX XEN are the same part.
| Model | DSEX — Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally closed |
|---|---|
| Control | X — Not Adjustable |
| Minimum Control Pressure | E — 75 psi (5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Minimum Control Pressure options
- C — 30 psi (2 bar)
- D — 50 psi (3,5 bar)
- E — 75 psi (5 bar)
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-32A (19)
- NMB Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMB — request assembly
- NMC Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMC — request assembly
- NMD Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMD — request assembly
- NMJ Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMJ — request assembly
- NMK Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMK — request assembly
- NML Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NML — request assembly
- NMU Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMU — request assembly
- NMV Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMV — request assembly
- NMW Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NMW — request assembly
- NNB Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NNB — request assembly
- NNC Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NNC — request assembly
- NND Sun Hydraulics Ninety degree Line mount manifoldDSEXXEN-NND — request assembly
Technical features
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Vent flow out of port 1 is pressure compensated and is listed in Technical Data.
- There must be a pressure source at port 3, relative to port 1, to shift the valve.
- One application of this valve is to bypass divider/combiner valves in a limited-slip tractive circuit. Closed, the oil must go through the divider/combiner valves. Open, there is a large path around the divider/combiner valves for efficient high speed operation.
- One pilot valve may be used to vent multiple diverter valves if blocking checks are used at port 1 of each diverter. If blocking checks are not used there will be interaction between high and low pressure legs of the circuit.
- The vent-to-shift function is self cleaning and therefore insensitive to contamination.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating-style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

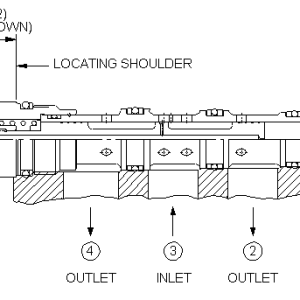

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is DSEXXEN the same as DSEX-XEN?
Yes. Sun Hydraulics writes this part number as DSEXXEN. It is the model DSEX followed by the configuration code; hyphens, slashes and spaces are only dividers, so DSEXXEN, DSEX-XEN, DSEX XEN all refer to the same product.
Do you supply DSEXXEN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DSEXXEN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
