NEM 6F301…05 – Flow Control Valve
Roll over image to zoom in

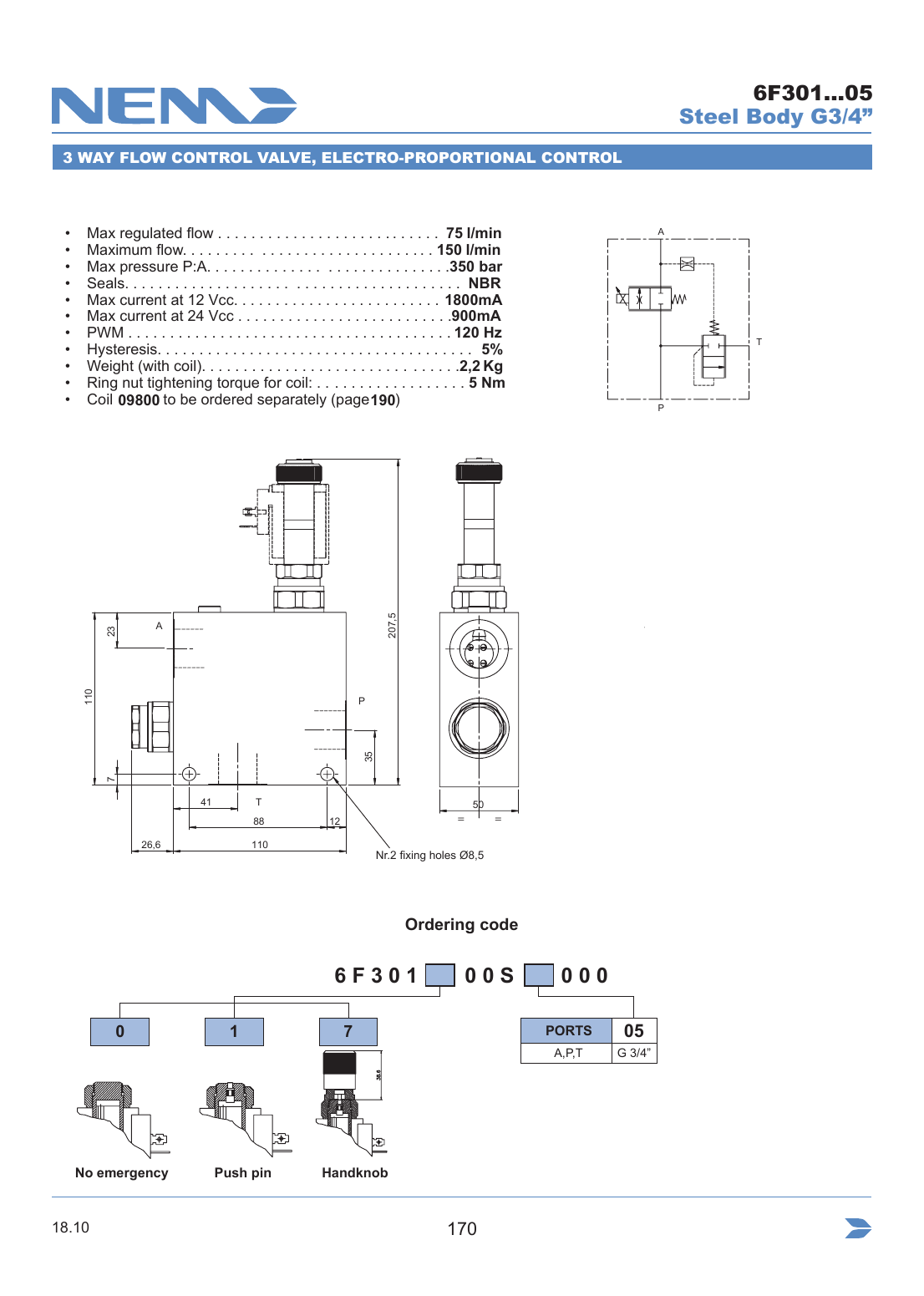

Flow Control Valve, NEM model 6F301…05 — Steel Body G3/4”.
NEM-6F301...05 overview
Flow Control Valve, NEM model 6F301...05 — Steel Body G3/4”.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Flow Control Valve |
|---|---|
| Mounting | Steel Body G3/4” |
| Max regulated flow | 75 l/min A |
| Maximum flow | 150 l/min |
| Max pressure P:A | 350 bar |
| Seals | NBR |
| Max current at 12 Vcc | 1800mA |
| Max current at 24 Vcc | 900mA |
| PWM | 120 Hz |
| Hysteresis | 5% |
| Weight (with coil) | 2,2 Kg |
| Ring nut tightening torque for coil: | 5 Nm |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_partsInBody.pdf
