NEM 0823.0 – Flow Divider And Combiner Valve
Roll over image to zoom in
Flow Divider And Combiner Valve, NEM model 0823.0 — Cartridge SAE 10. Flow up to 40 l/min. Max working pressure 350 bar.
NEM-0823.0 overview
Flow Divider And Combiner Valve, NEM model 0823.0 — Cartridge SAE 10. Flow up to 40 l/min. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Flow Divider And Combiner Valve |
|---|---|
| Mounting | Cartridge SAE 10 |
| Flow | 40 l/min |
| Max working pressure | 350 bar |
| Seals | NBR and PTFE |
| Division ratio | 50% ÷ 50% |
| Accurancy | < +/-5% |
| Cartridge tightening torque | 40 Nm |
| Weight | 0,15 Kg |
| Cavity | C430000 page 226 |
| Body | 171322 page 195 |

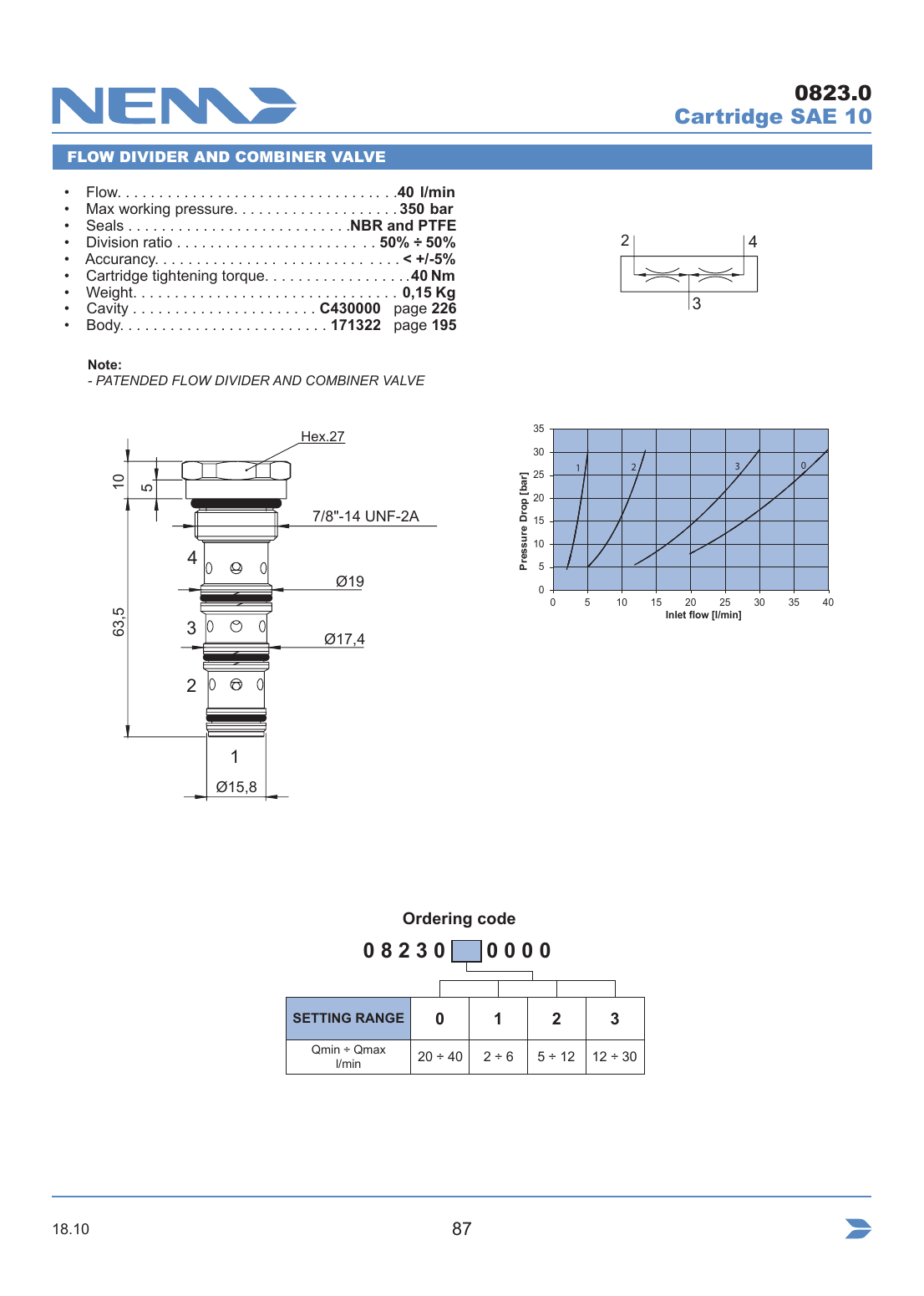

Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
