NEM 0483.41…3 – Fixed Setting Directional Valve
Roll over image to zoom in
Fixed Setting Directional Valve, NEM model 0483.41…3 — Cartridge SAE 10/4.
NEM-0483.41...3 overview

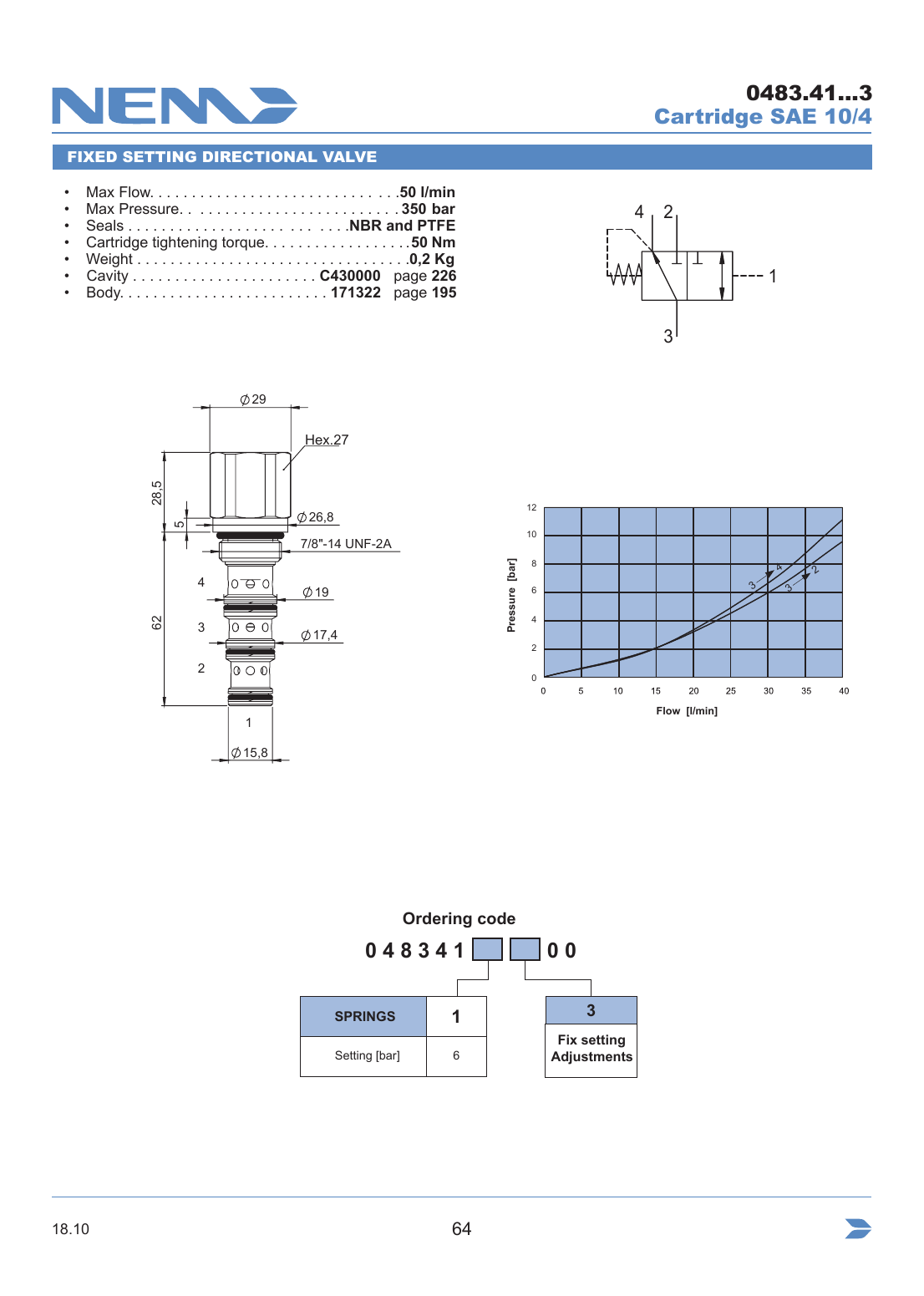

Fixed Setting Directional Valve, NEM model 0483.41...3 — Cartridge SAE 10/4.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Fixed Setting Directional Valve |
|---|---|
| Mounting | Cartridge SAE 10/4 |
| Max Flow | 50 l/min |
| Max Pressure | 350 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 50 Nm |
| Weight | 0,2 Kg |
| Cavity | C430000 page 226 |
| Body | 171322 page 195 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
