NFDC-LAN – Sun Hydraulics Fully adjustable needle valve

Q: Is NFDCLAN the same as NFDC-LAN?

Yes. Sun Hydraulics writes this part number as NFDCLAN. It is the model NFDC followed by the configuration code; hyphens, slashes and spaces are only dividers, so NFDCLAN, NFDC-LAN, NFDC LAN all refer to the same product.

Brand: Sun Hydraulics
SKU: NFDC

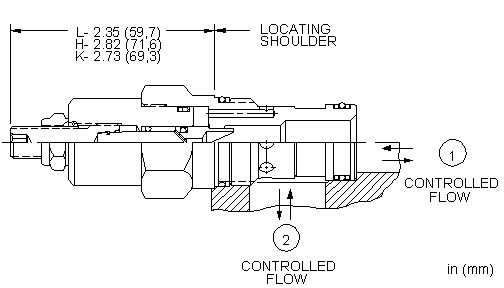

NFDC-LAN Sun Hydraulics Needle Valve – installation dimensions drawing, cavity T-5A

Roll over image to zoom in

Part number: NFDCLAN · NFDC-LAN · NFDC LAN

Brand Sun HydraulicsType NeedleCapacity 12 gpm (.25 inch) (45 L/min. (6,4 mm))Cavity T-5A

Fully adjustable needle valve. Cavity T-5A, capacity 12 gpm (.25 inch) (45 L/min. (6,4 mm)). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

SKU: NFDC Category: Needle Brand: Sun Hydraulics

NFDC-LAN overview

NFDCLAN (NFDC-LAN, NFDC LAN) is a Sun Hydraulics Sun Hydraulics Fully adjustable needle valve, rated 12 gpm (.25 inch) (45 L/min. (6,4 mm)) and installed in cavity T-5A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

NFDCLAN/AP	Stainless Steel, PassivatedStainless Steel, Passivated
NFDCLAN/LH	Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel
NFDCLAN	Standard Material/CoatingStandard Material/Coating

Specifications

Cavity	T-5A
Series	2
Capacity	12 gpm (.25 inch) (45 L/min. (6,4 mm))
Maximum Operating Pressure	5000 psi (350 bar)
Adjustment - No. of CCW Turns from Fully Closed to Fully Open	5
Valve Hex Size	1 1/8 in. (28,6 mm)
Valve Installation Torque	45 - 50 lbf ft (61 - 68 Nm)
Adjustment Screw Internal Hex Size	5/32 in. (4 mm)
Locknut Hex Size	9/16 in. (15 mm)
Locknut Torque	80 - 90 lbf in. (9 - 10 Nm)
Model Weight	.60 lb (0,30 kg)
Seal kit - Cartridge	Viton: 990203006

For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.

How to read NFDCLAN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NFDCLAN, NFDC-LAN, NFDC LAN are the same part.

Model	NFDC — Sun Hydraulics Fully adjustable needle valve
Control	L — Standard Screw Adjustment
Maximum Orifice Diameter	A — .25 in. (6,4 mm)
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

L — Standard Screw Adjustment
H — Calibrated Handknob with Detent Lock
K — Handknob
Y — Tri-Grip Handknob
O — Handknob with Panel Mount

Maximum Orifice Diameter options

A — .25 in. (6,4 mm)
B — .12 in. (3,0 mm)

Seal Material options

N — Buna-N
V — Viton
E — EPDM

Material/coating options

/AP — Stainless Steel, Passivated
/LH — Mild Steel, Zinc-Nickel
— Standard Material/Coating

Manifold & standard assemblies

Sun manifolds for cavity T-5A (106)

View all 106 →

Technical features

All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
There is no leakage when the adjustment mechanism is turned to the shut-off position.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.

Drawings, symbol & performance curves

hydraulic schematic symbol

NFDC-LAN Sun Hydraulics Needle Valve – performance curve (pressure drop vs flow) — performance curve (pressure drop vs flow)

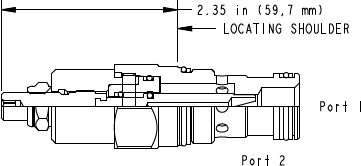

NFDCLAN Sun Hydraulics Needle Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (NFDC-NFDCLAN) (PDF 53 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is NFDCLAN the same as NFDC-LAN?

Yes. Sun Hydraulics writes this part number as NFDCLAN. It is the model NFDC followed by the configuration code; hyphens, slashes and spaces are only dividers, so NFDCLAN, NFDC-LAN, NFDC LAN all refer to the same product.

Do you supply NFDCLAN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NFDCLAN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
