MPU – Sun Hydraulics Ninety degree Line mount manifold

Q: Is MPU the same as MPU/10?

Yes. Sun Hydraulics writes this part number as MPU. It is the model MPU followed by the configuration code; hyphens, slashes and spaces are only dividers, so MPU, MPU/10, MPU/11, MPU/S, MPU/S3, MPU/S4, MPU/S5 all refer to the same product.

Brand: Sun Hydraulics
SKU: MPU

MPU Sun Hydraulics Ninety degree Line mount manifold drawing

Roll over image to zoom in

Part number: MPU · MPU/10 · MPU/11 · MPU/S · MPU/S3 · MPU/S4 · MPU/S5

Brand Sun HydraulicsType Line mountCavity T-61A

Ninety degree Line mount manifold, cavity T-61A, 3/8″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Material/finish:

Clear

Quantity:

SKU: MPU Category: Line mount Brand: Sun Hydraulics

MPU overview

MPU (MPU/10, MPU/11, MPU/S, MPU/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-61A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

MPU	Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
MPU/10	Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
MPU/11	Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
MPU/S	Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
MPU/S3	Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
MPU/S4	Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
MPU/S5	Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel

Specifications

Body Type	Line mount
Interface	None
Body Features	Ninety degree
Mounting Hole Diameter	.34 in. (8.6 mm)
Mounting Hole Depth	Through
Mounting Hole Quantity	2
Open Cavities	1
Cavity	T-61A
Port Size	3/8" BSPP

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read MPU

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so MPU, MPU/10, MPU/11, MPU/S, MPU/S3, MPU/S4, MPU/S5 are the same part.

Model	MPU — Sun Hydraulics Ninety degree Line mount manifold
Modifier	Add the modifier after the model, e.g. MPU/10 = black anodized aluminium. No modifier = standard material.

Modifier options

— 6061-T651 Aluminum, Buna-N
/10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
/S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
/S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
/S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-61A (6)

Ports

Modifiers Ports MPU, /10, /11 Ports 1, 2, 3, 4: 3/8" BSPP; Ports 5 & 6: 1/4" BSPP;

Drawings, symbol & performance curves

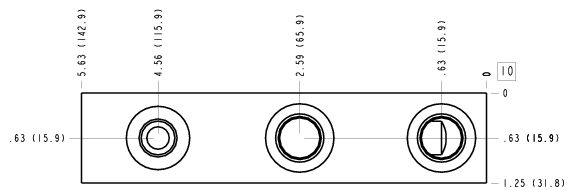

MPU Sun Hydraulics Ninety degree Line mount manifold drawing

Downloads

Datasheet

Datasheet (MPU) (PDF 81 KB)

CAD files (from Sun Hydraulics)

Frequently asked questions

Is MPU the same as MPU/10?

Yes. Sun Hydraulics writes this part number as MPU. It is the model MPU followed by the configuration code; hyphens, slashes and spaces are only dividers, so MPU, MPU/10, MPU/11, MPU/S, MPU/S3, MPU/S4, MPU/S5 all refer to the same product.

Do you supply MPU in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including MPU, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
