DCCD-XCN – Sun Hydraulics 4-way, 2-position, pilot-to-shift, detented, directional valve
Roll over image to zoom in
Part number: DCCDXCN · DCCD-XCN · DCCD XCN
4-way, 2-position, pilot-to-shift, detented, directional valve. Cavity T-61A, capacity 10 – 13 gpm (40 – 50 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
DCCD-XCN overview
DCCDXCN (DCCD-XCN, DCCD XCN) is a Sun Hydraulics Sun Hydraulics 4-way, 2-position, pilot-to-shift, detented, directional valve, rated 10 - 13 gpm (40 - 50 L/min.) and installed in cavity T-61A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DCCDXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| DCCDXCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| DCCDXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-61A |
|---|---|
| Series | 1 |
| Capacity | 10 - 13 gpm (40 - 50 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi (12 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi (30 cc/min.@70 bar) |
| Pilot Volume Displacement | .05 in³ (0,82 cc) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Model Weight | .40 lb (0,20 kg) |
| Seal kit - Cartridge | Viton: 990061006 |
How to read DCCDXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DCCDXCN, DCCD-XCN, DCCD XCN are the same part.
| Model | DCCD — Sun Hydraulics 4-way, 2-position, pilot-to-shift, detented, directional valve |
|---|---|
| Control | X — Standard Pilot |
| Spool Configuration | C — Blocked Crossover |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Standard Pilot
Spool Configuration options
- C — Blocked Crossover
- H — Open Crossover
- T — Tandem Crossover
- X — P to B and A to T Crossover
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-61A (9)
- MPA Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPA — request assembly
- MPB Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPB — request assembly
- MPC Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPC — request assembly
- MPI Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPI — request assembly
- MPJ Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPJ — request assembly
- MPK Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPK — request assembly
- MPT Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPT — request assembly
- MPU Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPU — request assembly
- MPV Sun Hydraulics Ninety degree Line mount manifoldDCCDXCN-MPV — request assembly
Technical features
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating-style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

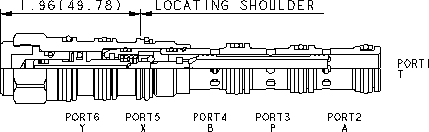

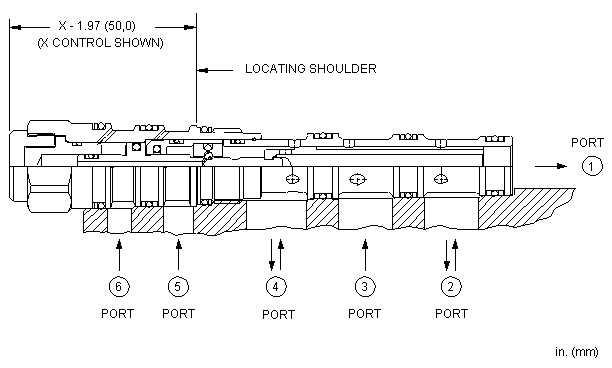

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_PODirectional_Aug2015 (PDF 2 MB)
CAD files
Frequently asked questions
Is DCCDXCN the same as DCCD-XCN?
Yes. Sun Hydraulics writes this part number as DCCDXCN. It is the model DCCD followed by the configuration code; hyphens, slashes and spaces are only dividers, so DCCDXCN, DCCD-XCN, DCCD XCN all refer to the same product.
Do you supply DCCDXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including DCCDXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/DCCD
