FPBJ-XDN – Sun Hydraulics FLeX Series pilot-operated, normally open, electro-proportional throttle with reverse flow check – flow 2-1

Q: Is FPBJXDN the same as FPBJ-XDN?

Yes. Sun Hydraulics writes this part number as FPBJXDN. It is the model FPBJ followed by the configuration code; hyphens, slashes and spaces are only dividers, so FPBJXDN, FPBJ-XDN, FPBJ XDN all refer to the same product.

Brand: Sun Hydraulics
SKU: FPBJ

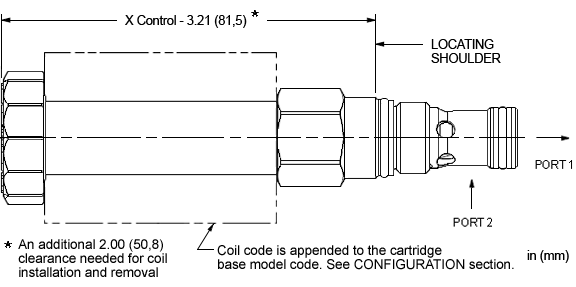

FPBJ-XDN Sun Hydraulics Flow Control Valve – installation dimensions drawing, cavity T-162A

FPBJ-XDN Sun Hydraulics Flow Control Valve – hydraulic schematic symbol

Roll over image to zoom in

Part number: FPBJXDN · FPBJ-XDN · FPBJ XDN

Brand Sun HydraulicsType Flow ControlCapacity 5 gpm (20 L/min.)Cavity T-162A

FLeX Series pilot-operated, normally open, electro-proportional throttle with reverse flow check – flow 2-1. Cavity T-162A, capacity 5 gpm (20 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

Coil:

Clear

Quantity:

SKU: FPBJ Category: Flow Control Brand: Sun Hydraulics

FPBJ-XDN overview

FPBJXDN (FPBJ-XDN, FPBJ XDN) is a Sun Hydraulics Sun Hydraulics FLeX Series pilot-operated, normally open, electro-proportional throttle with reverse flow check - flow 2-1, rated 5 gpm (20 L/min.) and installed in cavity T-162A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

FPBJXDN	No coilNo coil
FPBJXDN212	DIN 43650-Form A, 12 VDCDIN 43650-Form A, 12 VDC
FPBJXDN212D	DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodesDIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes
FPBJXDN212X01	DIN 43650-Form A, 12 VDC, with XMD-01 driverDIN 43650-Form A, 12 VDC, with XMD-01 driver

Specifications

Cavity	T-162A
Series	0
Capacity	5 gpm (20 L/min.)
Maximum Operating Pressure	5000 psi (350 bar)
Hysteresis (with dither)	15%
Linearity (with dither)	3%
Repeatability (with dither)	3%
Recommended dither frequency	140 Hz
Maximum Valve Leakage at 110 SUS (24 cSt)	0.004 in³/min.@5000 psi (0,07 cc/min.@350 bar)
Check Cracking Pressure	100 psi (7 bar)
Viscosity Range	35 - 2000 SUS (2,8 - 380 cSt)
Deadband, nominal (as a percentage of input)	48%
Response Time - Typical	50 ms
Switching Frequency	15,000 max. cycles/hr
Valve Hex Size	3/4 in. (19,1 mm)
Valve Installation Torque	20 - 25 lbf ft (27 - 33 Nm)
Model Weight	.35 lb (0,15 kg)
Seal kit - Cartridge	Viton: 990162006

Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances. An additional 2.00 inches (50,8 mm) beyond the valve extension is needed for coil installation and removal.

How to read FPBJXDN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FPBJXDN, FPBJ-XDN, FPBJ XDN are the same part.

Model	FPBJ — Sun Hydraulics FLeX Series pilot-operated, normally open, electro-proportional throttle with reverse flow check - flow 2-1
Control	X — No Manual Override
Flow Rate	D — Nominal 5 gpm @ 200 psi (14 bar) differential (20 L/min.)
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

X — No Manual Override

Flow Rate options

D — Nominal 5 gpm @ 200 psi (14 bar) differential (20 L/min.)

Seal Material options

N — Buna-N
V — Viton

Coil options

— No coil
212 — DIN 43650-Form A, 12 VDC
212D — DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes
212X01 — DIN 43650-Form A, 12 VDC, with XMD-01 driver
212X02 — DIN 43650-Form A, 12 VDC, with XMD-02 driver
214 — DIN 43650-Form A, 14 VDC
214D — DIN 43650-Form A, 14 VDC, with transient voltage suppression (TVS) diodes
214X01 — DIN 43650-Form A, 14 VDC, with XMD-01 driver
214X02 — DIN 43650-Form A, 14 VDC, with XMD-02 driver
224 — DIN 43650-Form A, 24 VDC
224D — DIN 43650-Form A, 24 VDC, with transient voltage suppression (TVS) diodes
224X01 — DIN 43650-Form A, 24 VDC, with XMD-01 driver
224X02 — DIN 43650-Form A, 24 VDC, with XMD-02 driver
228 — DIN 43650-Form A, 28 VDC
228D — DIN 43650-Form A, 28 VDC, with transient voltage suppression (TVS) diodes
228X01 — DIN 43650-Form A, 28 VDC, with XMD-01 driver
228X02 — DIN 43650-Form A, 28 VDC, with XMD-02 driver
612 — AMP Junior Timer, 12 VDC
612D — AMP Junior Timer, 12 VDC, with transient voltage suppression (TVS) diodes
614 — AMP Junior Timer, 14 VDC
614D — AMP Junior Timer, 14 VDC, with transient voltage suppression (TVS) diodes
624 — AMP Junior Timer, 24 VDC
624D — AMP Junior Timer, 24 VDC, with transient voltage suppression (TVS) diodes
628 — AMP Junior Timer, 28 VDC
628D — AMP Junior Timer, 28 VDC, with transient voltage suppression (TVS) diodes
712 — Twin Lead, 12 VDC
712D — Twin Lead, 12 VDC, with transient voltage suppression (TVS) diodes
714 — Twin Lead, 14 VDC
714D — Twin Lead, 14 VDC, with transient voltage suppression (TVS) diodes
724 — Twin Lead, 24 VDC
724D — Twin Lead, 24 VDC, with transient voltage suppression (TVS) diodes
728 — Twin Lead, 28 VDC
728D — Twin Lead, 28 VDC, with transient voltage suppression (TVS) diodes
812 — Metri-Pack, 12 VDC
812D — Metri-Pack, 12 VDC, with transient voltage suppression (TVS) diodes
814 — Metri-Pack, 14 VDC
814D — Metri-Pack, 14 VDC, with transient voltage suppression (TVS) diodes
824 — Metri-Pack, 24 VDC
824D — Metri-Pack, 24 VDC, with transient voltage suppression (TVS) diodes
828 — Metri-Pack, 28 VDC
828D — Metri-Pack, 28 VDC, with transient voltage suppression (TVS) diodes
912 — Deutsch DT04-2P, 12 VDC
912D — Deutsch DT04-2P, 12 VDC, with transient voltage suppression (TVS) diodes
912X01 — Deutsch DT04-2P, 12 VDC, with XMD-01 driver
912X02 — Deutsch DT04-2P, 12 VDC, with XMD-02 driver
914 — Deutsch DT04-2P, 14 VDC
914D — Deutsch DT04-2P, 14 VDC, with transient voltage suppression (TVS) diodes
914X01 — Deutsch DT04-2P, 14 VDC, with XMD-01 driver
914X02 — Deutsch DT04-2P, 14 VDC, with XMD-02 driver
924 — Deutsch DT04-2P, 24 VDC
924D — Deutsch DT04-2P, 24 VDC, with transient voltage suppression (TVS) diodes
924X01 — Deutsch DT04-2P, 24 VDC, with XMD-01 driver
924X02 — Deutsch DT04-2P, 24 VDC, with XMD-02 driver
928 — Deutsch DT04-2P, 28 VDC
928D — Deutsch DT04-2P, 28 VDC, with transient voltage suppression (TVS) diodes
928X01 — Deutsch DT04-2P, 28 VDC, with XMD-01 driver
928X02 — Deutsch DT04-2P, 28 VDC, with XMD-02 driver
JM24BD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 180 Degree, CSA and ATEX Certification
JM24CD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 90 Degree, CSA and ATEX Certification
JN24BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 180 Degree, CSA and ATEX Certification
JN24CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 90 Degree, CSA and ATEX Certification

Manifold & standard assemblies

Sun manifolds for cavity T-162A (56)

View all 56 →

Technical features

FLeX Series proportional valves are fully compatible with the XMD Expandable Mobile Drivers from Sun.
Designed and tested to 10 million on-off operational cycles.
Exceeds new NFPA test standard T2.6.1 R2014 for fatigue and burst pressure ratings.
Improved linearity and resolution over similar competing valves.
Designed using CFD fluid simulation for optimized geometries.
For optimum performance, an amplifier with current feedback and adjustable dither (100 - 250 Hz) should be used.
Capacities rated at 200-psi (14-bar) differential.
Depending on circuit requirements, a reverse free flow check bypassing the compensator may be needed when using an FPB* with an external compensator.
All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
This valve can be used with both the 740 Series high-power coils and 747 Series hazardous location coils.
A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
Coil connector options offer ratings up to IP69K. See individual coil product pages for details.
A FULL DATA SHEET is available for this model using the link at the top of the page.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

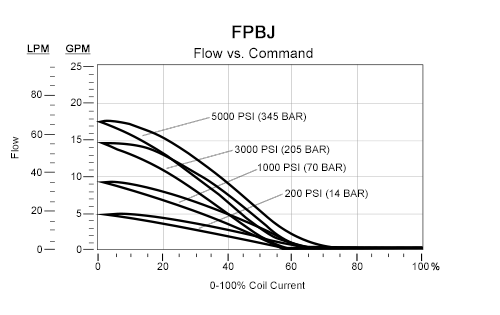

FPBJ-XDN Sun Hydraulics Flow Control Valve – performance curve (pressure drop vs flow) — performance curve (pressure drop vs flow)

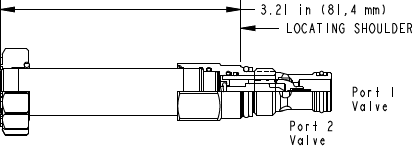

FPBJXDN Sun Hydraulics Flow Control Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (FPBJ-FPBJXDN) (PDF 94 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is FPBJXDN the same as FPBJ-XDN?

Yes. Sun Hydraulics writes this part number as FPBJXDN. It is the model FPBJ followed by the configuration code; hyphens, slashes and spaces are only dividers, so FPBJXDN, FPBJ-XDN, FPBJ XDN all refer to the same product.

Do you supply FPBJXDN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FPBJXDN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

What is the compensating pressure of Sun's flow controls?

The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What is the pressure drop through a flow control?

In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.

How accurate are Sun's flow controls?

We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.

I have a heat problem, will Sun's priority flow control help?

I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.

What happens if I block the control flow (priority) port?

All flow is blocked, hence the term priority. The priority flow has to be satisfied.

Can FLeX proportional valves be driven with an explosion proof coil?

Yes. The 747 series explosion proof coils can be used on any FLeX proportional valve.

Does this FLeX series throttle control flow bidirectionally?

No. This cartridge only controls flow in the 2 to 1 flow direction. From 1 to 2, the valve is always fully open.

Is the FLeX program available in QuickDesign SmartConnect?

Yes. All FLeX phase 1 valves are available in the SmartConnect schematic tool, and are also available for submittal to QuickDesign.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.

Do FLeX valves utilize a floating nose design?

Yes. All FLeX valves utilize the Sun floating nose design.

What is the difference between nominal and maximum flow capacity?

Nominal flow capacity is based on performance limits. Maximum flow capacity is based on pressure drop. When selecting any direct-acting solenoid valve, first check the performance limits plot, then check if pressure drop is acceptable.
