FMDG-XCN – Sun Hydraulics Electro-proportional 3-way flow control valve, meter in (740 Series)
Part number: FMDGXCN · FMDG-XCN · FMDG XCN
Electro-proportional 3-way flow control valve, meter in (740 Series). Cavity T-11A, capacity 6 gpm (23 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
FMDG-XCN overview
FMDGXCN (FMDG-XCN, FMDG XCN) is a Sun Hydraulics Sun Hydraulics Electro-proportional 3-way flow control valve, meter in (740 Series), rated 6 gpm (23 L/min.) and installed in cavity T-11A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| FMDGXCN | No coilNo coil |
|---|---|
| FMDGXCN211 | DIN 43650-Form A, 115 VACDIN 43650-Form A, 115 VAC |
| FMDGXCN212 | DIN 43650-Form A, 12 VDCDIN 43650-Form A, 12 VDC |
| FMDGXCN212D | DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodesDIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes |
Specifications
| Cavity | T-11A |
|---|---|
| Series | 1 |
| Capacity | 6 gpm (23 L/min.) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi (30 cc/min.@70 bar) |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 1 (33 N/100 bar @ Port 1) |
| Manual Override Stroke | .10 in. (2,5 mm) |
| Solenoid Tube Diameter | .63 in. (16 mm) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Seal kit - Cartridge | Viton: 990411006 |
| Seal and nut kit - Coil | Viton: 990740006 |
How to read FMDGXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so FMDGXCN, FMDG-XCN, FMDG XCN are the same part.
| Model | FMDG — Sun Hydraulics Electro-proportional 3-way flow control valve, meter in (740 Series) |
|---|---|
| Control | X — No Manual Override |
| Flow Rate | C — .1 - 6 gpm (0,4 - 23 L/min.) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — No Manual Override
- D — Twist/Lock (Dual) Manual Override
- L — Twist/Lock (Detent) Manual Override
- M — Manual Override
- T — Twist (Momentary) Manual Override
Flow Rate options
- A — .1 - 1.6 gpm (0,4 - 6.1 L/min.)
- B — .1 - 4 gpm (0,4 - 15 L/min.)
- C — .1 - 6 gpm (0,4 - 23 L/min.)
Seal Material options
- N — Buna-N
- V — Viton
Coil options
- — No coil
- 211 — DIN 43650-Form A, 115 VAC
- 212 — DIN 43650-Form A, 12 VDC
- 212D — DIN 43650-Form A, 12 VDC, with transient voltage suppression (TVS) diodes
- 214 — DIN 43650-Form A, 14 VDC
- 214D — DIN 43650-Form A, 14 VDC, with transient voltage suppression (TVS) diodes
- 223 — DIN 43650-Form A, 230 VAC
- 224 — DIN 43650-Form A, 24 VDC
- 224D — DIN 43650-Form A, 24 VDC, with transient voltage suppression (TVS) diodes
- 228 — DIN 43650-Form A, 28 VDC
- 228D — DIN 43650-Form A, 28 VDC, with transient voltage suppression (TVS) diodes
- 612 — AMP Junior Timer, 12 VDC
- 612D — AMP Junior Timer, 12 VDC, with transient voltage suppression (TVS) diodes
- 614 — AMP Junior Timer, 14 VDC
- 614D — AMP Junior Timer, 14 VDC, with transient voltage suppression (TVS) diodes
- 624 — AMP Junior Timer, 24 VDC
- 624D — AMP Junior Timer, 24 VDC, with transient voltage suppression (TVS) diodes
- 628 — AMP Junior Timer, 28 VDC
- 628D — AMP Junior Timer, 28 VDC, with transient voltage suppression (TVS) diodes
- 712 — Twin Lead, 12 VDC
- 712D — Twin Lead, 12 VDC, with transient voltage suppression (TVS) diodes
- 714 — Twin Lead, 14 VDC
- 714D — Twin Lead, 14 VDC, with transient voltage suppression (TVS) diodes
- 724 — Twin Lead, 24 VDC
- 724D — Twin Lead, 24 VDC, with transient voltage suppression (TVS) diodes
- 728 — Twin Lead, 28 VDC
- 728D — Twin Lead, 28 VDC, with transient voltage suppression (TVS) diodes
- 812 — Metri-Pack, 12 VDC
- 812D — Metri-Pack, 12 VDC, with transient voltage suppression (TVS) diodes
- 814 — Metri-Pack, 14 VDC
- 814D — Metri-Pack, 14 VDC, with transient voltage suppression (TVS) diodes
- 824 — Metri-Pack, 24 VDC
- 824D — Metri-Pack, 24 VDC, with transient voltage suppression (TVS) diodes
- 828 — Metri-Pack, 28 VDC
- 828D — Metri-Pack, 28 VDC, with transient voltage suppression (TVS) diodes
- 912 — Deutsch DT04-2P, 12 VDC
- 912D — Deutsch DT04-2P, 12 VDC, with transient voltage suppression (TVS) diodes
- 914 — Deutsch DT04-2P, 14 VDC
- 914D — Deutsch DT04-2P, 14 VDC, with transient voltage suppression (TVS) diodes
- 924 — Deutsch DT04-2P, 24 VDC
- 924D — Deutsch DT04-2P, 24 VDC, with transient voltage suppression (TVS) diodes
- 928 — Deutsch DT04-2P, 28 VDC
- 928D — Deutsch DT04-2P, 28 VDC, with transient voltage suppression (TVS) diodes
- JM24BD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 180 Degree, CSA and ATEX Certification
- JM24CD — Explosion Proof, Metric (M20 X 1.5), 24 VDC, 90 Degree, CSA and ATEX Certification
- JN24BD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 180 Degree, CSA and ATEX Certification
- JN24CD — Explosion Proof, 1/2 inch NPT mechanical conduit, 24 VDC, 90 Degree, CSA and ATEX Certification
Manifold & standard assemblies
Sun manifolds for cavity T-11A (583)
- A2A Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2A — request assembly
- A2B Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2B — request assembly
- A2C Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2C — request assembly
- A2I Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2I — request assembly
- A2J Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2J — request assembly
- A2K Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2K — request assembly
- A2T Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2T — request assembly
- A2U Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2U — request assembly
- A2V Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A2V — request assembly
- A7A Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A7A — request assembly
- A7B Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A7B — request assembly
- A7C Sun Hydraulics Ninety degree with reverse flow check, accepts standard and weatherized coils Line mount manifoldFMDGXCN-A7C — request assembly
Technical features
- The transition between positions is closed.
- Using 2 3-ways to create a 4-way allows one to choose existing flow ranges instead of cutting a special spool.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- All ports will accept 5000 psi (350 bar).
- All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
- This valve can be used with both the 740 Series high-power coils and 747 Series hazardous location coils.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

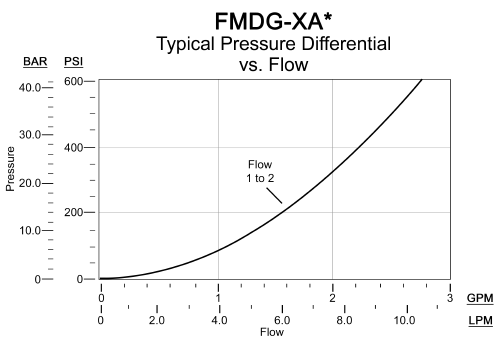

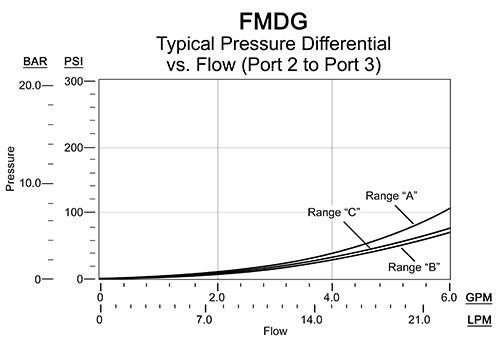

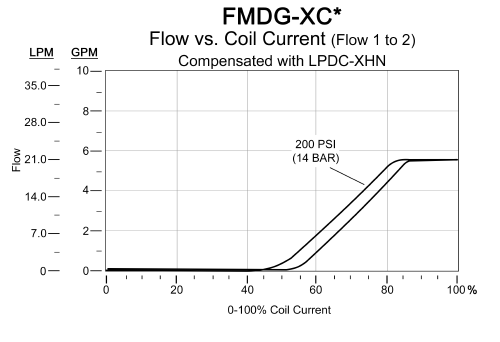

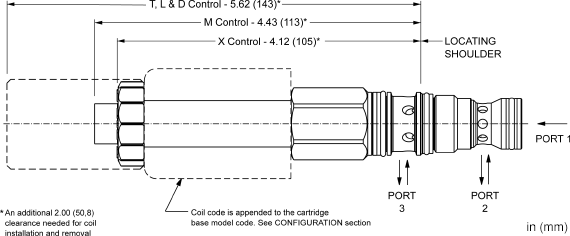

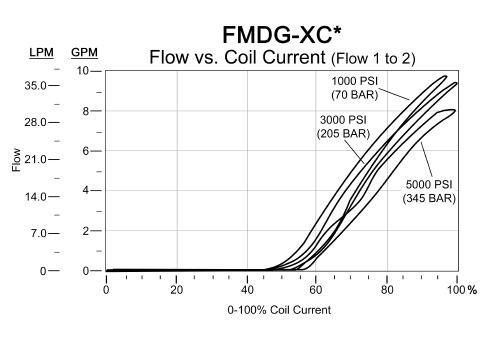

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Amplifier-New (PDF 2 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_coils-New (PDF 975 KB)
- rel-Prop_terms-definitionsN (PDF 3 MB)
CAD files
Frequently asked questions
Is FMDGXCN the same as FMDG-XCN?
Yes. Sun Hydraulics writes this part number as FMDGXCN. It is the model FMDG followed by the configuration code; hyphens, slashes and spaces are only dividers, so FMDGXCN, FMDG-XCN, FMDG XCN all refer to the same product.
Do you supply FMDGXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including FMDGXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
What happens if I block the bypass port on a priority flow control?
The valve acts as a 2 port restrictive flow control.
What is the compensating pressure of Sun's flow controls?
The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What is the pressure drop through a flow control?
In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
How accurate are Sun's flow controls?
We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?
I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?
All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/FMDG
