DJX – Sun Hydraulics ISO 05 – X&Y: A and B to T Sandwich manifold
Part number: DJX · DJX/10 · DJX/11 · DJX/S · DJX/S3 · DJX/S4 · DJX/S5
ISO 05 – X&Y: A and B to T Sandwich manifold, cavity T-5A. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
DJX overview
DJX (DJX/10, DJX/11, DJX/S, DJX/S3) is a Sun Hydraulics Sun Hydraulics ISO 05 - X&Y: A and B to T Sandwich manifold and installed in cavity T-5A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| DJX | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| DJX/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| DJX/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| DJX/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| DJX/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| DJX/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| DJX/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Sandwich |
|---|---|
| Interface | ISO 05 - X&Y |
| Body Features | A and B to T |
| Stack Height | 1.49 in. (38 mm) |
| Seal Plate Included (see notes) | No |
| Open Cavities | 2 |
| Cavity | T-5A |
Stack height value in technical data table includes seal retainer plate. This installation requires a retainer and seal kit which are purchased separately. See "Related Accessories" section. Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read DJX
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so DJX, DJX/10, DJX/11, DJX/S, DJX/S3, DJX/S4, DJX/S5 are the same part.
| Model | DJX — Sun Hydraulics ISO 05 - X&Y: A and B to T Sandwich manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. DJX/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-5A (25)
- CNECXCN Sun Hydraulics Fixed-orifice, non-pressure compensated, flow control valve with reverse flow checkCNECXCN-DJX — request assembly
- CNFCXCN Sun Hydraulics Free flow nose to side check valve with bypass orificeCNFCXCN-DJX — request assembly
- CXEDXCN Sun Hydraulics Free flow side to nose check valveCXEDXCN-DJX — request assembly
- CXFAXCN Sun Hydraulics Free flow nose to side check valveCXFAXCN-DJX — request assembly
- CXFHZCN Sun Hydraulics Free flow nose to side check valve with position switchCXFHZCN-DJX — request assembly
- DFDA8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 1-2DFDA8DN-DJX — request assembly
- DFDBXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1DFDBXCN-DJX — request assembly
- DFDB8DN Sun Hydraulics 2-way, poppet directional valve with integral T-8A control cavity – control 2-1DFDB8DN-DJX — request assembly
- DFDIXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 1-2 (740 Series)DFDIXCN-DJX — request assembly
- DFDJXCN Sun Hydraulics 2-way, 2-stage, solenoid-operated directional poppet valve – flow 2-1 (740 Series)DFDJXCN-DJX — request assembly
- FCDBXAN Sun Hydraulics Fixed-orifice pressure compensated flow control valve with reverse flow checkFCDBXAN-DJX — request assembly
- FCDCXAN Sun Hydraulics Fixed-orifice pressure compensated flow control valve with reverse flow checkFCDCXAN-DJX — request assembly

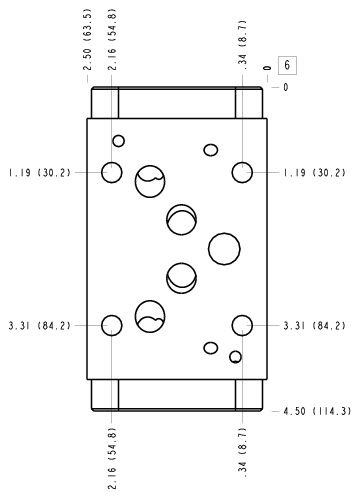

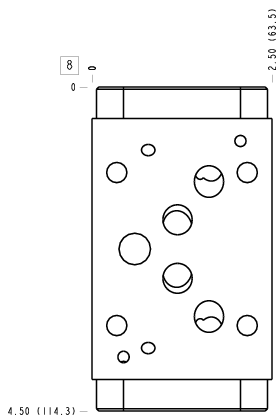

Drawings, symbol & performance curves
