CXFA-XCN – Sun Hydraulics Free flow nose to side check valve
Part number: CXFAXCN · CXFA-XCN · CXFA XCN
Free flow nose to side check valve. Cavity T-5A, capacity 40 gpm (160 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
CXFA-XCN overview
CXFAXCN (CXFA-XCN, CXFA XCN) is a Sun Hydraulics Sun Hydraulics Free flow nose to side check valve, rated 40 gpm (160 L/min.) and installed in cavity T-5A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CXFAXCN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| CXFAXCN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| CXFAXCN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-5A |
|---|---|
| Series | 2 |
| Capacity | 40 gpm (160 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min. (0,07 cc/min.) |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Model Weight | .40 lb (0,20 kg) |
| Seal kit - Cartridge | Viton: 990203006 |
How to read CXFAXCN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CXFAXCN, CXFA-XCN, CXFA XCN are the same part.
| Model | CXFA — Sun Hydraulics Free flow nose to side check valve |
|---|---|
| Control | X — Not Adjustable |
| Cracking Pressure | C — 30 psi (2 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Cracking Pressure options
- A — 4 psi (0,3 bar)
- C — 30 psi (2 bar)
- B — 15 psi (1 bar)
- D — 50 psi (3,5 bar)
- E — 75 psi (5 bar)
- F — 100 psi (7 bar)
- Z — 1 psi (0,07 bar)
Seal Material options
- N — Buna-N
- L — Extended Temp. Buna
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-5A (106)
- CDX Sun Hydraulics ISO 08: T to A and B Sandwich manifoldCXFAXCN-CDX — request assembly
- DAA Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAA — request assembly
- DAB Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAB — request assembly
- DAC Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAC — request assembly
- DAD Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAD — request assembly
- DAI Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAI — request assembly
- DAJ Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAJ — request assembly
- DAK Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAK — request assembly
- DAL Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAL — request assembly
- DAT Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAT — request assembly
- DAU Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAU — request assembly
- DAV Sun Hydraulics Ninety degree Line mount manifoldCXFAXCN-DAV — request assembly
Technical features
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

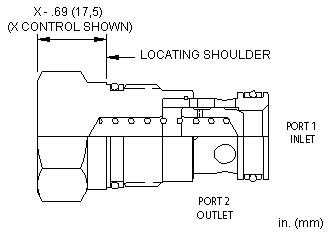

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
- 999-901-334 (PDF 344 KB)
- FloatingStyleScrewInCartridge2 (PDF 1 MB)
- TT_US_Cavity-New (PDF 522 KB)
- TT_US_check-flow1-New (PDF 537 KB)
CAD files
Frequently asked questions
Is CXFAXCN the same as CXFA-XCN?
Yes. Sun Hydraulics writes this part number as CXFAXCN. It is the model CXFA followed by the configuration code; hyphens, slashes and spaces are only dividers, so CXFAXCN, CXFA-XCN, CXFA XCN all refer to the same product.
Do you supply CXFAXCN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including CXFAXCN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
What parts of the Sun cartridge valve are field serviceable?
