CK3 – Sun Hydraulics ISO 07: B to T, check T to A Sandwich manifold
Part number: CK3 · CK3/10 · CK3/11 · CK3/15 · CK3/16 · CK3/V · CK3/S · CK3/S3 · CK3/S4 · CK3/S5 · CK3/Y · CK3/Y3 · CK3/Y4 · CK3/Y5
ISO 07: B to T, check T to A Sandwich manifold, cavity T-3A. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
CK3 overview
CK3 (CK3/10, CK3/11, CK3/15, CK3/16) is a Sun Hydraulics Sun Hydraulics ISO 07: B to T, check T to A Sandwich manifold and installed in cavity T-3A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| CK3 | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| CK3/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| CK3/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| CK3/15 | Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| CK3/16 | Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| CK3/V | Aluminium, Viton seals6061-T651 Aluminum, Viton |
| CK3/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| CK3/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| CK3/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| CK3/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| CK3/Y | Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil |
| CK3/Y3 | Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer |
| CK3/Y4 | Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black |
| CK3/Y5 | Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel |
Specifications
| Body Type | Sandwich |
|---|---|
| Interface | ISO 07 |
| Body Features | B to T, check T to A |
| Stack Height | 1.94 in. (49 mm) |
| Seal Plate Included (see notes) | No |
| Open Cavities | 1 |
| Cavity | T-3A |
Seal retainer plate is not required for this model. Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read CK3
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so CK3, CK3/10, CK3/11, CK3/15, CK3/16, CK3/V, CK3/S, CK3/S3, CK3/S4, CK3/S5, CK3/Y, CK3/Y3, CK3/Y4, CK3/Y5 are the same part.
| Model | CK3 — Sun Hydraulics ISO 07: B to T, check T to A Sandwich manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. CK3/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /V — 6061-T651 Aluminum, Viton
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
- /Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
- /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
- /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-3A (16)
- NQEBXAN Sun Hydraulics Air bleed and start-up valveNQEBXAN-CK3 — request assembly
- RBAALAN Sun Hydraulics Direct-acting relief valve – pilot capacityRBAALAN-CK3 — request assembly
- RBABABN Sun Hydraulics Air-controlled, direct-acting relief valve – pilot capacityRBABABN-CK3 — request assembly
- RBFALWN Sun Hydraulics Bi-directional direct-acting relief valveRBFALWN-CK3 — request assembly
- RDFALAN Sun Hydraulics Direct-acting relief valveRDFALAN-CK3 — request assembly
- RDFA3AN Sun Hydraulics Non-adjustable direct-acting relief valveRDFA3AN-CK3 — request assembly
- RGFALCN Sun Hydraulics Low-pressure-range, direct-acting relief valveRGFALCN-CK3 — request assembly
- RPGCLAN Sun Hydraulics Pilot-operated, balanced piston relief valveRPGCLAN-CK3 — request assembly
- RPGC8WN Sun Hydraulics Pilot-operated, balanced piston relief main stage with integral T-8A control cavityRPGC8WN-CK3 — request assembly
- RPGDABN Sun Hydraulics Air-controlled, pilot-operated, balanced piston relief valveRPGDABN-CK3 — request assembly
- RPGELAN Sun Hydraulics Fast-acting, pilot-operated, balanced piston relief valveRPGELAN-CK3 — request assembly
- RPGSLAN Sun Hydraulics Pilot-operated, balanced poppet relief valveRPGSLAN-CK3 — request assembly

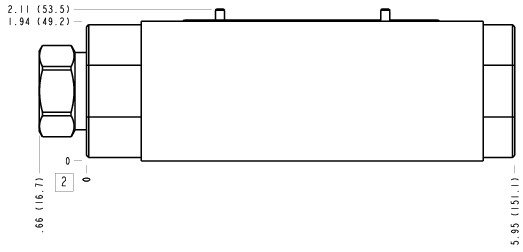

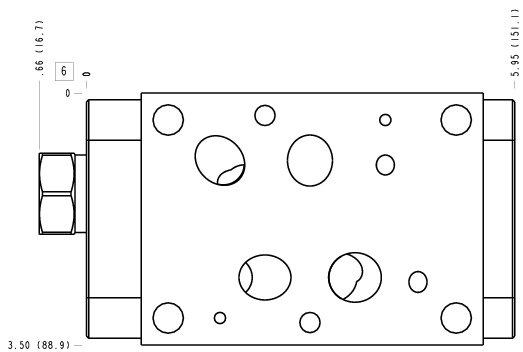

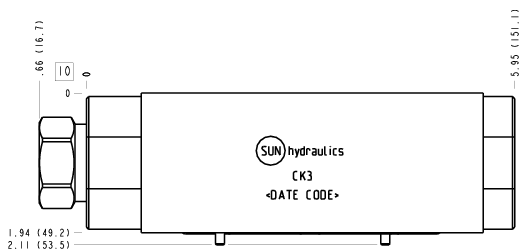

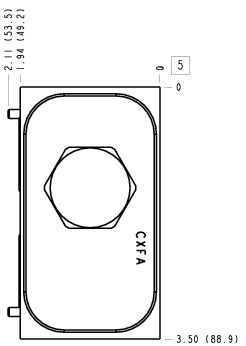

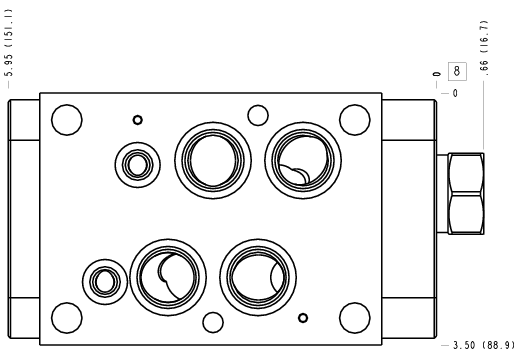

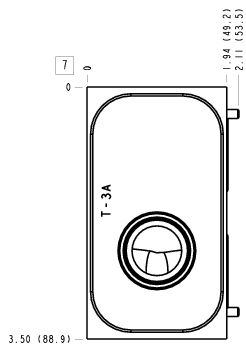

Drawings, symbol & performance curves
