ZHY – Sun Hydraulics Direct mount Line mount manifold

Q: Is ZHY the same as ZHY/10?

Yes. Sun Hydraulics writes this part number as ZHY. It is the model ZHY followed by the configuration code; hyphens, slashes and spaces are only dividers, so ZHY, ZHY/10, ZHY/11, ZHY/15, ZHY/16, ZHY/1A, ZHY/1B, ZHY/1F, ZHY/1G, ZHY/M, ZHY/V, ZHY/Z, ZHY/S, ZHY/S3, ZHY/S4, ZHY/S5, ZHY/T, ZHY/T3, ZHY/T4, ZHY/T5, ZHY/W, ZHY/W3, ZHY/W4, ZHY/W5, ZHY/Y, ZHY/Y1, ZHY/Y3, ZHY/Y4, ZHY/Y5 all refer to the same product.

Brand: Sun Hydraulics
SKU: ZHY

ZHY Sun Hydraulics Direct mount Line mount manifold drawing

Roll over image to zoom in

Part number: ZHY · ZHY/10 · ZHY/11 · ZHY/15 · ZHY/16 · ZHY/1A · ZHY/1B · ZHY/1F · ZHY/1G · ZHY/M · ZHY/V · ZHY/Z · ZHY/S · ZHY/S3 · ZHY/S4 · ZHY/S5 · ZHY/T · ZHY/T3 · ZHY/T4 · ZHY/T5 · ZHY/W · ZHY/W3 · ZHY/W4 · ZHY/W5 · ZHY/Y · ZHY/Y1 · ZHY/Y3 · ZHY/Y4 · ZHY/Y5

Brand Sun HydraulicsType Line mountCavity T-24A

Direct mount Line mount manifold, cavity T-24A, 1″ Code 61 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Material/finish:

Clear

Quantity:

SKU: ZHY Category: Line mount Brand: Sun Hydraulics

ZHY overview

ZHY (ZHY/10, ZHY/11, ZHY/15, ZHY/16) is a Sun Hydraulics Sun Hydraulics Direct mount Line mount manifold and installed in cavity T-24A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

ZHY	Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
ZHY/10	Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZHY/11	Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZHY/15	Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZHY/16	Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZHY/1A	Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZHY/1B	Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZHY/1F	Aluminium, Metric, black anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZHY/1G	Aluminium, Metric, clear anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZHY/M	Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N
ZHY/V	Aluminium, Viton seals6061-T651 Aluminum, Viton
ZHY/Z	Aluminium, Metric, Viton seals6061-T651 Aluminum, Metric, Viton
ZHY/S	Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
ZHY/S3	Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
ZHY/S4	Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
ZHY/S5	Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel
ZHY/T	Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
ZHY/T3	Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
ZHY/T4	Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
ZHY/T5	Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
ZHY/W	Ductile iron, Metric, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil
ZHY/W3	Ductile iron, Metric, clear zinc plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer
ZHY/W4	Ductile iron, Metric, black oxide finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Chem. Black
ZHY/W5	Ductile iron, Metric, electroless nickel plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel
ZHY/Y	Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil
ZHY/Y1	Ductile iron, Clear Zinc Nickel with Top Sealer, Viton seals65-45-12 Ductile Iron, Viton, Clear Zinc Nickel with Top Sealer
ZHY/Y3	Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
ZHY/Y4	Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black
ZHY/Y5	Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel

Specifications

Body Type	Line mount
Interface	1.00 SAE C61
Body Features	Direct mount
Open Cavities	1
Cavity	T-24A
Port Size	1" Code 61

Flange mounting hole data: Inch: 3/8-16 UNC x .88 (22,3 mm) DP, Metric: M10 x 1.5-6H x .88 (22,3 mm) DP Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read ZHY

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so ZHY, ZHY/10, ZHY/11, ZHY/15, ZHY/16, ZHY/1A, ZHY/1B, ZHY/1F, ZHY/1G, ZHY/M, ZHY/V, ZHY/Z, ZHY/S, ZHY/S3, ZHY/S4, ZHY/S5, ZHY/T, ZHY/T3, ZHY/T4, ZHY/T5, ZHY/W, ZHY/W3, ZHY/W4, ZHY/W5, ZHY/Y, ZHY/Y1, ZHY/Y3, ZHY/Y4, ZHY/Y5 are the same part.

Model	ZHY — Sun Hydraulics Direct mount Line mount manifold
Modifier	Add the modifier after the model, e.g. ZHY/10 = black anodized aluminium. No modifier = standard material.

Modifier options

— 6061-T651 Aluminum, Buna-N
/10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/1F — 6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
/1G — 6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
/M — 6061-T651 Aluminum, Metric, Buna-N
/V — 6061-T651 Aluminum, Viton
/Z — 6061-T651 Aluminum, Metric, Viton
/S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
/S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
/S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
/S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
/T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
/T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
/T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
/T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
/W — 65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil
/W3 — 65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer
/W4 — 65-45-12 Ductile Iron, Metric, Viton, Chem. Black
/W5 — 65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel
/Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
/Y1 — 65-45-12 Ductile Iron, Viton, Clear Zinc Nickel with Top Sealer
/Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
/Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
/Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-24A (30)

View all 30 →

Ports

Modifiers Ports ZHY, /10, /11, /15, /16, /S, /S3, /V, /Y, /Y3 Ports 1 & 2: 1" Code 61; Ports 3 & 4: SAE 6; ZHY/1A, /1B, /1F, /1G, /M, /T, /T3, /W, /W3, /Z Ports 1 & 2: 1" Code 61; Ports 3 & 4: 1/4" BSPP;

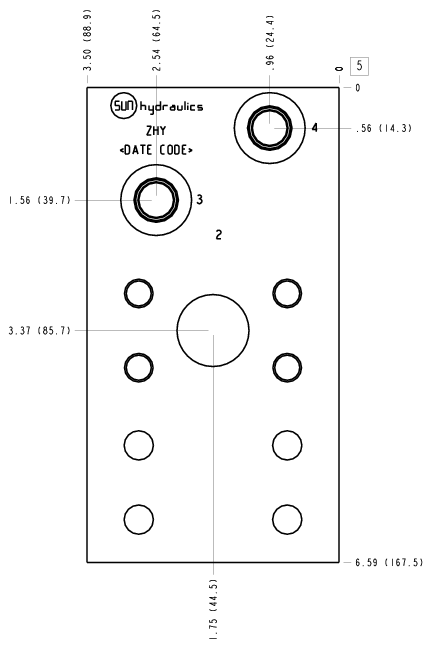

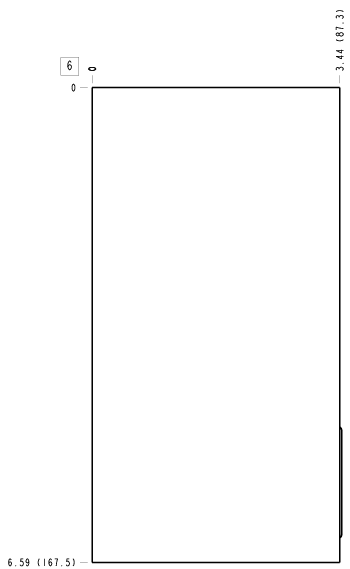

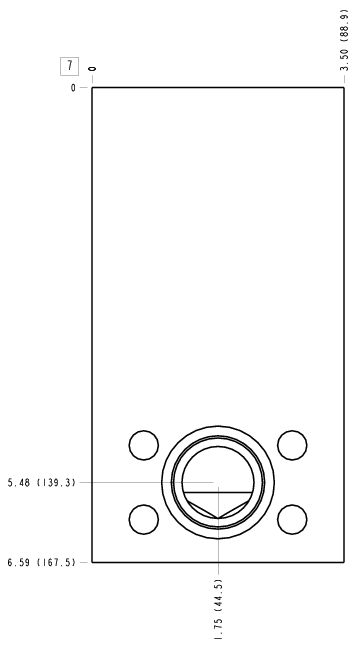

Drawings, symbol & performance curves

Downloads

Datasheet

Datasheet (ZHY) (PDF 82 KB)

CAD files (from Sun Hydraulics)

Frequently asked questions

Is ZHY the same as ZHY/10?

Yes. Sun Hydraulics writes this part number as ZHY. It is the model ZHY followed by the configuration code; hyphens, slashes and spaces are only dividers, so ZHY, ZHY/10, ZHY/11, ZHY/15, ZHY/16, ZHY/1A, ZHY/1B, ZHY/1F, ZHY/1G, ZHY/M, ZHY/V, ZHY/Z, ZHY/S, ZHY/S3, ZHY/S4, ZHY/S5, ZHY/T, ZHY/T3, ZHY/T4, ZHY/T5, ZHY/W, ZHY/W3, ZHY/W4, ZHY/W5, ZHY/Y, ZHY/Y1, ZHY/Y3, ZHY/Y4, ZHY/Y5 all refer to the same product.

Do you supply ZHY in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including ZHY, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Manufacturer reference: https://www.sunhydraulics.com/model/ZHY
