ZEB – Sun Hydraulics Ninety degree Line mount manifold
Part number: ZEB · ZEB/10 · ZEB/11 · ZEB/S · ZEB/S3 · ZEB/S4 · ZEB/S5
Ninety degree Line mount manifold, cavity T-17A, M27 x 2.0-6H ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
ZEB overview
ZEB (ZEB/10, ZEB/11, ZEB/S, ZEB/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-17A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| ZEB | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| ZEB/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| ZEB/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| ZEB/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| ZEB/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| ZEB/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| ZEB/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree |
| Mounting Hole Diameter | .42 in. (10,7 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-17A |
| Port Size | M27 x 2.0-6H |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read ZEB
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so ZEB, ZEB/10, ZEB/11, ZEB/S, ZEB/S3, ZEB/S4, ZEB/S5 are the same part.
| Model | ZEB — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. ZEB/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-17A (87)
- CAGALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGALHN-ZEB — request assembly
- CAGGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGGLGN-ZEB — request assembly
- CAGKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGKLHN-ZEB — request assembly
- CAGLLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAGLLGN-ZEB — request assembly
- CBFALHN Sun Hydraulics 3:1 pilot ratio, restrictive counterbalance valveCBFALHN-ZEB — request assembly
- CBFBLHN Sun Hydraulics 1.5:1 pilot ratio, semi-restrictive counterbalance valveCBFBLHN-ZEB — request assembly
- CBFCLHN Sun Hydraulics 3:1 pilot ratio, semi-restrictive counterbalance valveCBFCLHN-ZEB — request assembly
- CBFDLJN Sun Hydraulics 4.5:1 pilot ratio, semi-restrictive counterbalance valveCBFDLJN-ZEB — request assembly
- CBFGLJN Sun Hydraulics 4.5:1 pilot ratio, restrictive counterbalance valveCBFGLJN-ZEB — request assembly
- CBFLLJN Sun Hydraulics 2.3:1 pilot ratio, semi-restrictive counterbalance valveCBFLLJN-ZEB — request assembly
- CBGALHN Sun Hydraulics 3:1 pilot ratio, standard capacity counterbalance valveCBGALHN-ZEB — request assembly
- CBGBLHN Sun Hydraulics 1.5:1 pilot ratio, standard capacity counterbalance valveCBGBLHN-ZEB — request assembly
Ports
Modifiers Ports ZEB, /10, /11, /S, /S3, /S4, /S5 Ports 1 & 2: M27 x 2.0-6H; Port 3: M14 x 1.5-6H;

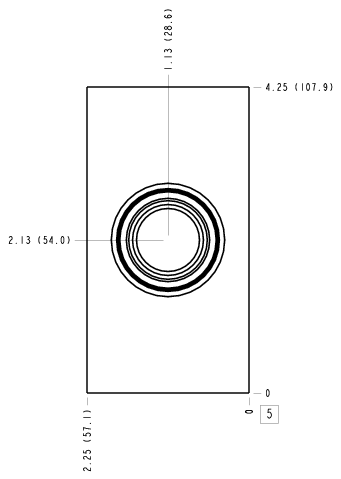

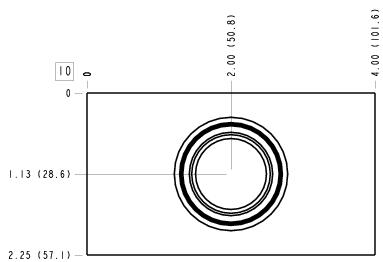

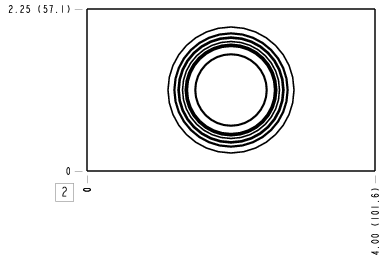

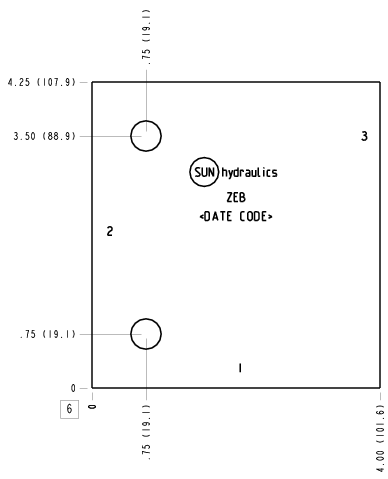

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
