Part number: ZDR · ZDR/10 · ZDR/11 · ZDR/15 · ZDR/16 · ZDR/1A · ZDR/1B · ZDR/1F · ZDR/1G · ZDR/M · ZDR/V · ZDR/Z · ZDR/S · ZDR/S3 · ZDR/S4 · ZDR/S5 · ZDR/T · ZDR/T3 · ZDR/T4 · ZDR/T5 · ZDR/W · ZDR/W3 · ZDR/W4 · ZDR/W5 · ZDR/Y · ZDR/Y1 · ZDR/Y3 · ZDR/Y4 · ZDR/Y5

Brand Sun HydraulicsType Line mountCavity T-17A

Direct mount Line mount manifold, cavity T-17A, 1″ Code 62 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.

Clear
SKU: ZDR Category: Brand:

ZDR overview

ZDR (ZDR/10, ZDR/11, ZDR/15, ZDR/16) is a Sun Hydraulics Sun Hydraulics Direct mount Line mount manifold and installed in cavity T-17A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

ZDR Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N
ZDR/10 Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZDR/11 Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZDR/15 Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZDR/16 Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZDR/1A Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZDR/1B Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZDR/1F Aluminium, Metric, black anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
ZDR/1G Aluminium, Metric, clear anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
ZDR/M Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N
ZDR/V Aluminium, Viton seals6061-T651 Aluminum, Viton
ZDR/Z Aluminium, Metric, Viton seals6061-T651 Aluminum, Metric, Viton
ZDR/S Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil
ZDR/S3 Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
ZDR/S4 Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black
ZDR/S5 Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel
ZDR/T Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
ZDR/T3 Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
ZDR/T4 Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
ZDR/T5 Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
ZDR/W Ductile iron, Metric, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil
ZDR/W3 Ductile iron, Metric, clear zinc plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer
ZDR/W4 Ductile iron, Metric, black oxide finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Chem. Black
ZDR/W5 Ductile iron, Metric, electroless nickel plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel
ZDR/Y Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil
ZDR/Y1 Ductile iron, Clear Zinc Nickel with Top Sealer, Viton seals65-45-12 Ductile Iron, Viton, Clear Zinc Nickel with Top Sealer
ZDR/Y3 Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
ZDR/Y4 Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black
ZDR/Y5 Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel

Specifications

Body TypeLine mount
Interface1.00 SAE C62
Body FeaturesDirect mount
Open Cavities1
CavityT-17A
Port Size1" Code 62

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.

How to read ZDR

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so ZDR, ZDR/10, ZDR/11, ZDR/15, ZDR/16, ZDR/1A, ZDR/1B, ZDR/1F, ZDR/1G, ZDR/M, ZDR/V, ZDR/Z, ZDR/S, ZDR/S3, ZDR/S4, ZDR/S5, ZDR/T, ZDR/T3, ZDR/T4, ZDR/T5, ZDR/W, ZDR/W3, ZDR/W4, ZDR/W5, ZDR/Y, ZDR/Y1, ZDR/Y3, ZDR/Y4, ZDR/Y5 are the same part.

ModelZDR — Sun Hydraulics Direct mount Line mount manifold
ModifierAdd the modifier after the model, e.g. ZDR/10 = black anodized aluminium. No modifier = standard material.
Modifier options
  • — 6061-T651 Aluminum, Buna-N
  • /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /1F — 6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
  • /1G — 6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
  • /M — 6061-T651 Aluminum, Metric, Buna-N
  • /V — 6061-T651 Aluminum, Viton
  • /Z — 6061-T651 Aluminum, Metric, Viton
  • /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
  • /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
  • /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
  • /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
  • /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
  • /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
  • /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
  • /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
  • /W — 65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil
  • /W3 — 65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer
  • /W4 — 65-45-12 Ductile Iron, Metric, Viton, Chem. Black
  • /W5 — 65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel
  • /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
  • /Y1 — 65-45-12 Ductile Iron, Viton, Clear Zinc Nickel with Top Sealer
  • /Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
  • /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
  • /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel

Cartridges that fit this manifold

Sun cartridges for cavity T-17A (87)

View all 87 →

Ports

Modifiers Ports ZDR, /10, /11, /15, /16, /V Ports 1 & 2: 1" Code 62; Port 3: SAE 6; ZDR/1A, /1B, /1F, /1G, /M, /Z Ports 1 & 2: 1" Code 62; Port 3: 1/4" BSPP;

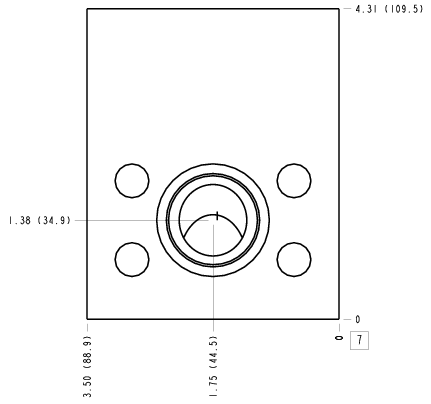

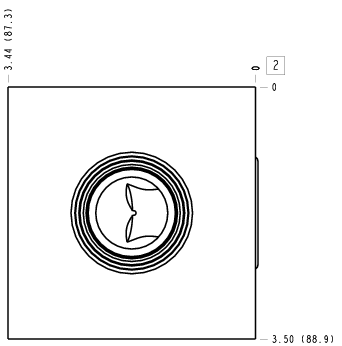

Drawings, symbol & performance curves

ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing
ZDR Sun Hydraulics Direct mount Line mount manifold drawing

Downloads

CAD files (from Sun Hydraulics)

Frequently asked questions

Is ZDR the same as ZDR/10?

Yes. Sun Hydraulics writes this part number as ZDR. It is the model ZDR followed by the configuration code; hyphens, slashes and spaces are only dividers, so ZDR, ZDR/10, ZDR/11, ZDR/15, ZDR/16, ZDR/1A, ZDR/1B, ZDR/1F, ZDR/1G, ZDR/M, ZDR/V, ZDR/Z, ZDR/S, ZDR/S3, ZDR/S4, ZDR/S5, ZDR/T, ZDR/T3, ZDR/T4, ZDR/T5, ZDR/W, ZDR/W3, ZDR/W4, ZDR/W5, ZDR/Y, ZDR/Y1, ZDR/Y3, ZDR/Y4, ZDR/Y5 all refer to the same product.

Do you supply ZDR in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including ZDR, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

Manufacturer reference: https://www.sunhydraulics.com/model/ZDR
