Z2B – Sun Hydraulics Nipple mount Line mount manifold
Part number: Z2B · Z2B/10 · Z2B/11 · Z2B/S · Z2B/S3 · Z2B/S4 · Z2B/S5
Nipple mount Line mount manifold, cavity T-163A, 3/8″ NPTF ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
Z2B overview
Z2B (Z2B/10, Z2B/11, Z2B/S, Z2B/S3) is a Sun Hydraulics Sun Hydraulics Nipple mount Line mount manifold and installed in cavity T-163A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| Z2B | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| Z2B/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| Z2B/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| Z2B/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| Z2B/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| Z2B/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| Z2B/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | 0.38 NPT |
| Body Features | Nipple mount |
| Open Cavities | 1 |
| Cavity | T-163A |
| Port Size | 3/8" NPTF |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read Z2B
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so Z2B, Z2B/10, Z2B/11, Z2B/S, Z2B/S3, Z2B/S4, Z2B/S5 are the same part.
| Model | Z2B — Sun Hydraulics Nipple mount Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. Z2B/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-163A (28)
- CAZALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAZALHN-Z2B — request assembly
- CBZALHN Sun Hydraulics 3:1 pilot ratio, counterbalance valveCBZALHN-Z2B — request assembly
- CKBBXCN Sun Hydraulics Pilot-to-open check valve with standard pilotCKBBXCN-Z2B — request assembly
- CKBDXCN Sun Hydraulics Pilot-to-open check valve with sealed pilotCKBDXCN-Z2B — request assembly
- CKBGXCN Sun Hydraulics Flush mount pilot-to-open check valve with sealed pilotCKBGXCN-Z2B — request assembly
- COBAXCN Sun Hydraulics Pilot-to-close check valveCOBAXCN-Z2B — request assembly
- COBGXCN Sun Hydraulics Pilot-to-close check valveCOBGXCN-Z2B — request assembly
- CSAXXXN Sun Hydraulics Single ball shuttle valve with signal at port 3CSAXXXN-Z2B — request assembly
- CSAZXXN Sun Hydraulics Single ball shuttle valve with signal at port 2CSAZXXN-Z2B — request assembly
- FRBAXAN Sun Hydraulics Fixed-orifice, bypass/restrictive, priority, flow control valveFRBAXAN-Z2B — request assembly
- LPBAXHN Sun Hydraulics Normally open, modulating element with pilot source from port 1LPBAXHN-Z2B — request assembly
- LPBCXHN Sun Hydraulics Normally open, modulating elementLPBCXHN-Z2B — request assembly
Ports
Modifiers Ports Z2B, /10, /11 All Ports: 3/8" NPTF;

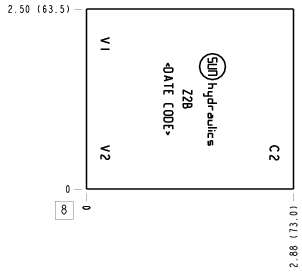

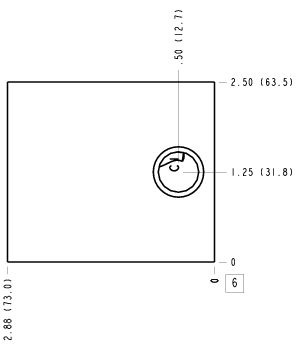

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is Z2B the same as Z2B/10?
Yes. Sun Hydraulics writes this part number as Z2B. It is the model Z2B followed by the configuration code; hyphens, slashes and spaces are only dividers, so Z2B, Z2B/10, Z2B/11, Z2B/S, Z2B/S3, Z2B/S4, Z2B/S5 all refer to the same product.
Do you supply Z2B in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including Z2B, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/Z2B
