YQC – Sun Hydraulics Four port directional circuit using logic valves, SAE pilot ports Line mount manifold
Part number: YQC · YQC/10 · YQC/11 · YQC/S · YQC/S3 · YQC/S4 · YQC/S5
Four port directional circuit using logic valves, SAE pilot ports Line mount manifold, cavity T-19A, 2″ Code 61 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
YQC overview
YQC (YQC/10, YQC/11, YQC/S, YQC/S3) is a Sun Hydraulics Sun Hydraulics Four port directional circuit using logic valves, SAE pilot ports Line mount manifold and installed in cavity T-19A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| YQC | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| YQC/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| YQC/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| YQC/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| YQC/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| YQC/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| YQC/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Four port directional circuit using logic valves, SAE pilot ports |
| Open Cavities | 5 |
| Cavity | T-19A |
| Port Size | 2" Code 61 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read YQC
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so YQC, YQC/10, YQC/11, YQC/S, YQC/S3, YQC/S4, YQC/S5 are the same part.
| Model | YQC — Sun Hydraulics Four port directional circuit using logic valves, SAE pilot ports Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. YQC/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-19A (77)
- CAIALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAIALHN-YQC — request assembly
- CAIGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAIGLGN-YQC — request assembly
- CAIKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAIKLHN-YQC — request assembly
- CAILLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAILLGN-YQC — request assembly
- CBHALHN Sun Hydraulics 3:1 pilot ratio, restrictive counterbalance valveCBHALHN-YQC — request assembly
- CBHGLJN Sun Hydraulics 4.5:1 pilot ratio, restrictive counterbalance valveCBHGLJN-YQC — request assembly
- CBIALHN Sun Hydraulics 3:1 pilot ratio, standard capacity counterbalance valveCBIALHN-YQC — request assembly
- CBIBLHN Sun Hydraulics 1.5:1 pilot ratio, standard capacity counterbalance valveCBIBLHN-YQC — request assembly
- CBIGLJN Sun Hydraulics 4.5:1 pilot ratio, standard capacity counterbalance valveCBIGLJN-YQC — request assembly
- CBIHLJN Sun Hydraulics 10:1 pilot ratio, standard capacity counterbalance valveCBIHLJN-YQC — request assembly
- CBILLJN Sun Hydraulics 2.3:1 pilot ratio, standard capacity counterbalance valveCBILLJN-YQC — request assembly
- CBIYLHN Sun Hydraulics 2:1 pilot ratio, standard capacity counterbalance valveCBIYLHN-YQC — request assembly
Ports
Modifiers Ports YQC, /10, /11 Ports A, B, P, T: 2" Code 61; Ports 1, 2, 3, 4, 5: SAE 6;

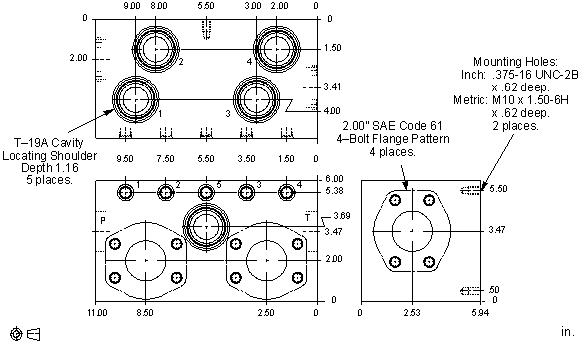

Drawings, symbol & performance curves
