XZOB-XXN – Sun Hydraulics Port 1 to 2 open, port 3 blocked cavity plug
Part number: XZOBXXN · XZOB-XXN · XZOB XXN
Port 1 to 2 open, port 3 blocked cavity plug. Cavity T-163A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
XZOB-XXN overview
XZOBXXN (XZOB-XXN, XZOB XXN) is a Sun Hydraulics Sun Hydraulics Port 1 to 2 open, port 3 blocked cavity plug and installed in cavity T-163A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| XZOBXXN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| XZOBXXN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-163A |
|---|---|
| Series | 0 |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Port Configuration | 3 Port |
| Valve Hex Size | 3/4 in. (19,1 mm) |
| Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Seal kit - Cartridge | Viton: 990163006 |
How to read XZOBXXN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XZOBXXN, XZOB-XXN, XZOB XXN are the same part.
| Model | XZOB — Sun Hydraulics Port 1 to 2 open, port 3 blocked cavity plug |
|---|---|
| Control | X — - |
| Adjustment Range | X — - |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — -
Adjustment Range options
- X — -
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-163A (53)
- J2A Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXZOBXXN-J2A — request assembly
- J2B Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXZOBXXN-J2B — request assembly
- J2H Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXZOBXXN-J2H — request assembly
- J2I Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXZOBXXN-J2I — request assembly
- J2T Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXZOBXXN-J2T — request assembly
- J2U Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXZOBXXN-J2U — request assembly
- J6A Sun Hydraulics Ninety degree with reverse flow check – sequence Line mount manifoldXZOBXXN-J6A — request assembly
- J6B Sun Hydraulics Ninety degree with reverse flow check – sequence Line mount manifoldXZOBXXN-J6B — request assembly
- J6H Sun Hydraulics Ninety degree with reverse flow check – sequence Line mount manifoldXZOBXXN-J6H — request assembly
- J6I Sun Hydraulics Ninety degree with reverse flow check – sequence Line mount manifoldXZOBXXN-J6I — request assembly
- J6T Sun Hydraulics Ninety degree with reverse flow check – sequence Line mount manifoldXZOBXXN-J6T — request assembly
- J6U Sun Hydraulics Ninety degree with reverse flow check – sequence Line mount manifoldXZOBXXN-J6U — request assembly

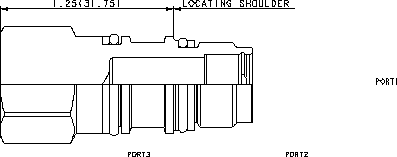

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is XZOBXXN the same as XZOB-XXN?
Yes. Sun Hydraulics writes this part number as XZOBXXN. It is the model XZOB followed by the configuration code; hyphens, slashes and spaces are only dividers, so XZOBXXN, XZOB-XXN, XZOB XXN all refer to the same product.
Do you supply XZOBXXN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XZOBXXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
