XZCC-XXN – Sun Hydraulics Flush mount, all ports blocked cavity plug
Part number: XZCCXXN · XZCC-XXN · XZCC XXN
Flush mount, all ports blocked cavity plug. Cavity T-162A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
XZCC-XXN overview
XZCCXXN (XZCC-XXN, XZCC XXN) is a Sun Hydraulics Sun Hydraulics Flush mount, all ports blocked cavity plug and installed in cavity T-162A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| XZCCXXN | Buna-N sealsBuna-N |
|---|---|
| XZCCXXV | Viton sealsViton |
| XZCCXXE | EPDM sealsEPDM |
Specifications
| Cavity | T-162A |
|---|---|
| Series | 0 |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Port Configuration | 2 Port |
| Valve Internal Hex Size | 5/16 in. (8 mm) |
| Valve Installation Torque | 20 - 25 lbf ft (27 - 33 Nm) |
| Seal kit - Cartridge | Viton: 990162006 |
How to read XZCCXXN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XZCCXXN, XZCC-XXN, XZCC XXN are the same part.
| Model | XZCC — Sun Hydraulics Flush mount, all ports blocked cavity plug |
|---|---|
| Control | X — - |
| Adjustment Range | X — - |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — -
Adjustment Range options
- X — -
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Manifold & standard assemblies
Sun manifolds for cavity T-162A (56)
- AAA Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAA — request assembly
- AAB Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAB — request assembly
- AAC Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAC — request assembly
- AAH Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAH — request assembly
- AAI Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAI — request assembly
- AAJ Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAJ — request assembly
- AAT Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAT — request assembly
- AAU Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAU — request assembly
- AAV Sun Hydraulics Ninety degree Line mount manifoldXZCCXXN-AAV — request assembly
- ABA Sun Hydraulics ISO 02: P to T Sandwich manifoldXZCCXXN-ABA — request assembly
- ABB Sun Hydraulics ISO 02: A to B and B to A Sandwich manifoldXZCCXXN-ABB — request assembly
- ABC Sun Hydraulics ISO 02: A and B to T Sandwich manifoldXZCCXXN-ABC — request assembly
Technical features
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.

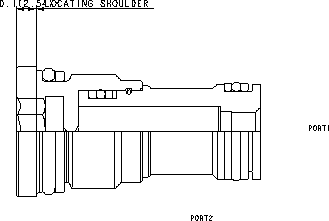

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is XZCCXXN the same as XZCC-XXN?
Yes. Sun Hydraulics writes this part number as XZCCXXN. It is the model XZCC followed by the configuration code; hyphens, slashes and spaces are only dividers, so XZCCXXN, XZCC-XXN, XZCC XXN all refer to the same product.
Do you supply XZCCXXN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XZCCXXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/XZCC
