XPOC-NXN – Sun Hydraulics T-23A cavity to T-21A cavity or T-22A cavity converter
Part number: XPOCNXN · XPOC-NXN · XPOC NXN
T-23A cavity to T-21A cavity or T-22A cavity converter. Cavity T-23A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
XPOC-NXN overview
XPOCNXN (XPOC-NXN, XPOC NXN) is a Sun Hydraulics Sun Hydraulics T-23A cavity to T-21A cavity or T-22A cavity converter and installed in cavity T-23A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| XPOCNXN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| XPOCNXN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-23A |
|---|---|
| Series | 3 |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Valve Hex Size | 1 7/8 in. (47,6 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Seal kit - Cartridge | Viton: 990023006 |
How to read XPOCNXN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XPOCNXN, XPOC-NXN, XPOC NXN are the same part.
| Model | XPOC — Sun Hydraulics T-23A cavity to T-21A cavity or T-22A cavity converter |
|---|---|
| Control | N — T-22A Cavity |
| Adjustment Range | X — - |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- M — T-21A Cavity
- N — T-22A Cavity
Adjustment Range options
- X — -
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-23A (73)
- P44 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P44 — request assembly
- P45 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P45 — request assembly
- P4D Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4D — request assembly
- P4E Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4E — request assembly
- P4F Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4F — request assembly
- P4L Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4L — request assembly
- P4M Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4M — request assembly
- P4N Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4N — request assembly
- P4P Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4P — request assembly
- P4Q Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4Q — request assembly
- P4W Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4W — request assembly
- P4X Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPOCNXN-P4X — request assembly

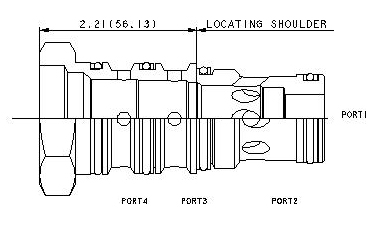

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is XPOCNXN the same as XPOC-NXN?
Yes. Sun Hydraulics writes this part number as XPOCNXN. It is the model XPOC followed by the configuration code; hyphens, slashes and spaces are only dividers, so XPOCNXN, XPOC-NXN, XPOC NXN all refer to the same product.
Do you supply XPOCNXN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XPOCNXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/XPOC
