XPJ – Sun Hydraulics Cross pilot with common port 4s Line mount manifold
Roll over image to zoom in
Part number: XPJ · XPJ/10 · XPJ/11 · XPJ/S · XPJ/S3 · XPJ/S4 · XPJ/S5
Cross pilot with common port 4s Line mount manifold, cavity T-21A, SAE 8 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
XPJ overview
XPJ (XPJ/10, XPJ/11, XPJ/S, XPJ/S3) is a Sun Hydraulics Sun Hydraulics Cross pilot with common port 4s Line mount manifold and installed in cavity T-21A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| XPJ | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| XPJ/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| XPJ/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| XPJ/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| XPJ/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| XPJ/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| XPJ/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Cross pilot with common port 4s |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 2 |
| Cavity | T-21A |
| Port Size | SAE 8 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read XPJ
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XPJ, XPJ/10, XPJ/11, XPJ/S, XPJ/S3, XPJ/S4, XPJ/S5 are the same part.
| Model | XPJ — Sun Hydraulics Cross pilot with common port 4s Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. XPJ/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-21A (62)
- CVCVXCN Sun Hydraulics Vented pilot-to-open check valveCVCVXCN-XPJ — request assembly
- CWCALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valveCWCALHN-XPJ — request assembly
- CWCGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valveCWCGLGN-XPJ — request assembly
- CWCHLGN Sun Hydraulics 10:1 pilot ratio, vented counterbalance valveCWCHLGN-XPJ — request assembly
- CWCKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valveCWCKLHN-XPJ — request assembly
- CWCLLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valveCWCLLGN-XPJ — request assembly
- DKDPLAN Sun Hydraulics Normally closed, balanced poppet, logic element – pressure adjustableDKDPLAN-XPJ — request assembly
- DKDRXHN Sun Hydraulics Normally closed, balanced poppet, logic element – vent-to-openDKDRXHN-XPJ — request assembly
- DKDR8HN Sun Hydraulics Normally closed, balanced poppet, logic element with integral T-8A control cavity – vent-to-openDKDR8HN-XPJ — request assembly
- DKDSXHN Sun Hydraulics Normally closed, balanced poppet, logic element – pilot-to-openDKDSXHN-XPJ — request assembly
- DODPLAN Sun Hydraulics Normally open, balanced poppet, logic element – pressure adjustableDODPLAN-XPJ — request assembly
- DODRXHN Sun Hydraulics Normally open, balanced poppet, logic element – vent-to-closeDODRXHN-XPJ — request assembly
Ports
Modifiers Ports XPJ, /10, /11 Ports 1A, 1B, 2A, 2B: SAE 8; Port 4: SAE 6;

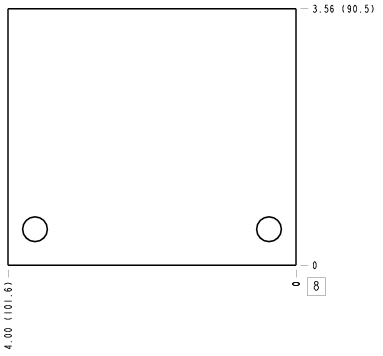

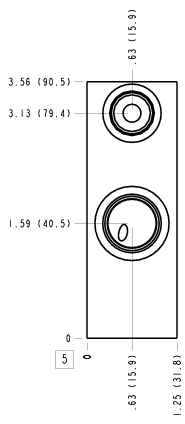

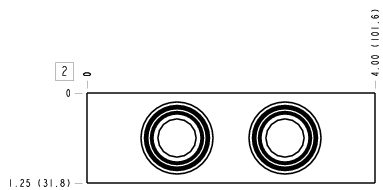

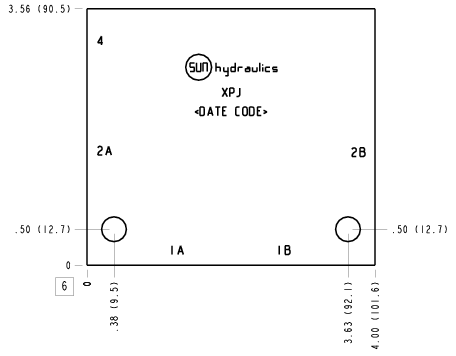

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is XPJ the same as XPJ/10?
Yes. Sun Hydraulics writes this part number as XPJ. It is the model XPJ followed by the configuration code; hyphens, slashes and spaces are only dividers, so XPJ, XPJ/10, XPJ/11, XPJ/S, XPJ/S3, XPJ/S4, XPJ/S5 all refer to the same product.
Do you supply XPJ in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XPJ, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/XPJ
