XPCA-XXN – Sun Hydraulics All ports blocked cavity plug
Roll over image to zoom in
Part number: XPCAXXN · XPCA-XXN · XPCA XXN
All ports blocked cavity plug. Cavity T-23A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
XPCA-XXN overview
XPCAXXN (XPCA-XXN, XPCA XXN) is a Sun Hydraulics Sun Hydraulics All ports blocked cavity plug and installed in cavity T-23A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| XPCAXXN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| XPCAXXN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-23A |
|---|---|
| Series | 3 |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Seal kit - Cartridge | Viton: 990023006 |
How to read XPCAXXN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XPCAXXN, XPCA-XXN, XPCA XXN are the same part.
| Model | XPCA — Sun Hydraulics All ports blocked cavity plug |
|---|---|
| Control | X — - |
| Adjustment Range | X — - |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — -
Adjustment Range options
- X — -
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-23A (73)
- P44 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P44 — request assembly
- P45 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P45 — request assembly
- P4D Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4D — request assembly
- P4E Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4E — request assembly
- P4F Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4F — request assembly
- P4L Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4L — request assembly
- P4M Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4M — request assembly
- P4N Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4N — request assembly
- P4P Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4P — request assembly
- P4Q Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4Q — request assembly
- P4W Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4W — request assembly
- P4X Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldXPCAXXN-P4X — request assembly

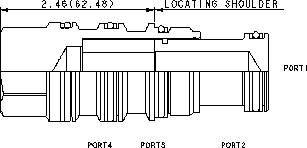

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is XPCAXXN the same as XPCA-XXN?
Yes. Sun Hydraulics writes this part number as XPCAXXN. It is the model XPCA followed by the configuration code; hyphens, slashes and spaces are only dividers, so XPCAXXN, XPCA-XXN, XPCA XXN all refer to the same product.
Do you supply XPCAXXN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XPCAXXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/XPCA
