XMOB-XXN – Sun Hydraulics All ports open cavity plug

Q: Is XMOBXXN the same as XMOB-XXN?

Yes. Sun Hydraulics writes this part number as XMOBXXN. It is the model XMOB followed by the configuration code; hyphens, slashes and spaces are only dividers, so XMOBXXN, XMOB-XXN, XMOB XXN all refer to the same product.

Brand: Sun Hydraulics
SKU: XMOB

XMOB-XXN Sun Hydraulics Cavity Plug Valve – hydraulic schematic symbol

Roll over image to zoom in

Part number: XMOBXXN · XMOB-XXN · XMOB XXN

Brand Sun HydraulicsType Cavity PlugCavity T-21A & T-61A

All ports open cavity plug. Cavity T-21A & T-61A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

SKU: XMOB Category: Cavity Plug Brand: Sun Hydraulics

XMOB-XXN overview

XMOBXXN (XMOB-XXN, XMOB XXN) is a Sun Hydraulics Sun Hydraulics All ports open cavity plug and installed in cavity T-21A & T-61A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

XMOBXXN	Buna-N sealsBuna-N
XMOBXXV	Viton sealsViton

Specifications

Cavity	T-21A & T-61A
Series	1
Maximum Operating Pressure	3000 psi (210 bar)
Valve Hex Size	7/8 in. (22,2 mm)
Valve Installation Torque	30 - 35 lbf ft (41 - 47 Nm)
Seal kit - Cartridge	Viton: 990021006

How to read XMOBXXN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XMOBXXN, XMOB-XXN, XMOB XXN are the same part.

Model	XMOB — Sun Hydraulics All ports open cavity plug
Control	X — -
Adjustment Range	X — -
Seal Material	N — Buna-N
Material / coating	Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.

Control options

X — -

Adjustment Range options

X — -

Seal Material options

N — Buna-N
V — Viton

Drawings, symbol & performance curves

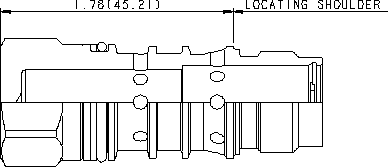

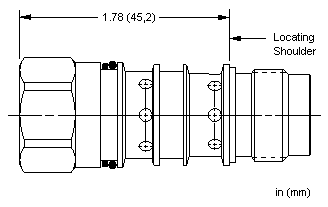

XMOBXXN Sun Hydraulics Cavity Plug Valve – 2D outline drawing — 2D outline drawing

Downloads

Datasheet

Full Datasheet (XMOB-XMOBXXN) (PDF 29 KB)

Technical reference sheets

CAD files

Frequently asked questions

Is XMOBXXN the same as XMOB-XXN?

Yes. Sun Hydraulics writes this part number as XMOBXXN. It is the model XMOB followed by the configuration code; hyphens, slashes and spaces are only dividers, so XMOBXXN, XMOB-XXN, XMOB XXN all refer to the same product.

Do you supply XMOBXXN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XMOBXXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

What parts of the Sun cartridge valve are field serviceable?

Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.

Manufacturer reference: https://www.sunhydraulics.com/model/XMOB
