XGCAE-XN – Sun Hydraulics Port 1 to external port, port 2 blocked cavity plug
Roll over image to zoom in
Part number: XGCAEXN · XGCAE-XN · XGCAE XN
Port 1 to external port, port 2 blocked cavity plug. Cavity T-13A. Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
XGCAE-XN overview
XGCAEXN (XGCAE-XN, XGCAE XN) is a Sun Hydraulics Sun Hydraulics Port 1 to external port, port 2 blocked cavity plug and installed in cavity T-13A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| XGCAEXN | Buna-N sealsBuna-N |
|---|---|
| XGCAEXV | Viton sealsViton |
| XGCAEXE | EPDM sealsEPDM |
Specifications
| Cavity | T-13A |
|---|---|
| Series | 1 |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Port Configuration | 2 Port |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Seal kit - Cartridge | Viton: 990010006 |
How to read XGCAEXN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so XGCAEXN, XGCAE-XN, XGCAE XN are the same part.
| Model | XGCAE — Sun Hydraulics Port 1 to external port, port 2 blocked cavity plug |
|---|---|
| Adjustment Range | X — - |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Adjustment Range options
- X — -
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Manifold & standard assemblies
Sun manifolds for cavity T-13A (155)
- A3C Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A3C — request assembly
- A3D Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A3D — request assembly
- A3K Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A3K — request assembly
- A3L Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A3L — request assembly
- A3V Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A3V — request assembly
- A3W Sun Hydraulics Ninety degree, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A3W — request assembly
- A4A Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A4A — request assembly
- A4B Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A4B — request assembly
- A4H Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A4H — request assembly
- A4I Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A4I — request assembly
- A4J Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A4J — request assembly
- A4T Sun Hydraulics Dual cavity, accepts standard and weatherized coils Line mount manifoldXGCAEXN-A4T — request assembly

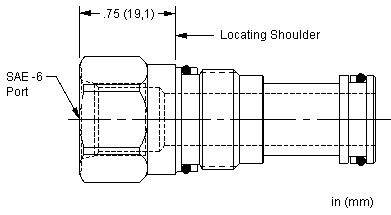

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is XGCAEXN the same as XGCAE-XN?
Yes. Sun Hydraulics writes this part number as XGCAEXN. It is the model XGCAE followed by the configuration code; hyphens, slashes and spaces are only dividers, so XGCAEXN, XGCAE-XN, XGCAE XN all refer to the same product.
Do you supply XGCAEXN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including XGCAEXN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
