X5N – Sun Hydraulics Ninety degree with reverse flow check Line mount manifold
Part number: X5N · X5N/10 · X5N/11 · X5N/15 · X5N/16 · X5N/V · X5N/S · X5N/S3 · X5N/S4 · X5N/S5 · X5N/Y · X5N/Y3 · X5N/Y4 · X5N/Y5
Ninety degree with reverse flow check Line mount manifold, cavity T-10A, 1/4″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
X5N overview
X5N (X5N/10, X5N/11, X5N/15, X5N/16) is a Sun Hydraulics Sun Hydraulics Ninety degree with reverse flow check Line mount manifold and installed in cavity T-10A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| X5N | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| X5N/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| X5N/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| X5N/15 | Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| X5N/16 | Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| X5N/V | Aluminium, Viton seals6061-T651 Aluminum, Viton |
| X5N/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| X5N/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| X5N/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| X5N/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| X5N/Y | Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil |
| X5N/Y3 | Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer |
| X5N/Y4 | Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black |
| X5N/Y5 | Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Body Features | Ninety degree with reverse flow check |
| Includes integral cartridge(s) | Yes (see Included Components) (Yes (see Included Components)) |
| Mounting Hole Diameter | .28 in. (7,1 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-10A |
| Port Size | 1/4" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read X5N
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so X5N, X5N/10, X5N/11, X5N/15, X5N/16, X5N/V, X5N/S, X5N/S3, X5N/S4, X5N/S5, X5N/Y, X5N/Y3, X5N/Y4, X5N/Y5 are the same part.
| Model | X5N — Sun Hydraulics Ninety degree with reverse flow check Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. X5N/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /V — 6061-T651 Aluminum, Viton
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
- /Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
- /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
- /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-10A (21)
- RBACLAN Sun Hydraulics Direct-acting relief valve – pilot capacityRBACLAN-X5N — request assembly
- RBDALAN Sun Hydraulics Bi-directional, direct-acting relief valveRBDALAN-X5N — request assembly
- RDDALAN Sun Hydraulics Direct-acting relief valveRDDALAN-X5N — request assembly
- RDDA3AN Sun Hydraulics Non-adjustable direct-acting relief valveRDDA3AN-X5N — request assembly
- RPECLAN Sun Hydraulics Pilot-operated, balanced piston relief valveRPECLAN-X5N — request assembly
- RPEC8WN Sun Hydraulics Pilot-operated, balanced piston relief main stage with integral T-8A control cavityRPEC8WN-X5N — request assembly
- RPEELAN Sun Hydraulics Fast-acting, pilot-operated, balanced piston relief valveRPEELAN-X5N — request assembly
- RPENLAN Sun Hydraulics Electro-proportional relief valve – high pressure setting with no command (740 Series)RPENLAN-X5N — request assembly
- RPEPXAN Sun Hydraulics Electro-proportional pilot-operated relief valve (740 Series)RPEPXAN-X5N — request assembly
- RPESLAN Sun Hydraulics Pilot-operated, balanced poppet relief valveRPESLAN-X5N — request assembly
- RPES8WN Sun Hydraulics Pilot-operated, balanced poppet relief main stage with integral T-8A control cavityRPES8WN-X5N — request assembly
- RPETLWN Sun Hydraulics Anti-Shock, pilot-operated, balanced poppet relief valveRPETLWN-X5N — request assembly
Ports
Modifiers Ports X5N, /10, /11, /15, /16, /S, /S3, /S4, /V, /Y, /Y3, /Y4 Ports 1 & 2: 1/4" BSPP; Gage Port (Plugged): 1/4" BSPP;

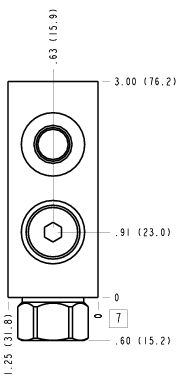

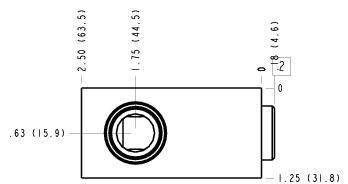

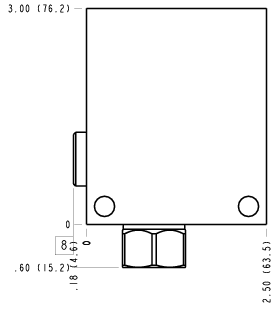

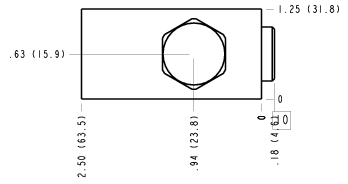

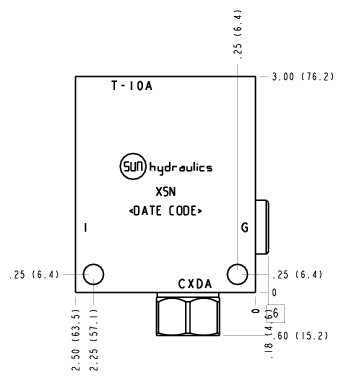

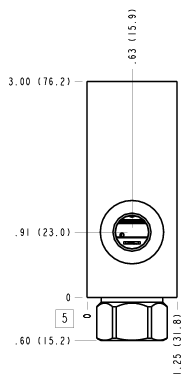

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
- X5N.prt (PRT)
- X5N.stp (STP)
- X5N_1.dwg (DWG)
- X5N_1.dxf (DXF)
- X5N_2.dwg (DWG)
- X5N_2.dxf (DXF)
- X5N_3.dwg (DWG)
- X5N_3.dxf (DXF)
- X5N_4.dwg (DWG)
- X5N_4.dxf (DXF)
- X5N_5.dwg (DWG)
- X5N_5.dxf (DXF)
- X5N_6.dwg (DWG)
- X5N_6.dxf (DXF)
- X5N_7.dwg (DWG)
- X5N_7.dxf (DXF)
- X5N_8.dwg (DWG)
- X5N_8.dxf (DXF)
- circuit.dwg (DWG)
- circuit.dxf (DXF)
Frequently asked questions
Is X5N the same as X5N/10?
Yes. Sun Hydraulics writes this part number as X5N. It is the model X5N followed by the configuration code; hyphens, slashes and spaces are only dividers, so X5N, X5N/10, X5N/11, X5N/15, X5N/16, X5N/V, X5N/S, X5N/S3, X5N/S4, X5N/S5, X5N/Y, X5N/Y3, X5N/Y4, X5N/Y5 all refer to the same product.
Do you supply X5N in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including X5N, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
Manufacturer reference: https://www.sunhydraulics.com/model/X5N
