VFD – Sun Hydraulics Direct mount Line mount manifold
Roll over image to zoom in
Part number: VFD · VFD/10 · VFD/11 · VFD/15 · VFD/16 · VFD/1A · VFD/1B · VFD/1F · VFD/1G · VFD/M · VFD/V · VFD/Z · VFD/S · VFD/S3 · VFD/S4 · VFD/S5 · VFD/T · VFD/T3 · VFD/T4 · VFD/T5 · VFD/W · VFD/W3 · VFD/W4 · VFD/W5 · VFD/Y · VFD/Y1 · VFD/Y3 · VFD/Y4 · VFD/Y5
Direct mount Line mount manifold, cavity T-19A, 2″ Code 62 ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
VFD overview
VFD (VFD/10, VFD/11, VFD/15, VFD/16) is a Sun Hydraulics Sun Hydraulics Direct mount Line mount manifold and installed in cavity T-19A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| VFD | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| VFD/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VFD/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VFD/15 | Black anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VFD/16 | Clear anodized aluminium, Viton seals6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VFD/1A | Aluminium, Metric, black anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VFD/1B | Aluminium, Metric, clear anodized, Buna-N seals6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VFD/1F | Aluminium, Metric, black anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| VFD/1G | Aluminium, Metric, clear anodized, Viton seals6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| VFD/M | Aluminium, Metric, Buna-N seals6061-T651 Aluminum, Metric, Buna-N |
| VFD/V | Aluminium, Viton seals6061-T651 Aluminum, Viton |
| VFD/Z | Aluminium, Metric, Viton seals6061-T651 Aluminum, Metric, Viton |
| VFD/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| VFD/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| VFD/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| VFD/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
| VFD/T | Ductile iron, Metric, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil |
| VFD/T3 | Ductile iron, Metric, clear zinc plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer |
| VFD/T4 | Ductile iron, Metric, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black |
| VFD/T5 | Ductile iron, Metric, electroless nickel plated, Buna-N seals65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel |
| VFD/W | Ductile iron, Metric, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil |
| VFD/W3 | Ductile iron, Metric, clear zinc plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer |
| VFD/W4 | Ductile iron, Metric, black oxide finish, Viton seals65-45-12 Ductile Iron, Metric, Viton, Chem. Black |
| VFD/W5 | Ductile iron, Metric, electroless nickel plated, Viton seals65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel |
| VFD/Y | Ductile iron, dewatering-oil finish, Viton seals65-45-12 Ductile Iron, Viton, Dewatering Oil |
| VFD/Y1 | Ductile iron, Clear Zinc Nickel with Top Sealer, Viton seals65-45-12 Ductile Iron, Viton, Clear Zinc Nickel with Top Sealer |
| VFD/Y3 | Clear zinc plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer |
| VFD/Y4 | Ductile iron, black oxide finish, Viton seals65-45-12 Ductile Iron, Viton, Chem. Black |
| VFD/Y5 | Electroless nickel plated ductile iron, Viton seals65-45-12 Ductile Iron, Viton, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | 2.00 SAE C62 |
| Body Features | Direct mount |
| Open Cavities | 1 |
| Cavity | T-19A |
| Port Size | 2" Code 62 |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read VFD
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so VFD, VFD/10, VFD/11, VFD/15, VFD/16, VFD/1A, VFD/1B, VFD/1F, VFD/1G, VFD/M, VFD/V, VFD/Z, VFD/S, VFD/S3, VFD/S4, VFD/S5, VFD/T, VFD/T3, VFD/T4, VFD/T5, VFD/W, VFD/W3, VFD/W4, VFD/W5, VFD/Y, VFD/Y1, VFD/Y3, VFD/Y4, VFD/Y5 are the same part.
| Model | VFD — Sun Hydraulics Direct mount Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. VFD/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /15 — 6061-T651 Aluminum, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /16 — 6061-T651 Aluminum, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1A — 6061-T651 Aluminum, Metric, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1B — 6061-T651 Aluminum, Metric, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /1F — 6061-T651 Aluminum, Metric, Viton, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /1G — 6061-T651 Aluminum, Metric, Viton, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /M — 6061-T651 Aluminum, Metric, Buna-N
- /V — 6061-T651 Aluminum, Viton
- /Z — 6061-T651 Aluminum, Metric, Viton
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
- /T — 65-45-12 Ductile Iron, Metric, Buna-N, Dewatering Oil
- /T3 — 65-45-12 Ductile Iron, Metric, Buna-N, Trivalent Clear Zinc with Top Sealer
- /T4 — 65-45-12 Ductile Iron, Metric, Buna-N, Chem. Black
- /T5 — 65-45-12 Ductile Iron, Metric, Buna-N, Electroless Nickel
- /W — 65-45-12 Ductile Iron, Metric, Viton, Dewatering Oil
- /W3 — 65-45-12 Ductile Iron, Metric, Viton, Trivalent Clear Zinc with Top Sealer
- /W4 — 65-45-12 Ductile Iron, Metric, Viton, Chem. Black
- /W5 — 65-45-12 Ductile Iron, Metric, Viton, Electroless Nickel
- /Y — 65-45-12 Ductile Iron, Viton, Dewatering Oil
- /Y1 — 65-45-12 Ductile Iron, Viton, Clear Zinc Nickel with Top Sealer
- /Y3 — 65-45-12 Ductile Iron, Viton, Trivalent Clear Zinc with Top Sealer
- /Y4 — 65-45-12 Ductile Iron, Viton, Chem. Black
- /Y5 — 65-45-12 Ductile Iron, Viton, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-19A (77)
- CAIALHN Sun Hydraulics 3:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAIALHN-VFD — request assembly
- CAIGLGN Sun Hydraulics 5:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAIGLGN-VFD — request assembly
- CAIKLHN Sun Hydraulics 1:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAIKLHN-VFD — request assembly
- CAILLGN Sun Hydraulics 2:1 pilot ratio, vented counterbalance valve – atmospherically referencedCAILLGN-VFD — request assembly
- CBHALHN Sun Hydraulics 3:1 pilot ratio, restrictive counterbalance valveCBHALHN-VFD — request assembly
- CBHGLJN Sun Hydraulics 4.5:1 pilot ratio, restrictive counterbalance valveCBHGLJN-VFD — request assembly
- CBIALHN Sun Hydraulics 3:1 pilot ratio, standard capacity counterbalance valveCBIALHN-VFD — request assembly
- CBIBLHN Sun Hydraulics 1.5:1 pilot ratio, standard capacity counterbalance valveCBIBLHN-VFD — request assembly
- CBIGLJN Sun Hydraulics 4.5:1 pilot ratio, standard capacity counterbalance valveCBIGLJN-VFD — request assembly
- CBIHLJN Sun Hydraulics 10:1 pilot ratio, standard capacity counterbalance valveCBIHLJN-VFD — request assembly
- CBILLJN Sun Hydraulics 2.3:1 pilot ratio, standard capacity counterbalance valveCBILLJN-VFD — request assembly
- CBIYLHN Sun Hydraulics 2:1 pilot ratio, standard capacity counterbalance valveCBIYLHN-VFD — request assembly
Ports
Modifiers Ports VFD, /10, /11, /15, /16, /V Ports 1 & 2: 2" Code 62; Ports 3A & 3B: SAE 6; VFD/1A, /1B, /1F, /1G, /M, /Z Ports 1 & 2: 2" Code 62; Ports 3A & 3B: 1/4" BSPP;

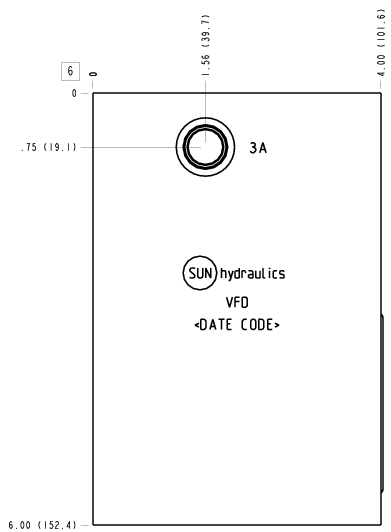

Drawings, symbol & performance curves
Downloads
CAD files (from Sun Hydraulics)
Frequently asked questions
Is VFD the same as VFD/10?
Yes. Sun Hydraulics writes this part number as VFD. It is the model VFD followed by the configuration code; hyphens, slashes and spaces are only dividers, so VFD, VFD/10, VFD/11, VFD/15, VFD/16, VFD/1A, VFD/1B, VFD/1F, VFD/1G, VFD/M, VFD/V, VFD/Z, VFD/S, VFD/S3, VFD/S4, VFD/S5, VFD/T, VFD/T3, VFD/T4, VFD/T5, VFD/W, VFD/W3, VFD/W4, VFD/W5, VFD/Y, VFD/Y1, VFD/Y3, VFD/Y4, VFD/Y5 all refer to the same product.
Do you supply VFD in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including VFD, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
