OP UNISPEED USFL 24/37 ES
UNISPEED USFL 24/37 ES allows to carry out preassembling operations of DIN2353 rings and 37° flaring of hydraulic tubes up to 42 mm in diameter and a maximum…
UNISPEED-USFL-2437-ES overview

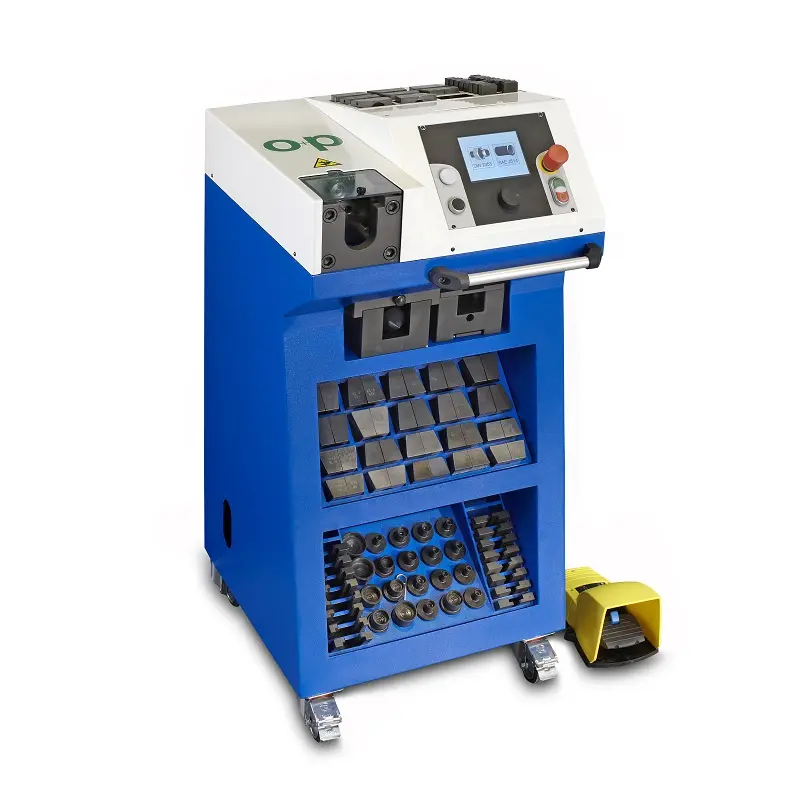

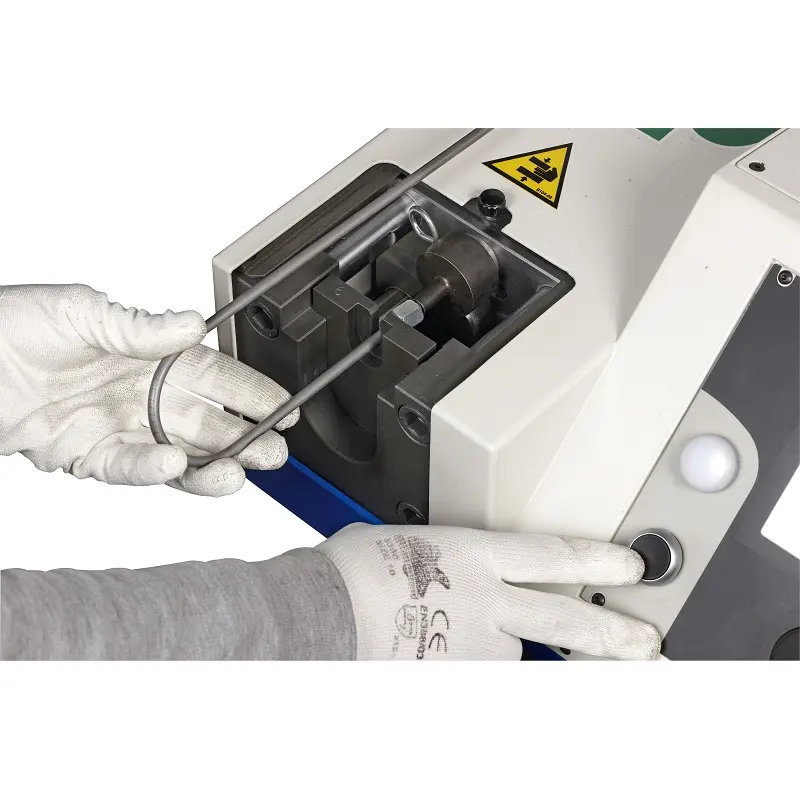

UNISPEED USFL 24/37 ES allows to carry out preassembling operations of DIN2353 rings and 37° flaring of hydraulic tubes up to 42 mm in diameter and a maximum thickness of 4 mm. The machine is equipped with a double working level: an upper level for bends up to 180° and a lower one for standard tubes. The electronic control ensures enhanced performances and makes Unispeed USFL 24/37 ES particularly suitable for volume production. Flaring tools supplied according to UNI ISO 8434-2 and DIN 3949 regulations. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| PREASSEMBLY 24° | 6 - 42x4 mm |
|---|---|
| 37° FLARING | 6 - 42x4 mm (1/4''-1'' 1/2x0.15'') |
| MATERIALS | AISI 316 TI - ST 37.4 |
| WEIGHT WITHOUT OIL | 150 KG (330 Lbs) |
| DIMENSIONS L x W x H | 585x600x1150 mm (23''x23.6''x45.2'') |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| MOTOR POWER | 1.5 Kw (2 Hp) |
| OIL (NOT INCLUDED) | 15 Lt. |
| ELECTRONIC TOUCH SCREEN CONTROL | incl. |
| TOOL HOLDER 6-18 MM | OPTIONAL |
| TOOL HOLDER 6-42 MM | OPTIONAL |
| 37° FLARING BLOCK 6-18 MM | OPTIONAL |
| 37° FLARING BLOCK 6-42 MM | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
