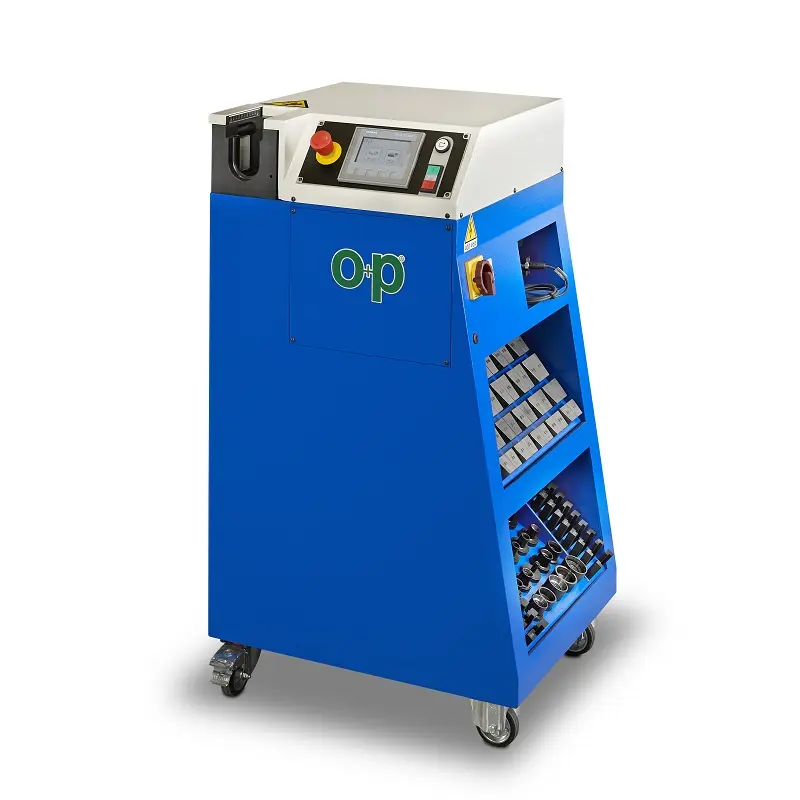

OP UNISPEED USFL/01 ES
Roll over image to zoom in
UNISPEED USFL/01 ES is the new machine for DIN2353 cutting rings preassembling and 37° JIC rigid tubes flaring up to 42 mm diameter and 4 mm thickness. Thanks…
UNISPEED-USFL01-ES overview
UNISPEED USFL/01 ES is the new machine for DIN2353 cutting rings preassembling and 37° JIC rigid tubes flaring up to 42 mm diameter and 4 mm thickness. Thanks to the new electronic control with color touch-screen display, the machine carries out an automatic identification of the tools and an automatic pressure setting for DIN2353 cutting rings preassembly and 37° JIC flaring, thus ensuring enhanced performances. This makes the USFL/01 ES particularly suitable for series production. It is possible to store recipes, which are then automatically recalled thanks to the automatic identification of the standard tools introduced into the machine. The machine is equipped with a tool-holder compartment. Flaring tools supplied according to UNI ISO 8434-2 and DIN 3949 regulations. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| 37° FLARING | 6 - 42x4 mm (1/4''-1'' 1/2x0.15'') |
|---|---|
| MATERIALS | AISI 316 TI - ST 37.4 |
| WEIGHT WITHOUT OIL | 165 KG (364 Lbs) |
| DIMENSIONS L x W x H | 692x580x1110 mm (27.2''x22.8''x43.7'') |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| MOTOR POWER | 1,8 Kw (2.5 Hp) |
| OIL (NOT INCLUDED) | 20 Lt. |
| ELECTRONIC TOUCH SCREEN CONTROL | incl. |
| TOOL HOLDER | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| 37 FLARING BLOCK | OPTIONAL |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/unispeed-usfl01-es
