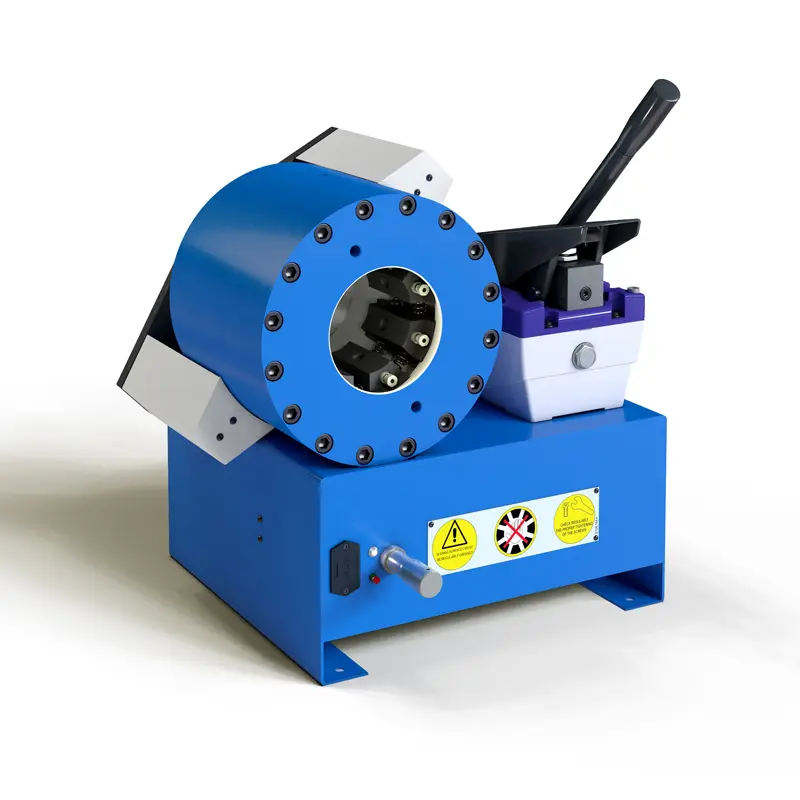

OP TUBOMATIC H83/E PI
Roll over image to zoom in
The crimper Tubomatic H83/E PI is ideal for crimping hydraulic hoses up to 1″ six spirals and up to 1″1/2 four spirals. This versatile machine can be used…
TUBOMATIC-H83E-PI overview
The crimper Tubomatic H83/E PI is ideal for crimping hydraulic hoses up to 1" six spirals and up to 1"1/2 four spirals. This versatile machine can be used for several applications. It is the perfect equipment for hydraulic hose manufacturers and assemblers. MAIN FEATURES: - ideal for crimping any type of fitting; - pneumo-hydraulic pump. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| CRIMPING FORCE | 135 TON (150 US TONS) |
|---|---|
| 6 SPIRALS 2 PIECES | 1'' |
| 4 SPIRALS 2 PIECES | 1" 1/2 |
| 4 SH 2 PIECES | 1'' 1/4 |
| MAXIMUM DIAMETER | 64 mm* (2.5'') |
| DIE OPENING | Ø + 42 mm (Ø + 1.6'') |
| 90° FITTINGS | 1'' 1/4 |
| DIMENSIONS L x W x H | 475x475x560 mm (18.7"x18.7"x22.0") |
| WEIGHT WITHOUT OIL | 82 KG (180 Lbs) |
| OIL (INCLUDED) | 3 Lt. (0.8 US Gal) |
| SINGLE-ACTING CYLINDER | incl. |
| SPECIAL DIES | OPTIONAL |
| MARKING DIES | OPTIONAL |
