OP TUBOCUT 5
TUBOCUT5 is an automatic cutting line ideal for the volume production of hose assemblies. The machine can cut hoses up to a diameter of 1” four spirals; cutting…
TUBOCUT-5 overview

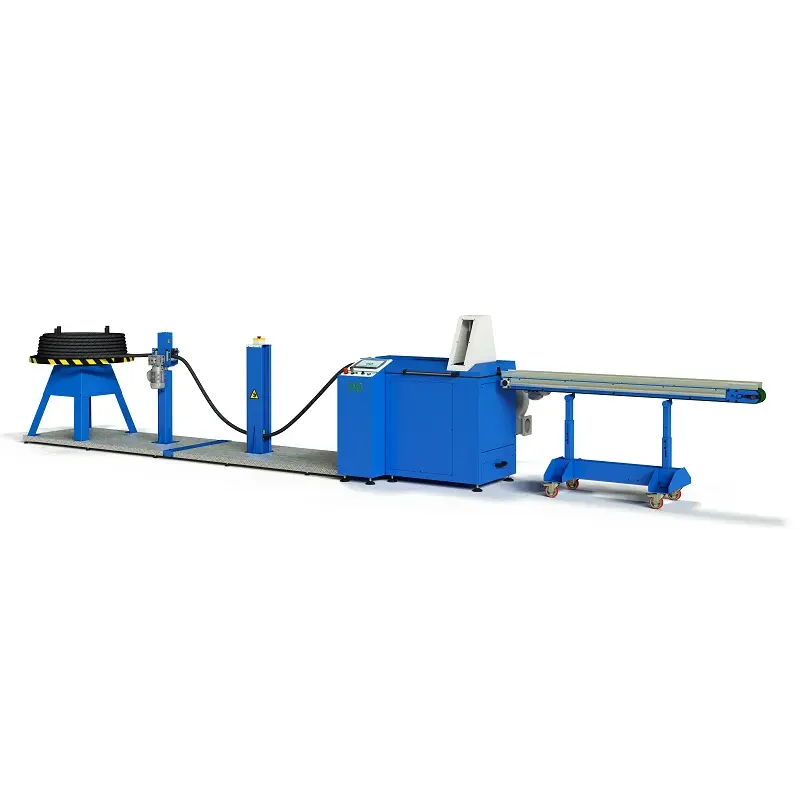

TUBOCUT5 is an automatic cutting line ideal for the volume production of hose assemblies. The machine can cut hoses up to a diameter of 1'' four spirals; cutting range goes from a minimum outside diameter of 10 mm up to 41 mm. MAIN FEATURES : - automated hose feeding; - cutting machine with PLC control with 9'' color touch-screen display; - recessed blade and guards for the operator's safety; - hose marking system; - suction pipe connection; - cleaning drawer / blade replacement. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| TUBE OD | 10-41 mm (0.3'''-1.6'') |
|---|---|
| CUTTING TOLERANCE | ± 0,5 % |
| MIN. CUTTING LENGTH | 250 mm (9.8'') |
| MAX. CUTTING LENGTH | 99999 mm (3,936.9'') |
| BELT SPEED | 15 - 30 - 40 M/MIN. |
| BLADE DIAMETER | 520 mm (20.4'') |
| REVOLUTIONS PER MINUTE | 2800 |
| MAX. REEL WEIGHT | 150 KG (330 Lbs) |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| BLADE MOTOR POWER | 5.5 kw (7.5 Hp) A=9,85 |
| TRANSMISSION BELT MOTOR POWER | 0.35 Kw (0.5 Hp) |
| SUCTION HOSE CONNECTION DIAMETER | 100 mm (3.9'') |
| PNEUMATIC POWER | MAX 6 BAR (84 psi) |
| CUTTING MACHINE WEIGHT | 450 KG |
| HOSE FEEDING SYSTEM WEIGHT | 250 KG (552 Lbs) |
| CONVEYOR BELT WEIGHT | 110 KG (240 Lbs) |
| CUTTING MACHINE DIMENSIONS L x W x H | 1450x850x1450 mm (57''x33.4''x57'') |
| WINDER DIMENSIONS L x W x H | 4150x1050x1250 mm (163.3''x41.3''x49.2'') |
| CONVEYOR BELT DIMENSIONS | 2150x500x1000 mm (84.6''x19.6''x39.3'') |
| SPECIAL VOLTAGE | OPTIONAL |
| FUME EXTRACTOR | OPTIONAL |
| HOSE MARKING SYSTEM | OPTIONAL |
| CONVEYOR BELT | OPTIONAL |
| BARCODE READER | OPTIONAL |
