OP TF2/E
Roll over image to zoom in

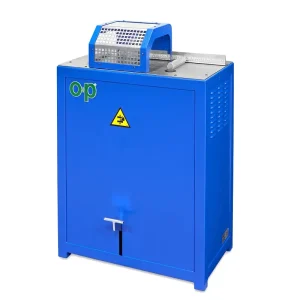

TF2/E is an inexpensive and compact cutting machine, ideal for cutting flexible hydraulic hoses up to 2″ four spirals and up to 1″ 1/2 six spirals. MAIN FEATURES:…
TF2E overview
TF2/E is an inexpensive and compact cutting machine, ideal for cutting flexible hydraulic hoses up to 2" four spirals and up to 1" 1/2 six spirals. MAIN FEATURES: - Ø 250 mm serrated blade; - manual operation; - recessed blade and guards for the operator's safety. Product specifications could be modified without prior notice.
MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| 6 SPIRALS | 1''1/2 |
|---|---|
| 4 SPIRALS | 2'' |
| 2 BRAIDS | 2'' |
| MAXIMUM DIAMETER | 75 mm (2.9'') |
| REVOLUTIONS PER MINUTE | 2900 |
| BLADE DIAMETER | 250 mm (9.8'') |
| STANDARD VOLTAGE | 400V 50HZ3PH |
| DIMENSIONS L x W x H | 650x700x420 mm (25.5''x27.5''x16.5'') |
| WEIGHT | 44 Kg (97 Lbs) |
| MOTOR POWER | 3 Kw (4 Hp) |
| SUCTION HOSE CONNECTION | incl. |
| SAFETY GUARDS | incl. |
| SPECIAL VOLTAGE | OPTIONAL |
| HOSE CENTERING DEVICE + METER COUNTER | OPTIONAL |
Videos
Downloads
Manufacturer reference: https://op-srl.it/en/products/tf2e
