OP CENTER MAXI

Brand: OP SRL
SKU: CENTER-MAXI

Roll over image to zoom in

Status:In stock

The CENTER MAXI is a mobile multifunctional unit, composed of the following machines: – bending machine C50ES, suitable for bending carbon and stainless steel tubes up to Ø…

SKU: CENTER-MAXI Category: Multi Functional Units Brand: OP SRL

CENTER-MAXI overview

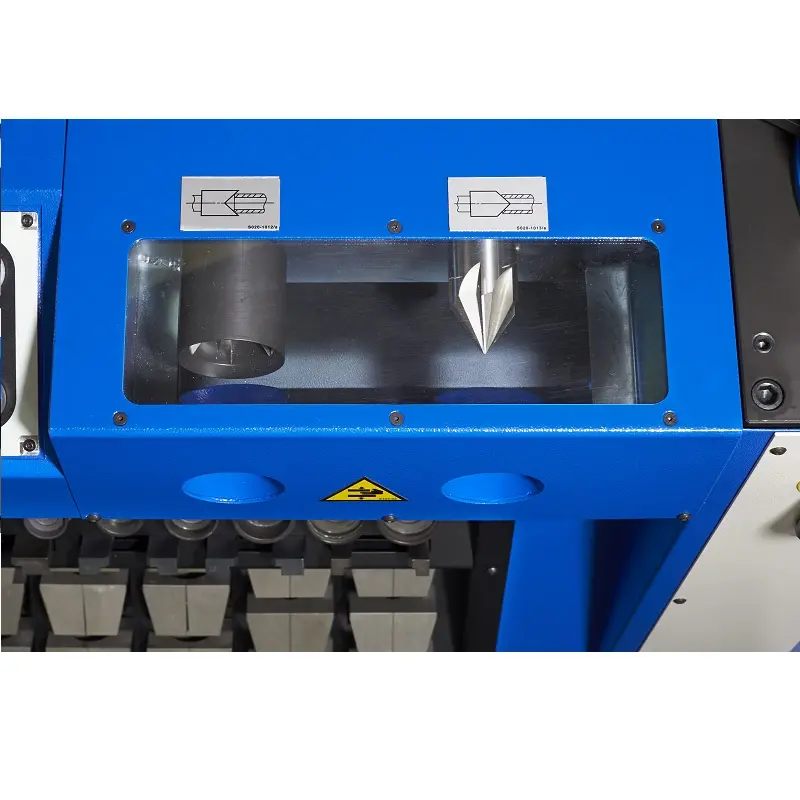

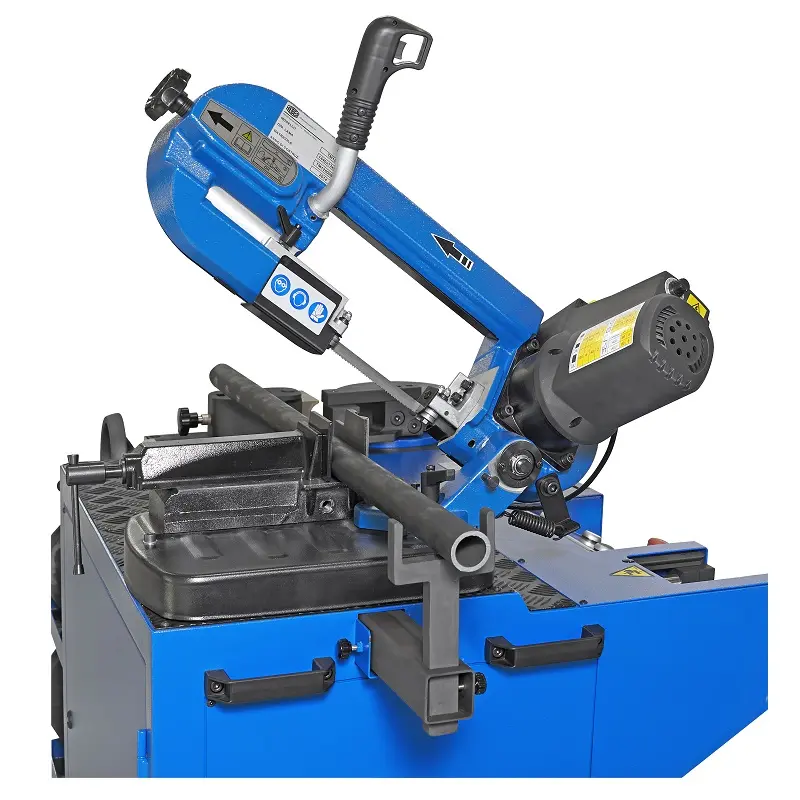

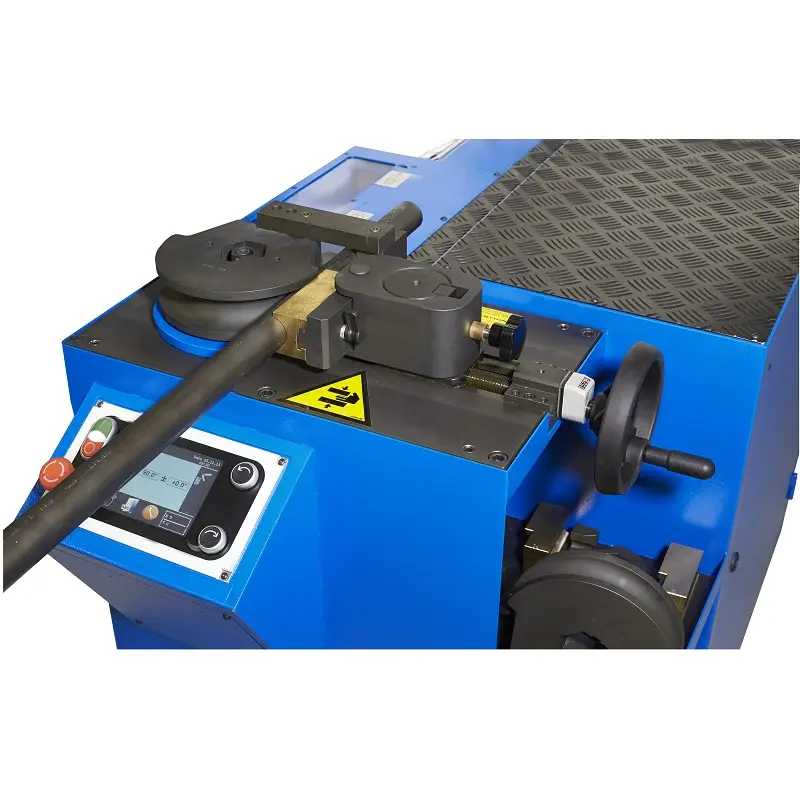

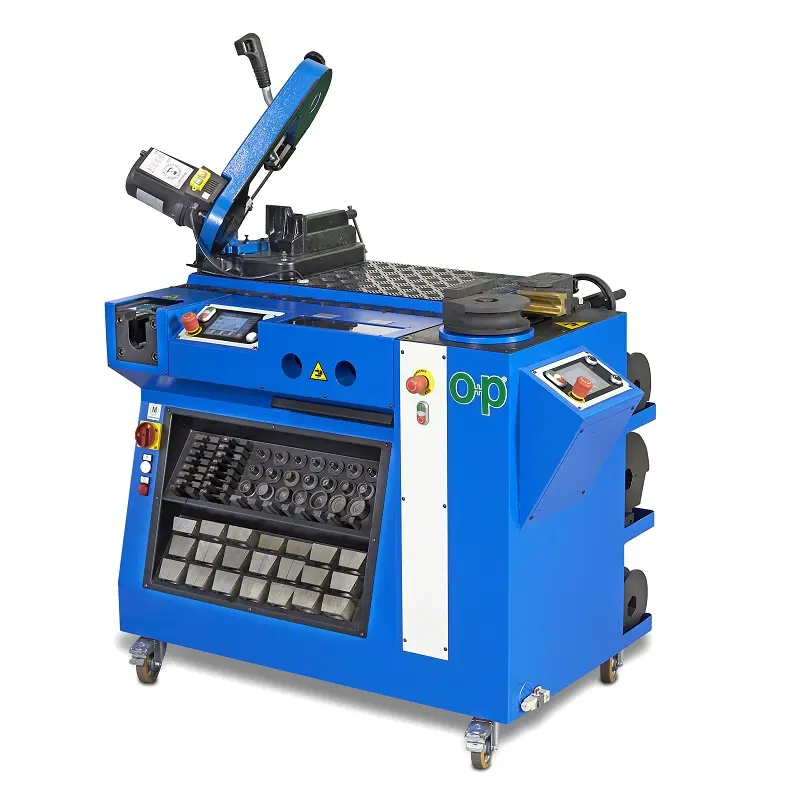

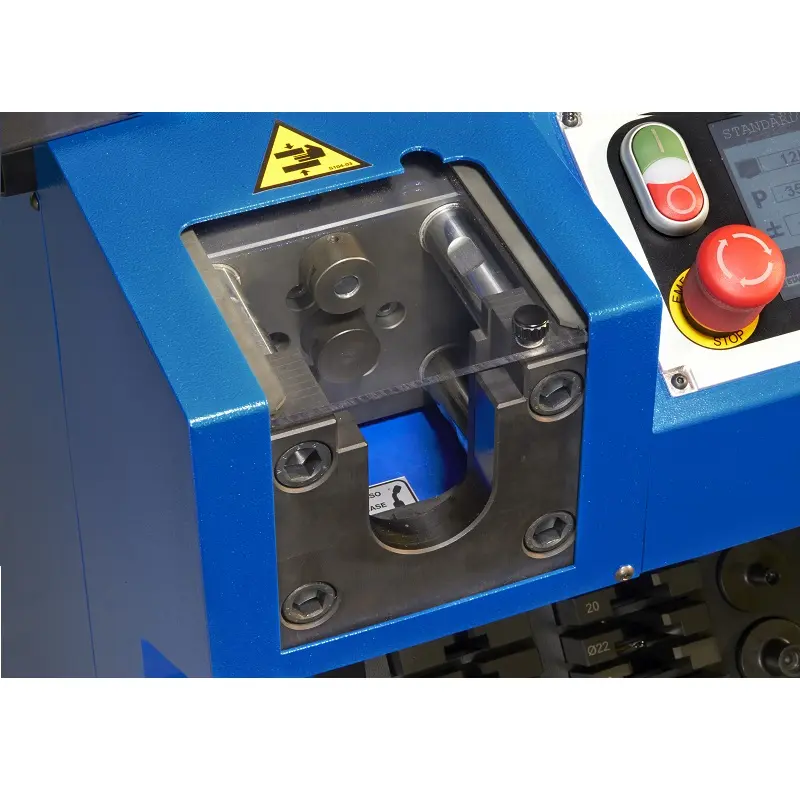

The CENTER MAXI is a mobile multifunctional unit, composed of the following machines: - bending machine C50ES, suitable for bending carbon and stainless steel tubes up to Ø 50 mm; - flaring machine Unispeed USFL 24/37ES, suitable for preassembling DIN2353 rings and 37° flaring of hydraulic tubes up to Ø 42 mm with maximum thickness of 4 mm. The machine is equipped with a double working level: an upper level for bends up to 180° and a lower one for standard tubes; - a deburring machine with Ø 6-42 mm internal and external tools; - a cutting machine with capacity up to Ø 125 mm. The electronic control ensures enhanced performance and makes the Center Maxi particularly suitable for volume production of hydraulic rigid tubes. Product specifications could be modified without prior notice.

MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.

Specifications

PREASSEMBLY 24°	6-42x4 mm (6-18 mm upper level)
37° FLARING	6-42x4 mm (1/4''-1'' 1/2x0.15'') - 6-18 mm (1/4''-5/8'') upper level
GENERIC TUBE BENDING DIAMETER	5-50 mm (1/4''-1'' 1/2)
BENDING DIAMETER AISI 316 TI	38x4 - 42x3 mm (1'' 1/4x0.15 - 1'' 1/2x0.12'')
BENDING DIAMETER ST 37.4	38x5 - 42x3 mm (1'' 1/4x0.20'' - 1'' 1/2x0.12'')
MAX BENDING ANGLE	180°
90° BENDING TIME	6 sec
CUTTING	MAX Ø 125 mm (4.9'')
DEBURRING	6-42 mm (1/4''-1'' 1/2)
MATERIALS	AISI 316 TI - ST 37.4
DIMENSIONS L x W x H	1400x800x1500 mm (55.1''x31.4''x59'')
WEIGHT WITHOUT OIL	400 KG (882 Lbs)
STANDARD VOLTAGE	400V 50HZ 3PH
MOTOR POWER	MAX 4,5 Kw (6 Hp)
OIL (NOT INCLUDED)	15 Lt.
TOOL HOLDER	incl.
ELECTRIC PEDAL	OPTIONAL
