OP C50 ES

Brand: OP SRL
SKU: C50-ES

Roll over image to zoom in

Status:In stock

C50 ES bending machine is ideal for bending 5 to 50 mm stainless steel (AISI 316 TI) and carbon steel (ST 37.4) rigid tubes. The electronic control ensures…

SKU: C50-ES Category: Bending Brand: OP SRL

C50-ES overview

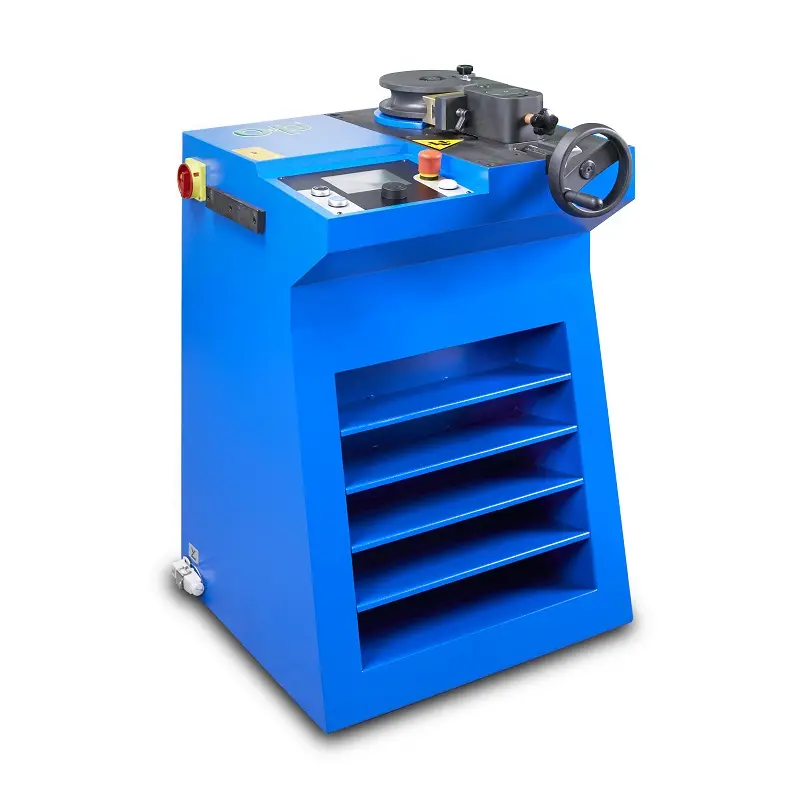

C50 ES bending machine is ideal for bending 5 to 50 mm stainless steel (AISI 316 TI) and carbon steel (ST 37.4) rigid tubes. The electronic control ensures enhanced performance and makes the C50 ES particularly suitable for volume production. The machine can be equipped with a tube driving system. Product specifications could be modified without prior notice.

MultiFlow is an authorized distributor of OP SRL products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.

Specifications

GENERIC TUBE BENDING DIAMETER	5-50 mm (1/4''-1'' 1/2)
BENDING DIAMETER AISI 316 TI	38x4 - 42x3 mm (1'' 1/4x0.15'' - 1'' 1/2x0.12'')
BENDING DIAMETER ST 37.4	38x5 -42x3 mm (1'' 1/4x0.20'' - 1'' 1/2x0.12'')
MAX BENDING ANGLE	180°
90° BENDING TIME	6 Sec.
DIMENSIONS L x W x H	620x740x950 mm (24.4''x29.1''x37.4'')
WEIGHT	175 Kg (385 Lbs)
STANDARD VOLTAGE	400V 50 HZ 3PH
MOTOR POWER	1.5 Kw (2 Hp)
SPECIAL VOLTAGE	OPTIONAL
