NMW – Sun Hydraulics Ninety degree Line mount manifold, aluminium, Buna-N seals
Part number: NMW · NMW/10 · NMW/11 · NMW/S · NMW/S3 · NMW/S4 · NMW/S5
Ninety degree Line mount manifold, cavity T-32A, 3/4″ BSPP ports. Genuine Sun Hydraulics — MultiFlow is an authorized distributor.
NMW overview
NMW (NMW/10, NMW/11, NMW/S, NMW/S3) is a Sun Hydraulics Sun Hydraulics Ninety degree Line mount manifold and installed in cavity T-32A. MultiFlow supplies genuine Sun Hydraulics manifolds in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| NMW | Aluminium, Buna-N seals6061-T651 Aluminum, Buna-N |
|---|---|
| NMW/10 | Black anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II |
| NMW/11 | Clear anodized aluminium, Buna-N seals6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I |
| NMW/S | Ductile iron, dewatering-oil finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Dewatering Oil |
| NMW/S3 | Clear zinc plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer |
| NMW/S4 | Ductile iron, black oxide finish, Buna-N seals65-45-12 Ductile Iron, Buna-N, Chem. Black |
| NMW/S5 | Electroless nickel plated ductile iron, Buna-N seals65-45-12 Ductile Iron, Buna-N, Electroless Nickel |
Specifications
| Body Type | Line mount |
|---|---|
| Interface | None |
| Body Features | Ninety degree |
| Mounting Hole Diameter | .34 in. (8.6 mm) |
| Mounting Hole Depth | Through |
| Mounting Hole Quantity | 2 |
| Open Cavities | 1 |
| Cavity | T-32A |
| Port Size | 3/4" BSPP |
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
How to read NMW
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so NMW, NMW/10, NMW/11, NMW/S, NMW/S3, NMW/S4, NMW/S5 are the same part.
| Model | NMW — Sun Hydraulics Ninety degree Line mount manifold |
|---|---|
| Modifier | Add the modifier after the model, e.g. NMW/10 = black anodized aluminium. No modifier = standard material. |
Modifier options
- — 6061-T651 Aluminum, Buna-N
- /10 — 6061-T651 Aluminum, Buna-N, Black Anodize - Per MIL SPEC 8625F Type II, Class II
- /11 — 6061-T651 Aluminum, Buna-N, Clear Anodize - Per MIL SPEC 8625F Type II, Class I
- /S — 65-45-12 Ductile Iron, Buna-N, Dewatering Oil
- /S3 — 65-45-12 Ductile Iron, Buna-N, Trivalent Clear Zinc with Top Sealer
- /S4 — 65-45-12 Ductile Iron, Buna-N, Chem. Black
- /S5 — 65-45-12 Ductile Iron, Buna-N, Electroless Nickel
Cartridges that fit this manifold
Sun cartridges for cavity T-32A (16)
- DSDDXEN Sun Hydraulics Low side, 3-position, hot oil shuttle valve with delayed shiftDSDDXEN-NMW — request assembly
- DSEHXHN Sun Hydraulics Low side, 3-position, hot oil shuttle valveDSEHXHN-NMW — request assembly
- DSEOXEN Sun Hydraulics Spring offset, 2-position, high side shuttle valveDSEOXEN-NMW — request assembly
- DSESXGN Sun Hydraulics High side, 3-position, shuttle valveDSESXGN-NMW — request assembly
- DSEXXEN Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally closedDSEXXEN-NMW — request assembly
- DSEYXEN Sun Hydraulics 3-way, 2-position, vent-to-shift diverter valve, normally openDSEYXEN-NMW — request assembly
- FSDAXAN Sun Hydraulics Closed center, flow divider-combiner valveFSDAXAN-NMW — request assembly
- FSDCXAN Sun Hydraulics High accuracy flow divider valveFSDCXAN-NMW — request assembly
- FSDDXAN Sun Hydraulics Flow divider valveFSDDXAN-NMW — request assembly
- FSDGXAN Sun Hydraulics High accuracy, closed center, flow divider-combiner valveFSDGXAN-NMW — request assembly
- FSDHXAN Sun Hydraulics High capacity, closed center, flow divider-combiner valveFSDHXAN-NMW — request assembly
- FSDRXAN Sun Hydraulics High accuracy synchronizing, flow divider-combiner valveFSDRXAN-NMW — request assembly
Ports
Modifiers Ports NMW, /10, /11, /S, /S3 All Ports: 3/4" BSPP;

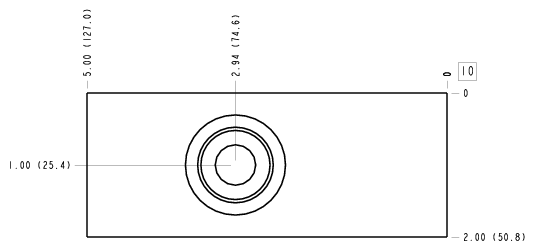

Drawings, symbol & performance curves
Downloads
Datasheet
CAD files (from Sun Hydraulics)
Frequently asked questions
Is NMW the same as NMW/10?
Yes. Sun Hydraulics writes this part number as NMW. It is the model NMW followed by the configuration code; hyphens, slashes and spaces are only dividers, so NMW, NMW/10, NMW/11, NMW/S, NMW/S3, NMW/S4, NMW/S5 all refer to the same product.
Do you supply NMW in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including NMW, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
