NEM Y5001Y14 – Boom Lowering Control Device
Roll over image to zoom in
Boom Lowering Control Device, NEM model Y5001Y14 — Steel Body G1/2” ; SAE-10. Flow up to 60 l/min. Max working pressure 410 bar.
NEM-Y5001Y14 overview
Boom Lowering Control Device, NEM model Y5001Y14 — Steel Body G1/2” ; SAE-10. Flow up to 60 l/min. Max working pressure 410 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Boom Lowering Control Device |
|---|---|
| Mounting | Steel Body G1/2” ; SAE-10 |
| Flow | 60 l/min |
| Max working pressure | 410 bar |
| Compensation | Fully Compensated with drain line A1 |
| Weight | 2,6 Kg M |
| Tamper proof cap | cod.9021030191 pos.1 |
Downloads

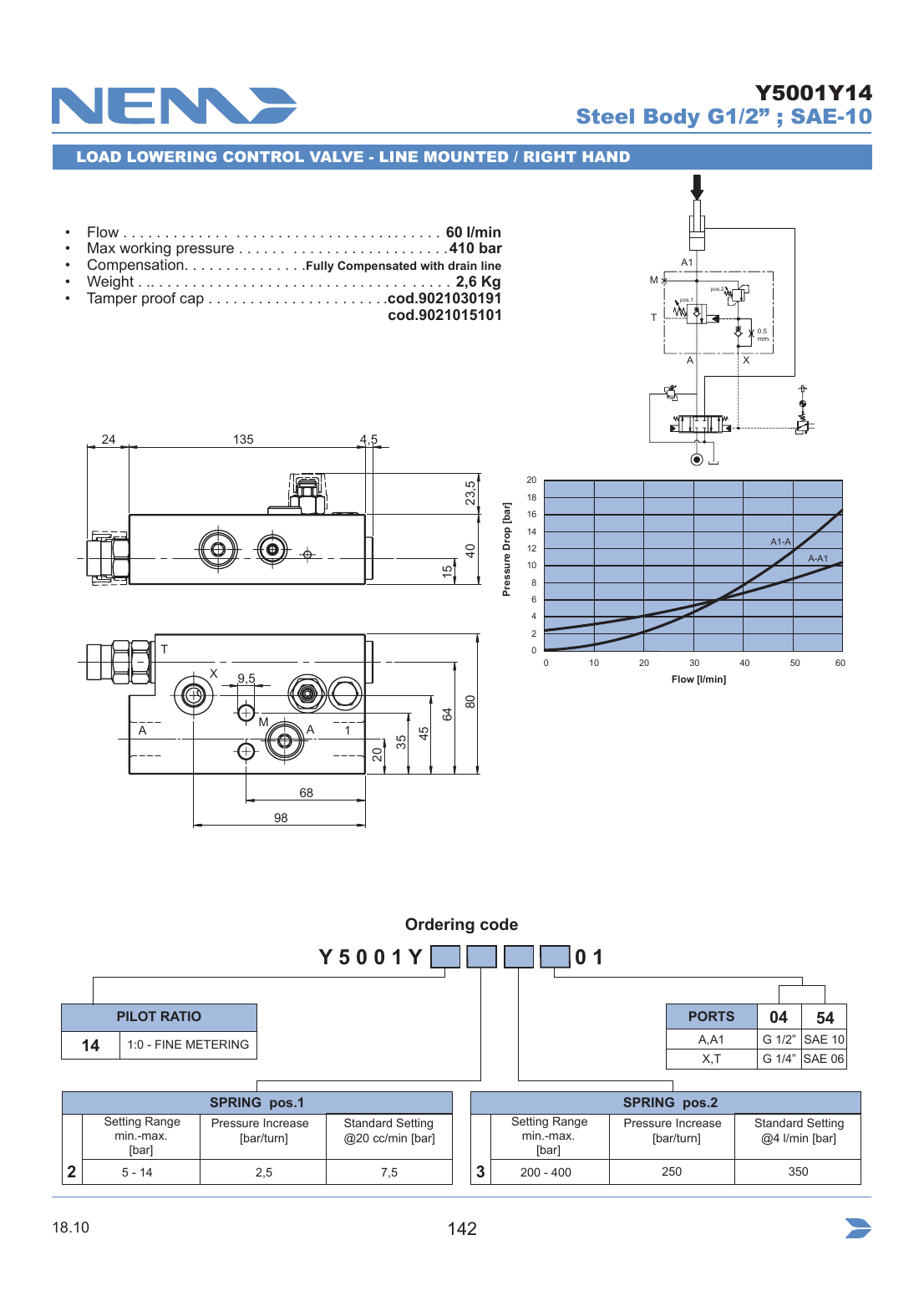

Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_partsInBody.pdf
