NEM H5005N – Single Acting Counterbalance Valve Flanged 30X30
Roll over image to zoom in
Single Acting Counterbalance Valve Flanged 30X30, NEM model H5005N — Steel Body. Flow up to 70 l/min. Max working pressure 350 bar.
NEM-H5005N overview
Single Acting Counterbalance Valve Flanged 30X30, NEM model H5005N — Steel Body. Flow up to 70 l/min. Max working pressure 350 bar.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Single Acting Counterbalance Valve Flanged 30X30 |
|---|---|
| Mounting | Steel Body |
| Flow | 70 l/min |
| Max working pressure | 350 bar |
| Compensation | Not Compensated 0.5 mm |
| Weight G 3/8” | 1,3 Kg |
| Weight G 1/2” | 1,75 Kg |
| Tamper proof cap | cod. 9021030190 A |
Downloads

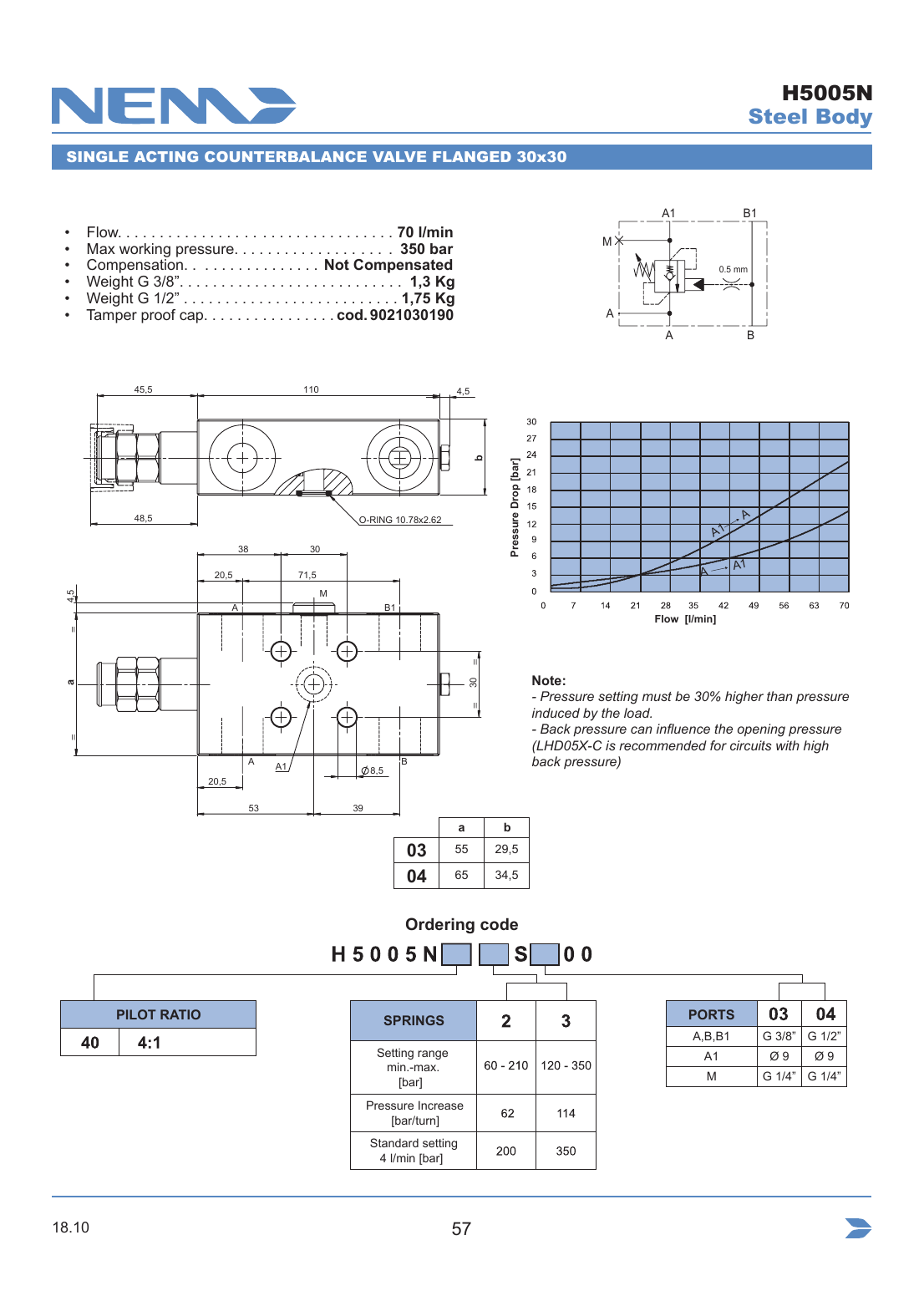

Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_partsInBody.pdf
