NEM H3005N40 – Single Acting Counterbalance Valve Flanged 28X28
Roll over image to zoom in
Single Acting Counterbalance Valve Flanged 28X28, NEM model H3005N40 — Steel Body. Flow up to 40 l/min. Max working pressure 350 bar M.
NEM-H3005N40 overview
Single Acting Counterbalance Valve Flanged 28X28, NEM model H3005N40 — Steel Body. Flow up to 40 l/min. Max working pressure 350 bar M.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Single Acting Counterbalance Valve Flanged 28X28 |
|---|---|
| Mounting | Steel Body |
| Flow | 40 l/min |
| Max working pressure | 350 bar M |
| Compensation | Not Compensated |
| Weight G 1/4” | 0,75 Kg |
| Weight G 3/8” | 1 Kg |
| Tamper proof cap | cod. 9021030190 A |
Downloads

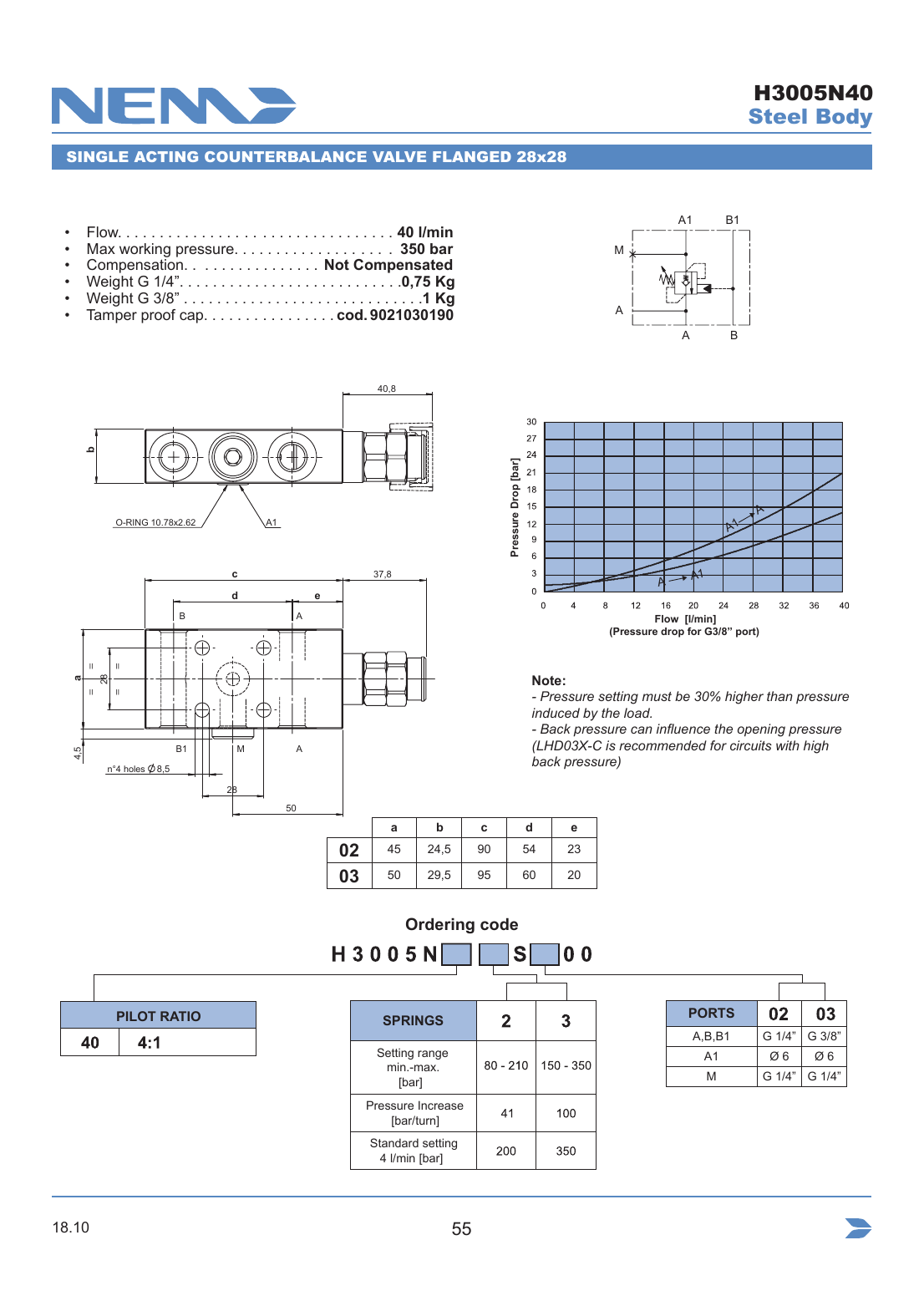

Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_partsInBody.pdf
