NEM 0404.2 – 3 Way 2 Position Electric Spool Valve, Direct Acting
Roll over image to zoom in

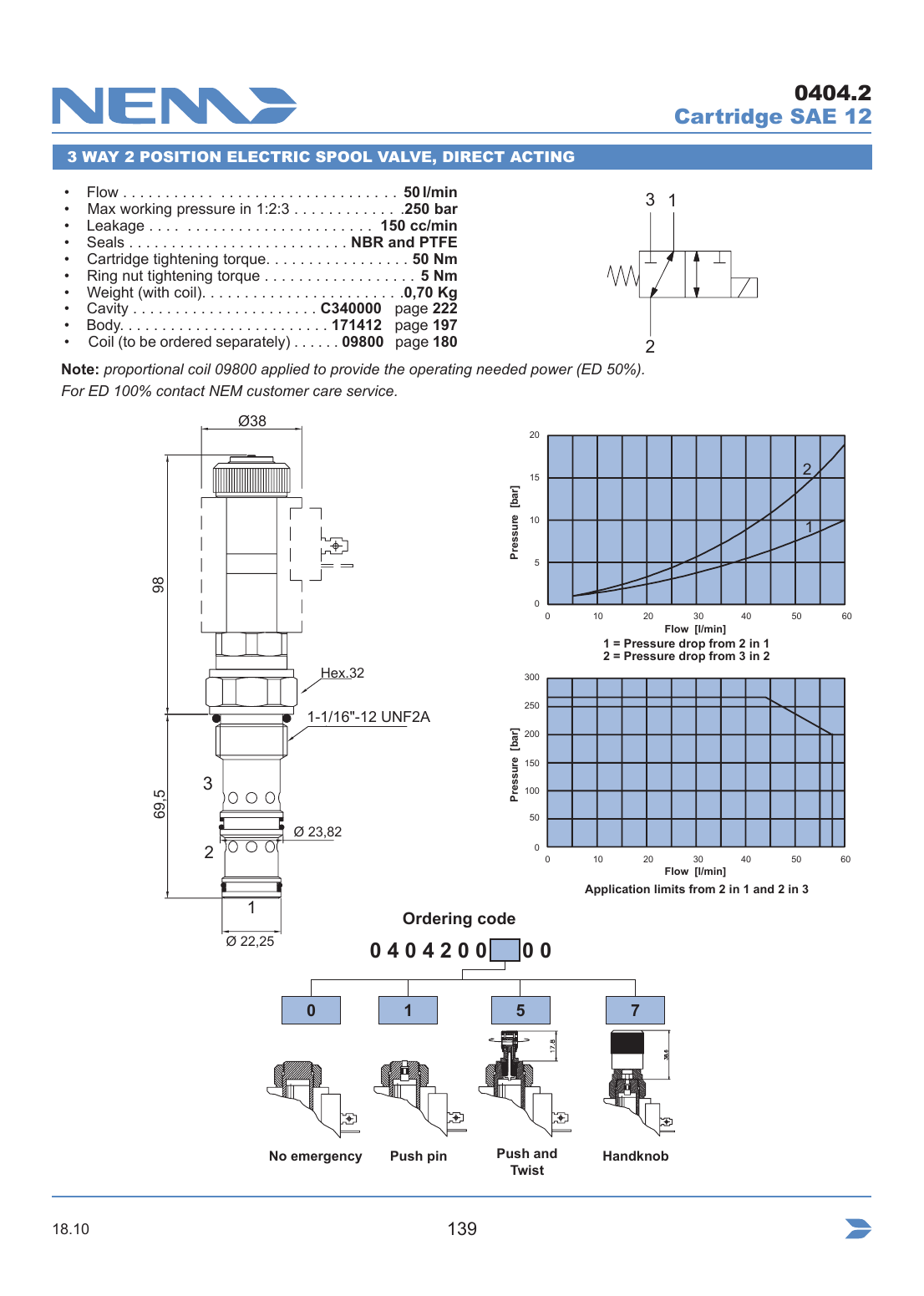

3 Way 2 Position Electric Spool Valve, Direct Acting, NEM model 0404.2 — Cartridge SAE 12. Flow up to 50 l/min.
NEM-0404.2 overview
3 Way 2 Position Electric Spool Valve, Direct Acting, NEM model 0404.2 — Cartridge SAE 12. Flow up to 50 l/min.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | 3 Way 2 Position Electric Spool Valve, Direct Acting |
|---|---|
| Mounting | Cartridge SAE 12 |
| Flow | 50 l/min |
| Max working pressure in 1:2:3 | 250 bar |
| Leakage | 150 cc/min |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 50 Nm |
| Ring nut tightening torque | 5 Nm |
| Weight (with coil) | 0,70 Kg |
| Cavity | C340000 page 222 |
| Body | 171412 page 197 |
| Coil (to be ordered separately) | 09800 page 180 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
