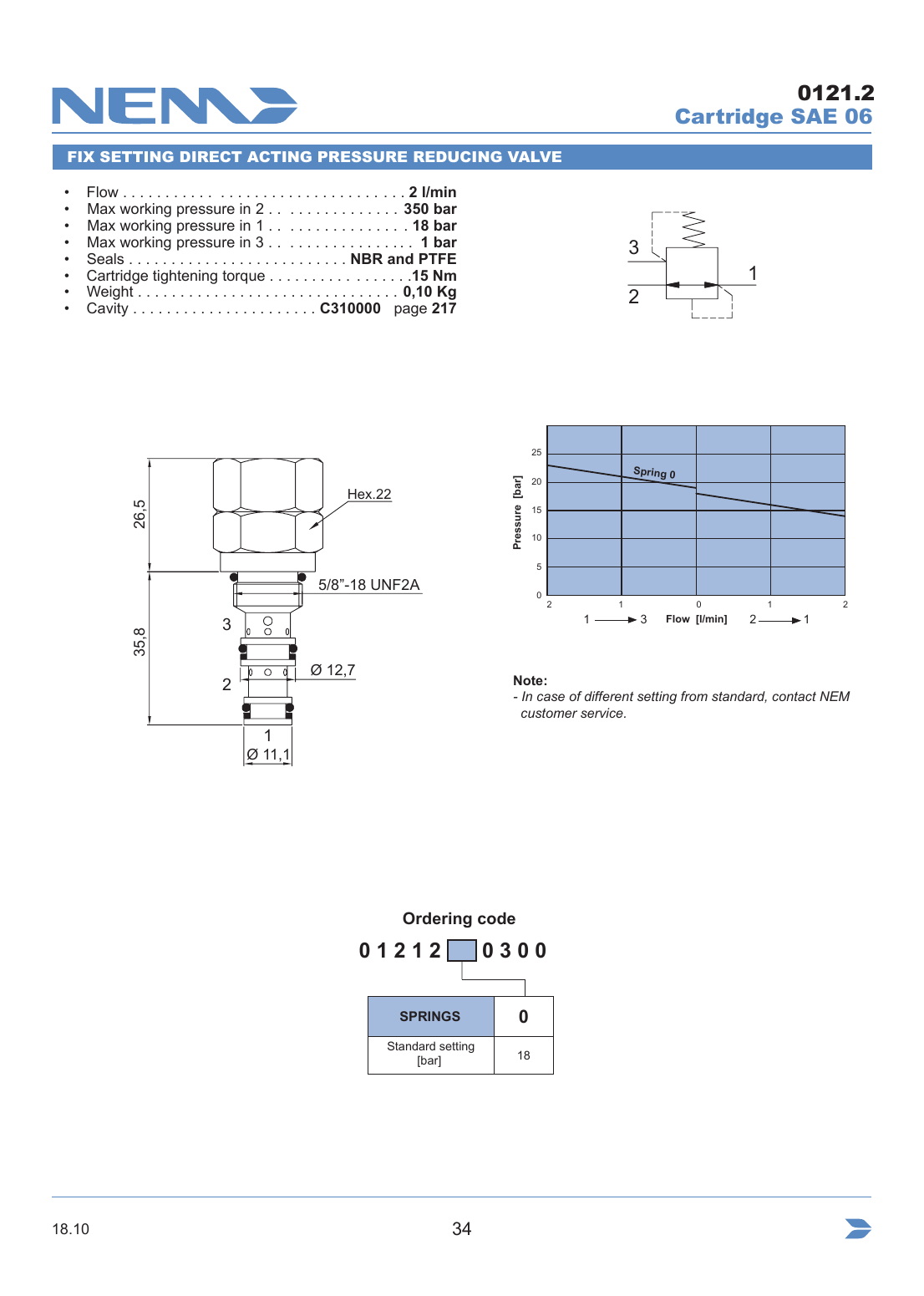

NEM 0121.2 – Fix Setting Direct Acting Pressure Reducing Valve
Roll over image to zoom in
Fix Setting Direct Acting Pressure Reducing Valve, NEM model 0121.2 — Cartridge SAE 06. Flow up to 2 l/min.
NEM-0121.2 overview
Fix Setting Direct Acting Pressure Reducing Valve, NEM model 0121.2 — Cartridge SAE 06. Flow up to 2 l/min.
MultiFlow is an authorized distributor of NEM Hydraulics products in the UAE, GCC and India. Use Add to Enquiry above for availability and a quotation.
Specifications
| Type | Fix Setting Direct Acting Pressure Reducing Valve |
|---|---|
| Mounting | Cartridge SAE 06 |
| Flow | 2 l/min |
| Max working pressure in 2 | 350 bar |
| Max working pressure in 1 | 18 bar |
| Max working pressure in 3 | 1 bar |
| Seals | NBR and PTFE |
| Cartridge tightening torque | 15 Nm |
| Weight | 0,10 Kg |
| Cavity | C310000 page 217 |
Downloads
Manufacturer reference: https://nem-hydraulics.com/dist/catalogs/catalog_cartridgeValves.pdf
