LRHA8-DN – Sun Hydraulics Normally closed, modulating element with pilot source from port 1 and integral T-8A control cavity
Roll over image to zoom in
Part number: LRHA8DN · LRHA8-DN · LRHA8 DN
Normally closed, modulating element with pilot source from port 1 and integral T-8A control cavity. Cavity T-17A, capacity 60 gpm (240 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
LRHA8-DN overview
LRHA8DN (LRHA8-DN, LRHA8 DN) is a Sun Hydraulics Sun Hydraulics Normally closed, modulating element with pilot source from port 1 and integral T-8A control cavity, rated 60 gpm (240 L/min.) and installed in cavity T-17A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LRHA8DN | Buna-N sealsBuna-N |
|---|---|
| LRHA8DV | Viton sealsViton |
Specifications
| Cavity | T-17A |
|---|---|
| Series | 3 |
| Capacity | 60 gpm (240 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Control Pilot Flow | 15 - 30 in³/min. (0,25 - 0,50 L/min.) |
| Control Orifice Diameter | .021 in. (0,53 mm) |
| Valve Hex Size | 1 1/4 in. (31,8 mm) |
| Valve Installation Torque | 150 - 160 lbf ft (203 - 217 Nm) |
| Seal kit - Cartridge | Viton: 990017006 |
How to read LRHA8DN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LRHA8DN, LRHA8-DN, LRHA8 DN are the same part.
| Model | LRHA8 — Sun Hydraulics Normally closed, modulating element with pilot source from port 1 and integral T-8A control cavity |
|---|---|
| Bias Pressure | D — 50 psi (3,5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Bias Pressure options
- D — 50 psi (3,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-17A (377)
- BJO Sun Hydraulics ISO 05 – X&Y: On P, port 3 to T Sandwich manifoldLRHA8DN-BJO — request assembly
- BK2 Sun Hydraulics ISO 07: Reducer on A with reverse flow check Sandwich manifoldLRHA8DN-BK2 — request assembly
- BK4 Sun Hydraulics ISO 07: Sequence into A with reverse flow check Sandwich manifoldLRHA8DN-BK4 — request assembly
- BK5 Sun Hydraulics ISO 07: Sequence into B with reverse flow check Sandwich manifoldLRHA8DN-BK5 — request assembly
- BK6 Sun Hydraulics ISO 07: Sequence out of A with reverse flow check Sandwich manifoldLRHA8DN-BK6 — request assembly
- BK7 Sun Hydraulics ISO 07: Sequence out of B with reverse flow check Sandwich manifoldLRHA8DN-BK7 — request assembly
- BK8 Sun Hydraulics ISO 07: Cushion lock Sandwich manifoldLRHA8DN-BK8 — request assembly
- BK9 Sun Hydraulics ISO 07: Reducer on A and B with reverse flow check Sandwich manifoldLRHA8DN-BK9 — request assembly
- BKA Sun Hydraulics ISO 07: On A, port 3 to B Sandwich manifoldLRHA8DN-BKA — request assembly
- BKB Sun Hydraulics ISO 07: On B, port 3 to A Sandwich manifoldLRHA8DN-BKB — request assembly
- BKC Sun Hydraulics ISO 07: On A, port 3 external Sandwich manifoldLRHA8DN-BKC — request assembly
- BKJ Sun Hydraulics ISO 07: Reducer on B with reverse flow check Sandwich manifoldLRHA8DN-BKJ — request assembly
Technical features
- All ports will accept 5000 psi (350 bar).
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

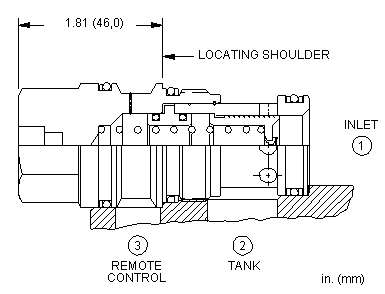

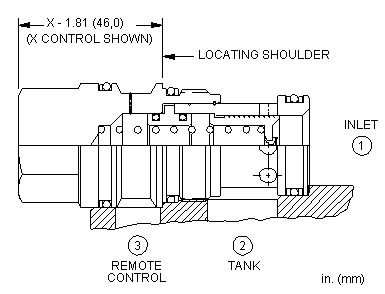

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
Frequently asked questions
Is LRHA8DN the same as LRHA8-DN?
Yes. Sun Hydraulics writes this part number as LRHA8DN. It is the model LRHA8 followed by the configuration code; hyphens, slashes and spaces are only dividers, so LRHA8DN, LRHA8-DN, LRHA8 DN all refer to the same product.
Do you supply LRHA8DN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LRHA8DN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Manufacturer reference: https://www.sunhydraulics.com/model/LRHA8
