LRFC-XHN – Sun Hydraulics Normally closed, modulating element
Roll over image to zoom in
Part number: LRFCXHN · LRFC-XHN · LRFC XHN
Normally closed, modulating element. Cavity T-2A, capacity 30 gpm (120 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
LRFC-XHN overview
LRFCXHN (LRFC-XHN, LRFC XHN) is a Sun Hydraulics Sun Hydraulics Normally closed, modulating element, rated 30 gpm (120 L/min.) and installed in cavity T-2A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LRFCXHN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| LRFCXHN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| LRFCXHN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-2A |
|---|---|
| Series | 2 |
| Capacity | 30 gpm (120 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Seal kit - Cartridge | Viton: 990202006 |
How to read LRFCXHN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LRFCXHN, LRFC-XHN, LRFC XHN are the same part.
| Model | LRFC — Sun Hydraulics Normally closed, modulating element |
|---|---|
| Control | X — Not Adjustable |
| Differential Pressure | H — 200 psi (14 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
- G — Slow Acting Pilot
Differential Pressure options
- D — 50 psi (3,5 bar)
- F — 100 psi (7 bar)
- G — 150 psi (10,5 bar)
- H — 200 psi (14 bar)
- E — 75 psi (5 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-2A (544)
- 3BC Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCXHN-3BC — request assembly
- 3BD Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCXHN-3BD — request assembly
- 3BK Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCXHN-3BK — request assembly
- 3BL Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCXHN-3BL — request assembly
- 3BV Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCXHN-3BV — request assembly
- 3BW Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCXHN-3BW — request assembly
- 4BC Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCXHN-4BC — request assembly
- 4BD Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCXHN-4BD — request assembly
- 4BK Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCXHN-4BK — request assembly
- 4BL Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCXHN-4BL — request assembly
- 4BV Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCXHN-4BV — request assembly
- 4BW Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCXHN-4BW — request assembly
Technical features
- All ports will accept 5000 psi (350 bar).
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

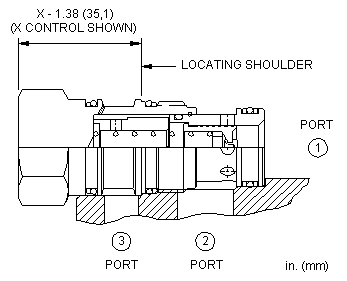

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is LRFCXHN the same as LRFC-XHN?
Yes. Sun Hydraulics writes this part number as LRFCXHN. It is the model LRFC followed by the configuration code; hyphens, slashes and spaces are only dividers, so LRFCXHN, LRFC-XHN, LRFC XHN all refer to the same product.
Do you supply LRFCXHN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LRFCXHN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable. Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
