LRFCL-DN – Sun Hydraulics Tuneable, normally closed, modulating element
Part number: LRFCLDN · LRFCL-DN · LRFCL DN
Tuneable, normally closed, modulating element. Cavity T-2A, capacity 30 gpm (120 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

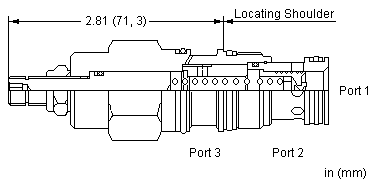

LRFCL-DN overview
LRFCLDN (LRFCL-DN, LRFCL DN) is a Sun Hydraulics Sun Hydraulics Tuneable, normally closed, modulating element, rated 30 gpm (120 L/min.) and installed in cavity T-2A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LRFCLDN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| LRFCLDN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| LRFCLDN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-2A |
|---|---|
| Series | 2 |
| Capacity | 30 gpm (120 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Valve Hex Size | 1 1/8 in. (28,6 mm) |
| Valve Installation Torque | 45 - 50 lbf ft (61 - 68 Nm) |
| Seal kit - Cartridge | Viton: 990202006 |
How to read LRFCLDN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LRFCLDN, LRFCL-DN, LRFCL DN are the same part.
| Model | LRFCL — Sun Hydraulics Tuneable, normally closed, modulating element |
|---|---|
| Differential Pressure | D — 50 psi (3,5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Differential Pressure options
- D — 50 psi (3,5 bar)
- F — 100 psi (7 bar)
- E — 75 psi (5 bar)
Seal Material options
- N — Buna-N
- V — Viton
- E — EPDM
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-2A (544)
- 3BC Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCLDN-3BC — request assembly
- 3BD Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCLDN-3BD — request assembly
- 3BK Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCLDN-3BK — request assembly
- 3BL Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCLDN-3BL — request assembly
- 3BV Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCLDN-3BV — request assembly
- 3BW Sun Hydraulics Cushion lock with shuttle Line mount manifoldLRFCLDN-3BW — request assembly
- 4BC Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCLDN-4BC — request assembly
- 4BD Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCLDN-4BD — request assembly
- 4BK Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCLDN-4BK — request assembly
- 4BL Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCLDN-4BL — request assembly
- 4BV Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCLDN-4BV — request assembly
- 4BW Sun Hydraulics Cushion lock with make up checks Line mount manifoldLRFCLDN-4BW — request assembly
Technical features
- A tuning adjustment (models configured with an L control) is available to vary the pressure drop across the compensator to increase/decrease flow within +/-25% of setting.
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is LRFCLDN the same as LRFCL-DN?
Yes. Sun Hydraulics writes this part number as LRFCLDN. It is the model LRFCL followed by the configuration code; hyphens, slashes and spaces are only dividers, so LRFCLDN, LRFCL-DN, LRFCL DN all refer to the same product.
Do you supply LRFCLDN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LRFCLDN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What parts of the Sun cartridge valve are field serviceable?
Manufacturer reference: https://www.sunhydraulics.com/model/LRFCL
