LPDS-XHN – Sun Hydraulics Normally open modulating element with shuttle
Part number: LPDSXHN · LPDS-XHN · LPDS XHN
Normally open modulating element with shuttle. Cavity T-21A, capacity 15 gpm (60 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
LPDS-XHN overview
LPDSXHN (LPDS-XHN, LPDS XHN) is a Sun Hydraulics Sun Hydraulics Normally open modulating element with shuttle, rated 15 gpm (60 L/min.) and installed in cavity T-21A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LPDSXHN | Buna-N sealsBuna-N |
|---|---|
| LPDSXHV | Viton sealsViton |
Specifications
| Cavity | T-21A |
|---|---|
| Series | 1 |
| Capacity | 15 gpm (60 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Nominal Compensating Pressure | 200 psi (14 bar) |
| Valve Hex Size | 7/8 in. (22,2 mm) |
| Valve Installation Torque | 30 - 35 lbf ft (41 - 47 Nm) |
| Seal kit - Cartridge | Viton: 990021006 |
How to read LPDSXHN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LPDSXHN, LPDS-XHN, LPDS XHN are the same part.
| Model | LPDS — Sun Hydraulics Normally open modulating element with shuttle |
|---|---|
| Control | X — Not Adjustable |
| Differential Pressure | H — 200 psi (14 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
Differential Pressure options
- H — 200 psi (14 bar)
Seal Material options
- N — Buna-N
- V — Viton
Manifold & standard assemblies
Sun manifolds for cavity T-21A (54)
- M4A Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4A — request assembly
- M4B Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4B — request assembly
- M4C Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4C — request assembly
- M4I Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4I — request assembly
- M4J Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4J — request assembly
- M4K Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4K — request assembly
- M4T Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4T — request assembly
- M4U Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4U — request assembly
- M4V Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLPDSXHN-M4V — request assembly
- MAA Sun Hydraulics Ninety degree Line mount manifoldLPDSXHN-MAA — request assembly
- MAB Sun Hydraulics Ninety degree Line mount manifoldLPDSXHN-MAB — request assembly
- MAC Sun Hydraulics Ninety degree Line mount manifoldLPDSXHN-MAC — request assembly
Technical features
- The shuttle features hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball shuttle allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- All ports will accept 5000 psi (350 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

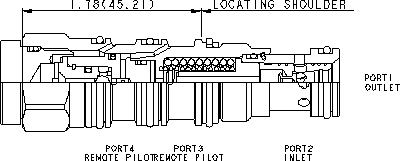

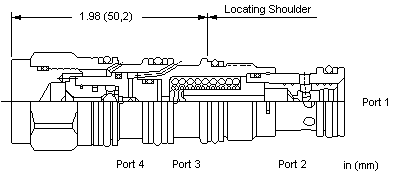

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is LPDSXHN the same as LPDS-XHN?
Yes. Sun Hydraulics writes this part number as LPDSXHN. It is the model LPDS followed by the configuration code; hyphens, slashes and spaces are only dividers, so LPDSXHN, LPDS-XHN, LPDS XHN all refer to the same product.
Do you supply LPDSXHN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LPDSXHN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
