LOKC-XDN – Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element

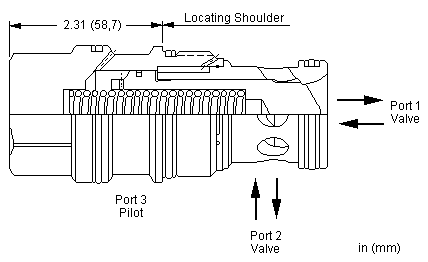

LOKC-XDN Sun Hydraulics Logic Element Valve – installation dimensions drawing, cavity T-19AU
LOKC-XDN Sun Hydraulics Logic Element Valve – hydraulic schematic symbol
LOKC-XDN Sun Hydraulics Logic Element Valve – hydraulic schematic symbol
LOKC-XDN Sun Hydraulics Logic Element Valve – performance curve (pressure drop vs flow)
LOKC-XDN Sun Hydraulics Logic Element Valve – performance curve (pressure drop vs flow)
LOKCXDN Sun Hydraulics Logic Element Valve – 2D outline drawing
Roll over image to zoom in
Click to open expanded view

Part number: LOKCXDN · LOKC-XDN · LOKC XDN

Brand Sun HydraulicsType Logic ElementCapacity 300 gpm (1100 L/min.)Cavity T-19AU

Pilot-to-close, spring-biased closed, unbalanced poppet logic element. Cavity T-19AU, capacity 300 gpm (1100 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.

Clear
SKU: LOKC Category: Brand:

LOKC-XDN overview

LOKCXDN (LOKC-XDN, LOKC XDN) is a Sun Hydraulics Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element, rated 300 gpm (1100 L/min.) and installed in cavity T-19AU. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.

Ordering codes

Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.

LOKCXDN/AP Stainless Steel, PassivatedStainless Steel, Passivated
LOKCXDN/LH Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel
LOKCXDN Standard Material/CoatingStandard Material/Coating

Specifications

CavityT-19AU
Series4
Capacity300 gpm (1100 L/min.)
Maximum Operating Pressure5000 psi (350 bar)
Maximum Valve Leakage at 110 SUS (24 cSt)10 drops/min. (0,7 cc/min.)
Pilot Volume Displacement.47 in³ (7,7 cc)
Pilot Passage into Valve.09 in. (2,3 mm)
Area Ratio, A3 to A11.8:1
Area Ratio, A3 to A22.25:1
Valve Hex Size1 5/8 in. (41,3 mm)
Valve Installation Torque350 - 375 lbf ft (474 - 508 Nm)
Seal kit - CartridgeViton: 990019006

How to read LOKCXDN

Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LOKCXDN, LOKC-XDN, LOKC XDN are the same part.

ModelLOKC — Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element
ControlX — Not Adjustable
Cracking PressureD — 50 psi (3,5 bar)
Seal MaterialN — Buna-N
Material / coatingAdd /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish.
Control options
  • X — Not Adjustable
Cracking Pressure options
  • D — 50 psi (3,5 bar)
  • X — No Spring 0 psi (0 bar)
Seal Material options
  • N — Buna-N
  • V — Viton
  • E — EPDM
Material/coating options
  • /AP — Stainless Steel, Passivated
  • /LH — Mild Steel, Zinc-Nickel
  • — Standard Material/Coating

Manifold & standard assemblies

Sun manifolds for cavity T-19AU (20)

View all 20 →

Technical features

  • These valves will work in Sun's standard T-19A cavity at lower capacity. To realize the full stated capacity, the T-19AU cavity should be used.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • These valves have positive seals between port 2 and the pilot area.
  • Because these valves are unbalanced, operation is pressure dependent. Opening and closing of the poppet are functions of the force balances on three areas: Port 1 = 100%, Port 2 = 80%, and the Pilot Area = 180%.
  • These valves are pressure responsive at all ports, therefore it is essential to consider all aspects of system operation through a complete cycle. Pressure changes at any one port may cause a valve to switch from a closed to an open position, or vice versa. All possible pressure changes in the complete circuit must be considered to assure a safe, functional system design.
  • Pilot port 3 requires a controlled pressure. A blocked port 3 may result in pressure intensification due to the floating design of the sleeve.
  • All ports will accept 5000 psi (350 bar).
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Drawings, symbol & performance curves

LOKC-XDN Sun Hydraulics Logic Element Valve – hydraulic schematic symbol
hydraulic schematic symbol
LOKC-XDN Sun Hydraulics Logic Element Valve – hydraulic schematic symbol
hydraulic schematic symbol

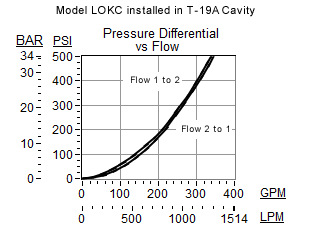

LOKC-XDN Sun Hydraulics Logic Element Valve – performance curve (pressure drop vs flow)
performance curve (pressure drop vs flow)

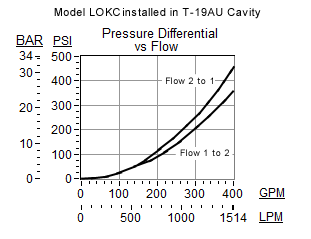

LOKC-XDN Sun Hydraulics Logic Element Valve – performance curve (pressure drop vs flow)
performance curve (pressure drop vs flow)

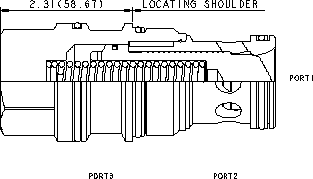

LOKCXDN Sun Hydraulics Logic Element Valve – 2D outline drawing
2D outline drawing

Downloads

Datasheet

Technical reference sheets

CAD files

Frequently asked questions

Is LOKCXDN the same as LOKC-XDN?

Yes. Sun Hydraulics writes this part number as LOKCXDN. It is the model LOKC followed by the configuration code; hyphens, slashes and spaces are only dividers, so LOKCXDN, LOKC-XDN, LOKC XDN all refer to the same product.

Do you supply LOKCXDN in the UAE, GCC and India?

Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LOKCXDN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.

Can I get the datasheet and CAD files?

Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.

How big is a drop of hydraulic oil?

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Direct acting or pilot operated - what do I use?

Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.

I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?

Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.

What parts of the Sun cartridge valve are field serviceable?
Only external seals are serviceable.  Sun offers replacement seal kits for all cartridge models. The applicable kit part number can be found in the product page's Technical Data table or by using our Cartridge Seal Kit search function located under Accessories. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
