LOJC-XDN – Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element
Part number: LOJCXDN · LOJC-XDN · LOJC XDN
Pilot-to-close, spring-biased closed, unbalanced poppet logic element. Cavity T-19A, capacity 200 gpm (760 L/min.). Genuine Sun Hydraulics cartridge — MultiFlow is an authorized distributor.
LOJC-XDN overview
LOJCXDN (LOJC-XDN, LOJC XDN) is a Sun Hydraulics Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element, rated 200 gpm (760 L/min.) and installed in cavity T-19A. MultiFlow supplies genuine Sun Hydraulics cartridges in the UAE, GCC and India — use Add to Enquiry above for availability and a quotation.
Ordering codes
Pick the code that matches the material and finish you need. Add it to your enquiry above, or tap a code to select it.
| LOJCXDN/AP | Stainless Steel, PassivatedStainless Steel, Passivated |
|---|---|
| LOJCXDN/LH | Mild Steel, Zinc-NickelMild Steel, Zinc-Nickel |
| LOJCXDN | Standard Material/CoatingStandard Material/Coating |
Specifications
| Cavity | T-19A |
|---|---|
| Series | 4 |
| Capacity | 200 gpm (760 L/min.) |
| Maximum Operating Pressure | 5000 psi (350 bar) |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min. (0,7 cc/min.) |
| Pilot Volume Displacement | .42 in³ (6,9 cc) |
| Pilot Passage into Valve | .09 in. (2,3 mm) |
| Area Ratio, A3 to A1 | 1.8:1 |
| Area Ratio, A3 to A2 | 2.25:1 |
| Valve Hex Size | 1 5/8 in. (41,3 mm) |
| Valve Installation Torque | 350 - 375 lbf ft (474 - 508 Nm) |
| Seal kit - Cartridge | Viton: 990019006 |
How to read LOJCXDN
Sun part numbers are the model followed by one code per option. Hyphens, slashes and spaces are only dividers, so LOJCXDN, LOJC-XDN, LOJC XDN are the same part.
| Model | LOJC — Sun Hydraulics Pilot-to-close, spring-biased closed, unbalanced poppet logic element |
|---|---|
| Control | X — Not Adjustable |
| Cracking Pressure | D — 50 psi (3,5 bar) |
| Seal Material | N — Buna-N |
| Material / coating | Add /AP (stainless steel, passivated) or /LH (mild steel, zinc-nickel) to the end; no suffix is the standard finish. |
Control options
- X — Not Adjustable
- E — External 4-SAE Pilot Port, Port 3 Blocked
- P — External 1/4 NPTF Pilot Port, Port 3 Blocked
Cracking Pressure options
- D — 50 psi (3,5 bar)
Seal Material options
- N — Buna-N
- V — Viton
Material/coating options
- /AP — Stainless Steel, Passivated
- /LH — Mild Steel, Zinc-Nickel
- — Standard Material/Coating
Manifold & standard assemblies
Sun manifolds for cavity T-19A (186)
- BKL Sun Hydraulics ISO 07: On A, port 3 to B Sandwich manifoldLOJCXDN-BKL — request assembly
- BKM Sun Hydraulics ISO 07: On B, port 3 to A Sandwich manifoldLOJCXDN-BKM — request assembly
- BKN Sun Hydraulics ISO 07: On A and B with cross pilot Sandwich manifoldLOJCXDN-BKN — request assembly
- BKO Sun Hydraulics ISO 07: On P, port 3 to T Sandwich manifoldLOJCXDN-BKO — request assembly
- K25 Sun Hydraulics Ninety degree with reverse flow check Line mount manifoldLOJCXDN-K25 — request assembly
- K26 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K26 — request assembly
- K28 Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K28 — request assembly
- K2D Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K2D — request assembly
- K2E Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K2E — request assembly
- K2F Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K2F — request assembly
- K2L Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K2L — request assembly
- K2M Sun Hydraulics Ninety degree with reverse flow check – reducing Line mount manifoldLOJCXDN-K2M — request assembly
Technical features
- These valves have positive seals between port 2 and the pilot area.
- Because these valves are unbalanced, operation is pressure dependent. Opening and closing of the poppet are functions of the force balances on three areas: Port 1 = 100%, Port 2 = 80%, and the Pilot Area = 180%.
- These valves are pressure responsive at all ports, therefore it is essential to consider all aspects of system operation through a complete cycle. Pressure changes at any one port may cause a valve to switch from a closed to an open position, or vice versa. All possible pressure changes in the complete circuit must be considered to assure a safe, functional system design.
- Pilot port 3 requires a controlled pressure. A blocked port 3 may result in pressure intensification due to the floating design of the sleeve.
- All ports will accept 5000 psi (350 bar).
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

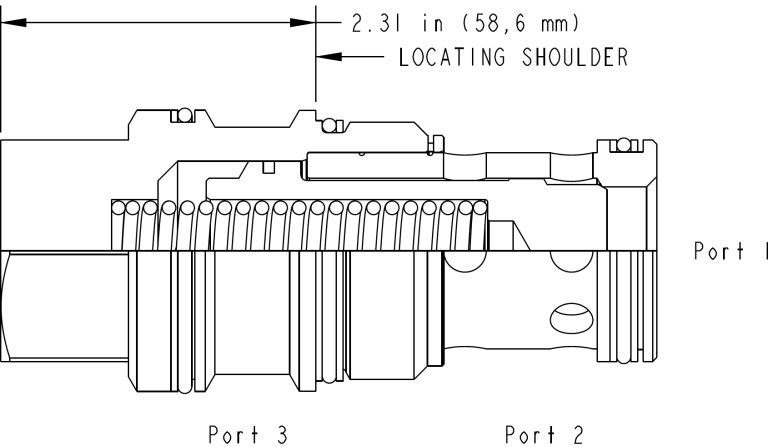

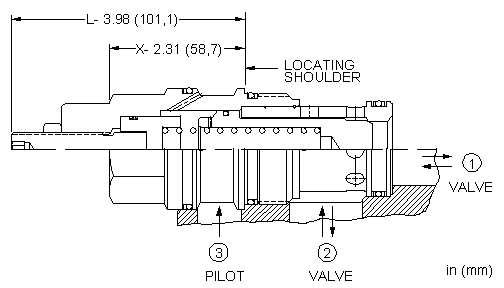

Drawings, symbol & performance curves
Downloads
Datasheet
Technical reference sheets
CAD files
Frequently asked questions
Is LOJCXDN the same as LOJC-XDN?
Yes. Sun Hydraulics writes this part number as LOJCXDN. It is the model LOJC followed by the configuration code; hyphens, slashes and spaces are only dividers, so LOJCXDN, LOJC-XDN, LOJC XDN all refer to the same product.
Do you supply LOJCXDN in the UAE, GCC and India?
Yes. MultiFlow supplies genuine Sun Hydraulics cartridges, including LOJCXDN, to customers in the UAE, the wider GCC and India. Use Add to Enquiry on this page for availability, lead time and a quotation.
Can I get the datasheet and CAD files?
Yes. The datasheet, technical reference sheets and CAD files (DXF, DWG, STP) are listed in the Downloads section of this page.
How big is a drop of hydraulic oil?
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Direct acting or pilot operated - what do I use?
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
I need to discharge a large accumulator. How can I increase the capacity of my discharge circuit?
Because of the very high ratio, the COFO has limited capacity. The discharge path is across a .050 inch (1,3 mm) diameter orifice. If you have large accumulators combined with low precharge pressures, this may not discharge the energy quickly enough. Using the COFO XDN cartridge in conjunction with an LODA XDN will provide capacity for larger applications.
What parts of the Sun cartridge valve are field serviceable?
